Window mounting parts for BMW 1 Series F21 125d (2015)

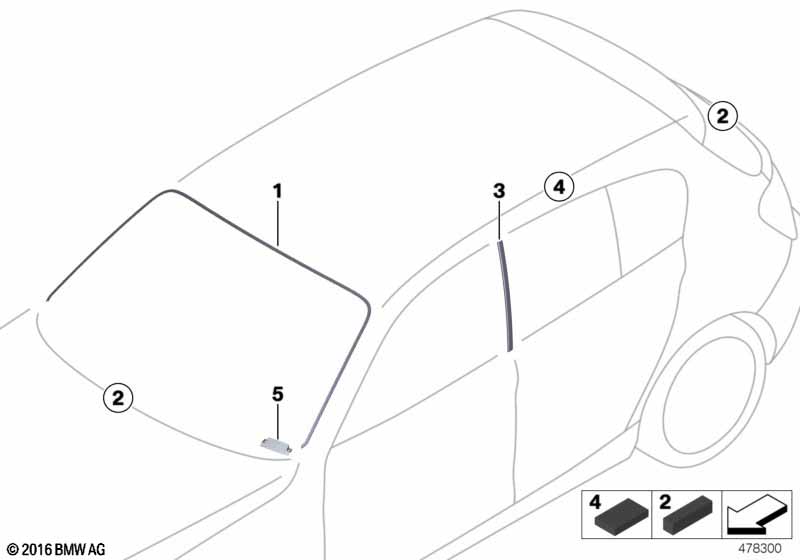

This Window mounting parts technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 125d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, windshield | 1 | 51317240671 | +core | Shop at ECS Tuning | |||||
| 02 | Bump stop | 5 | 51317288462 | Shop at ECS Tuning | ||||||
| 02 | Bump stop | 6MM | 2 | 51317465724 | Shop at ECS Tuning | |||||
| 03 | Left B-column covering | 1 | 51377453311 | Shop at ECS Tuning | ||||||
| 03 | Right B-column covering | 1 | 51377453312 | Shop at ECS Tuning | ||||||
| 04 | Hook&loop fastener | 6 | 51377164933 | $0.57 | Shop at ECS Tuning | |||||
| 05 | Holder for vehicle identification number | 1 | 51487221921 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F21 125d Window mounting parts?
- This technical diagram illustrates the Window mounting parts within the Vehicle trim group for the 1 Series F21 125d produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Cover, windshield (Part #51317240671).
- Which models use the hardware listed in this Window mounting parts?
- The hardware and components featured in the Window mounting parts are specific to the 1 Series F21 125d produced during 2015. These technical specifications ensure that parts like the Cover, windshield (51317240671) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Window mounting parts assembly?
- Each item in the Window mounting parts corresponds to the numbered list below the illustration. For the 1 Series F21 125d, you can identify the Cover, windshield by locating its position on the schematic, which then links to the official BMW part number 51317240671 for the Vehicle trim section.
