Armrest, centre console for BMW 2 Series F23 220i (2016)

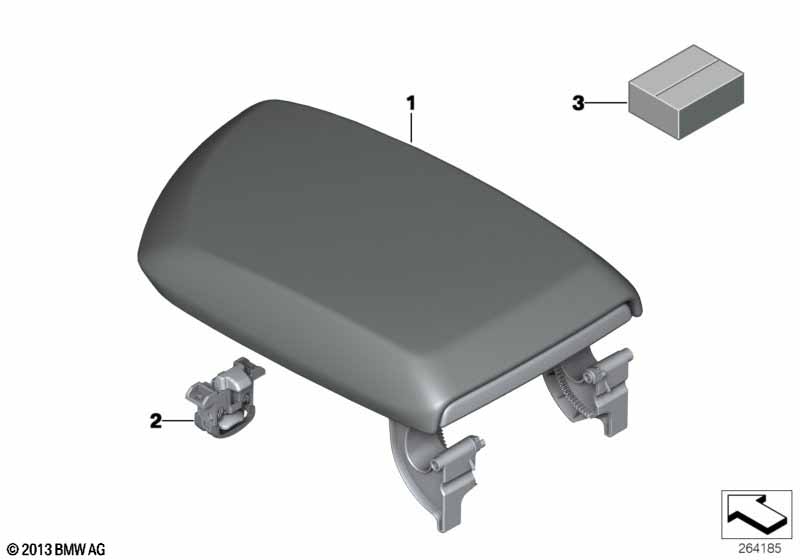

This Armrest, centre console technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 220i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Armrest front, retractable |
S4AEA=Yes |
||||||||
| 01 | Center arm rest, imitation leather | SCHWARZ | 1 | 51169230136 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/everest-grau/akzent-schw. |
LCL4=Yes |
|||||||||
| 01 | Center arm rest, leather | EVERESTGRAU | 1 | 51169285127 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 01 | Center arm rest, leather | KORALLROT | 1 | 51169285126 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/terra |
LCB8=Yes |
|||||||||
| 01 | Center arm rest, leather | TERRA | 1 | 51169288951 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster/oyster" or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark |
LCDH=Yes LCL9=Yes LCOM=Yes |
|||||||||
| 01 | Center arm rest, leather | OYSTER | 1 | 51169285125 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/akzent-rot or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
LCL3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Center arm rest, leather | SCHWARZ | 1 | 51169285124 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sport manufacture and Fabric/Leather Breeze/oyster/oyster or Fabric/leather Breeze/oyster/black or Sensatec/oyster or Sensatec/oyster/oyster |
S9MLA=No CBDH=Yes CBOP=Yes KCCX=Yes KCDH=Yes |
|||||||||
| 01 | Center arm rest, imitation leather | OYSTER | 1 | 51169304755 | NoS | Shop at ECS Tuning | ||||
| 02 | Centre arm rest lock | 1 | 51169232069 | Shop at ECS Tuning | ||||||
| For vehicles with Sport manufacture |
S9MLA=No |
|||||||||
| 03 | Set, retaining elements, center armrest | 1 | 51169252682 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
