Door trim, rear for BMW 1 Series F20 118d (2015)

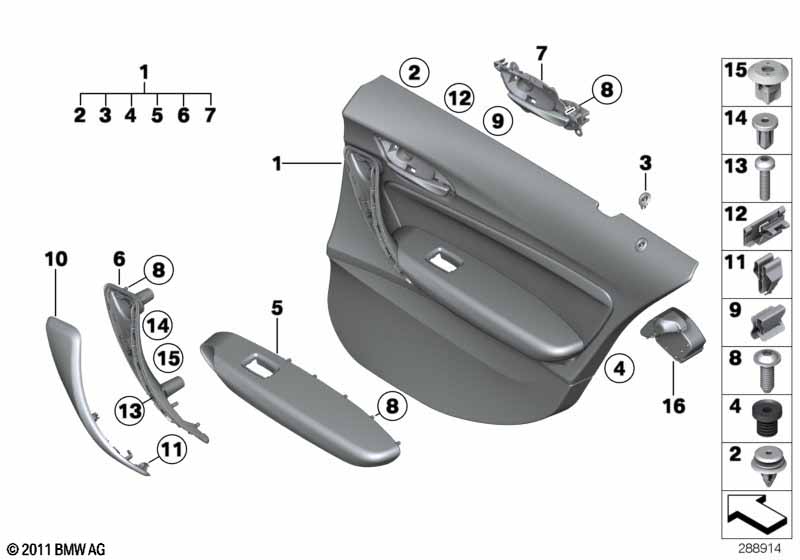

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Door trim panels always have an cutout for door entry light. The cutout must be covered with a blind cover, if necessary. Select a suitable blind cover on picture panel 51 50 518757. |
|||||||||
| For vehicles with Storage compartment package and Sensatec/black |
S493A=Yes KCSW=Yes |
|||||||||
| 01 | Door lining vynil rear left | SCHWARZ | 1 | 51427325477 | Shop at ECS Tuning | |||||
| 01 | Door lining vynil rear right | SCHWARZ | 1 | 51427325478 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Fabric/Leather Metro/petrol/black |
S493A=Yes CALK=Yes |
|||||||||
| 01 | Door lining cloth rear left | PETROL/SCHWARZ | 1 | 51427284023 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | PETROL/SCHWARZ | 1 | 51427284024 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Fabric Track/anthracite/akzent-grau |
S493A=Yes BEL1=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT/GRAU | 1 | 51427284021 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | ANTHRAZIT/GRAU | 1 | 51427284022 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather "Dakota/oyster" |
S493A=Yes LCCX=Yes |
|||||||||
| 01 | Door lining leather rear left | OYSTER | 1 | 51427392387 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | OYSTER | 1 | 51427392388 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Fabric Track/anthracite/akzent-rot |
S493A=Yes BEL2=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT/ROT | 1 | 51427284019 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | ANTHRAZIT/ROT | 1 | 51427284020 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric Move/anthracite |
S493A=Yes BDAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51427292859 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51427292860 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather "Dakota/oyster" |
S493A=No LCCX=Yes |
|||||||||
| 01 | Door lining leather rear left | OYSTER | 1 | 51427392385 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | OYSTER | 1 | 51427392386 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Leather Dakota/perl-grau/akzent-schwarz |
S493A=Yes LCL7=Yes |
|||||||||
| 01 | Door lining leather rear left | PERLGRAU/GRAU | 1 | 51427284039 | Shop at ECS Tuning | |||||
| 01 | Door lining leather rear right | PERLGRAU/GRAU | 1 | 51427284040 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Leather Dakota/black/akzent-rot |
S493A=Yes LCL3=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ/ROT | 1 | 51427284033 | Shop at ECS Tuning | |||||
| 01 | Door lining leather rear right | SCHWARZ/ROT | 1 | 51427284034 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather "Dakota"/schwarz |
S493A=No LCSW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427274747 | Shop at ECS Tuning | |||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 51427274748 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/black/akzent-rot |
S493A=No LCL3=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ/ROT | 1 | 51427278493 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | SCHWARZ/ROT | 1 | 51427278494 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric Move/anthracite |
S493A=No BDAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51427274503 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51427274504 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/korall-rot/akzent-schwarz |
S493A=Yes LCL5=Yes |
|||||||||
| 01 | Door lining leather rear left | KORALLROT/SW | 1 | 51427284031 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | KORALLROT/SW | 1 | 51427284032 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Sensatec/black |
S493A=No KCSW=Yes |
|||||||||
| 01 | Door lining vynil rear left | SCHWARZ | 1 | 51427325475 | Shop at ECS Tuning | |||||
| 01 | Door lining vynil rear right | SCHWARZ | 1 | 51427325476 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/everest-grau/akzent-schw. |
S493A=No LCL4=Yes |
|||||||||
| 01 | Door lining leather rear left | GRAU/GRAPHIT | 1 | 51427278495 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | GRAU/GRAPHIT | 1 | 51427278496 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/korall-rot/akzent-schwarz |
S493A=No LCL5=Yes |
|||||||||
| 01 | Door lining leather rear left | KORALLROT/SW | 1 | 51427278497 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | KORALLROT/SW | 1 | 51427278498 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Fabric/Leather Metro/petrol/black |
S493A=No CALK=Yes |
|||||||||
| 01 | Door lining cloth rear left | PETROL/SCHWARZ | 1 | 51427283975 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | PETROL/SCHWARZ | 1 | 51427283976 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Cloth Hexagon/Alcantara/anthracite |
S493A=No HAAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51428054917 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51428054918 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather "Dakota"/schwarz |
S493A=Yes LCSW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427284027 | Shop at ECS Tuning | |||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 51427284028 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather "Dakota/oyster/oyster" |
S493A=Yes LCDH=Yes |
|||||||||
| 01 | Door lining leather rear left | OYSTER | 1 | 51427284029 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | OYSTER | 1 | 51427284030 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric Track/anthracite/akzent-rot |
S493A=No BEL2=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT/ROT | 1 | 51427283971 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | ANTHRAZIT/ROT | 1 | 51427283972 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Cloth Hexagon/Alcantara/anthracite |
S493A=Yes HAAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51428054919 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51428054920 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/perl-grau/akzent-schwarz |
S493A=No LCL7=Yes |
|||||||||
| 01 | Door lining leather rear left | PERLGRAU/GRAU | 1 | 51427278501 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | PERLGRAU/GRAU | 1 | 51427278502 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Fabric Track/anthracite/akzent-grau |
S493A=No BEL1=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT/GRAU | 1 | 51427283973 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | ANTHRAZIT/GRAU | 1 | 51427283974 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather "Dakota/oyster/oyster" |
S493A=No LCDH=Yes |
|||||||||
| 01 | Door lining leather rear left | OYSTER | 1 | 51427278491 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | OYSTER | 1 | 51427278492 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package and Fabric/leather Metro/silver/black or Fabric/leather Metro/silver/perl-grau |
S493A=No CAH6=Yes CALJ=Yes |
|||||||||
| 01 | Door lining cloth rear left | SILBER/SCHWARZ | 1 | 51427283977 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | SILBER/SCHWARZ | 1 | 51427283978 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric/leather Metro/silver/black or Fabric/leather Metro/silver/perl-grau |
S493A=Yes CAH6=Yes CALJ=Yes |
|||||||||
| 01 | Door lining cloth rear left | SILBER/SCHWARZ | 1 | 51427284025 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | SILBER/SCHWARZ | 1 | 51427284026 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Leather Dakota/everest-grau/akzent-schw. or Leather "Dakota"/schwarz |
S493A=Yes LCL4=Yes LCSW=Yes |
|||||||||
| 01 | Door lining leather rear left | GRAU/GRAPHIT | 1 | 51427284035 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | GRAU/GRAPHIT | 1 | 51427284036 | NoS | Shop at ECS Tuning | ||||
| 02 | Clip beige | 2 | 07147133419 | $4.49 | Shop at ECS Tuning | |||||
| 02 | Clip with washer, natur | WEIß | 14 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| 03 | Cover, locking button left | 1 | 51417270971 | Shop at ECS Tuning | ||||||
| 03 | Cover, locking button right | 1 | 51417270972 | Shop at ECS Tuning | ||||||
| 04 | Stop buffer | 2 | 51437217734 | $2.10 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/everest-grau/akzent-schw. |
LCL4=Yes |
|||||||||
| 05 | Armrest in leather, rear left | EVERESTGRAU | 1 | 51427278541 | NoS | Shop at ECS Tuning | ||||
| 05 | Armrest in leather, rear right | EVERESTGRAU | 1 | 51427278542 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 05 | Armrest in leather, rear left | KORALLROT | 1 | 51427278539 | NoS | Shop at ECS Tuning | ||||
| 05 | Armrest in leather, rear right | KORALLROT | 1 | 51427278540 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/perl-grau/akzent-schwarz |
LCL7=Yes |
|||||||||
| 05 | Armrest in leather, rear left | PERLGRAU | 1 | 51427278545 | NoS | Shop at ECS Tuning | ||||
| 05 | Armrest in leather, rear right | PERLGRAU | 1 | 51427278546 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" |
LCCX=Yes LCDH=Yes |
|||||||||
| 05 | Armrest in leather, rear left | OYSTER | 1 | 51427278543 | NoS | Shop at ECS Tuning | ||||
| 05 | Armrest in leather, rear right | OYSTER | 1 | 51427278544 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/akzent-rot or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
LCL3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 05 | Armrest in leather, rear left | SCHWARZ | 1 | 51427274505 | Shop at ECS Tuning | |||||
| 05 | Armrest in leather, rear right | SCHWARZ | 1 | 51427274506 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/leather Metro/silver/black or Fabric/leather Metro/silver/perl-grau or Fabric/Leather Metro/petrol/black or Sensatec/black |
BDAT=Yes BEL1=Yes BEL2=Yes CAH6=Yes CALJ=Yes CALK=Yes KCSW=Yes |
|||||||||
| 05 | Armrest, rear left | SCHWARZ | 1 | 51427283963 | Shop at ECS Tuning | |||||
| 05 | Armrest, rear right | SCHWARZ | 1 | 51427283964 | Shop at ECS Tuning | |||||
| 06 | Door handle, inside, left | SCHWARZ | 1 | 51417282913 | Shop at ECS Tuning | |||||
| 06 | Door handle, inside, right | SCHWARZ | 1 | 51417282914 | Shop at ECS Tuning | |||||
| For vehicles with oyster/oyster |
DH=Yes |
|||||||||
| 06 | Door handle, inside, left | OYSTER | 1 | 51417282915 | NoS | Shop at ECS Tuning | ||||
| 06 | Door handle, inside, right | OYSTER | 1 | 51417282916 | Shop at ECS Tuning | |||||
| 07 | Door handle, inside left | 1 | 51417240411 | Shop at ECS Tuning | ||||||
| 07 | Door handle inner right | 1 | 51417240412 | Shop at ECS Tuning | ||||||
| 08 | Torx-bolt for plastic material | ISA 4X12MM | X | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Clamp / wiring holder | 3 | 07147127892 | $0.38 | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings, acrylic glass, black |
S4DSA=Yes |
|||||||||
| 10 | Trim cover, handle, acrylic, black, left | 1 | 51417283815 | +core | Shop at ECS Tuning | |||||
| 10 | Trim cover, handle, acrylic black, right | 1 | 51417283816 | +core | Shop at ECS Tuning | |||||
| For vehicles with Interior trim strips, alu, brushed, fine |
S4ADA=Yes |
|||||||||
| 10 | Trim cover, handle, alu, brushed, left | 1 | 51417240417 | +core | Shop at ECS Tuning | |||||
| 10 | Trim cover, handle, alu, brushed, right | 1 | 51417240418 | +core | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings, plexiglass, white |
S4DRA=Yes |
|||||||||
| 10 | Trim cover, handle, acrylic, white, left | 1 | 51417270099 | +core | Shop at ECS Tuning | |||||
| 10 | Trim cover, handle, acrylic white, right | 1 | 51417270100 | +core | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 10 | Trim cover, handle, black glossy, left | 1 | 51417240415 | +core | Shop at ECS Tuning | |||||
| 10 | Trim cover, handle, black glossy, right | 1 | 51417240416 | +core | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, aluminum hexagon |
S4MRA=Yes |
|||||||||
| 10 | Trim, handle, Alu Hexagon, left | 1 | 03/2014 | 51418064263 | Shop at ECS Tuning | |||||
| 10 | Trim handle, Alu Hexagon, right | 1 | 03/2014 | 51418064264 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim Fineline Stream |
S4DPA=Yes |
|||||||||
| 10 | Trim cover, handle Fineline Stream, left | 1 | 51417285471 | +core | Shop at ECS Tuning | |||||
| 10 | Trim cover, handle, Fineline Stream, rgt | 1 | 51417285472 | +core | Shop at ECS Tuning | |||||
| 10 | Trim cover, handle, satinsilber, left | 1 | 51417240413 | +core | Shop at ECS Tuning | |||||
| 10 | Trim cover, handle, satinsilber, right | 1 | 51417240414 | +core | Shop at ECS Tuning | |||||
| 11 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| 12 | Clamp | 0,8MM | 10 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 13 | Torx-bolt for plastic material | 5.2X20 ISA | 10 | 07147277470 | Shop at ECS Tuning | |||||
| 14 | Plug-in nut | 0,8MM | 4 | 51416989691 | $0.77 | Shop at ECS Tuning | ||||
| 15 | Expanding nut | 6 | 07147265039 | Shop at ECS Tuning | ||||||
| 16 | Crash pad for door, rear left | 1 | 51717320475 | Shop at ECS Tuning | ||||||
| 16 | Crash pad for door, rear right | 1 | 51717320476 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F20 118d Door trim, rear?
- This technical diagram illustrates the Door trim, rear within the Vehicle trim group for the 1 Series F20 118d produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Door lining vynil rear left (Part #51427325477).
- Which models use the hardware listed in this Door trim, rear?
- The hardware and components featured in the Door trim, rear are specific to the 1 Series F20 118d produced during 2015. These technical specifications ensure that parts like the Door lining vynil rear left (51427325477) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim, rear assembly?
- Each item in the Door trim, rear corresponds to the numbered list below the illustration. For the 1 Series F20 118d, you can identify the Door lining vynil rear left by locating its position on the schematic, which then links to the official BMW part number 51427325477 for the Vehicle trim section.
