Door trim, rear for BMW 6 Series F06 Gran Coupé LCI 640d (2018)

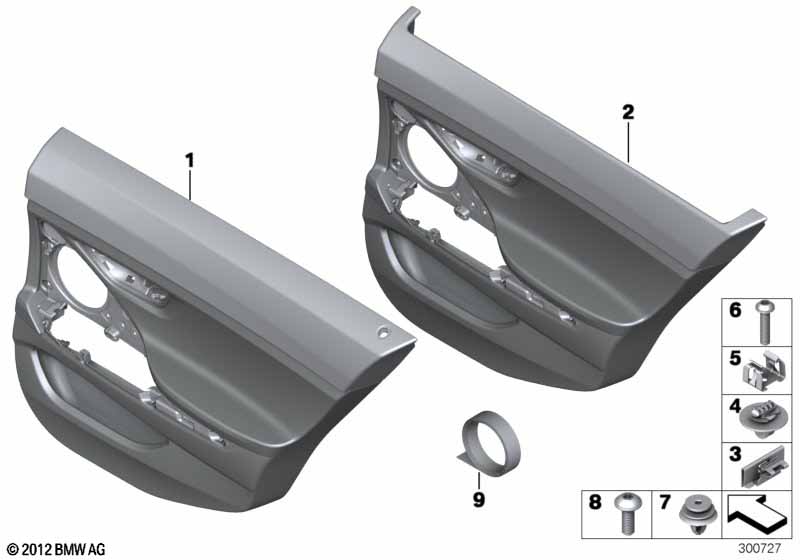

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 6 Series F06 Gran Coupé LCI 640d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | When replacing door trim panel always order speaker covers including retaining hardware. On vehicles without the optional Ambient Interior Lighting (S4URA) the stamped opening for the curb light must be closed off with the lamp unit. The hole for the tweeter (Top HiFi) must be cut out as required. Markings have been provided on the rear side. |
|||||||||
| For vehicles with Roller sun vizor, rear lateral and Leather "Dakota/elfenbein-weiss" |
S416A=No LCEX=Yes |
|||||||||
| 01 | Door lining leather left | ELFENBEINWEISS | 1 | 51427302653 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | ELFENBEINWEISS | 1 | 51427302654 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Leather "Dakota"/schwarz |
S416A=No LCSW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 51427302651 | Shop at ECS Tuning | |||||
| 01 | Door lining leather right | SCHWARZ | 1 | 51427302652 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Leather, expanded/vermilion-rot |
S416A=No NABY=Yes |
|||||||||
| 01 | Door lining leather left | VERMILIONROT | 1 | 51427305005 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | VERMILIONROT | 1 | 51427305006 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Leather Nappa exp./elfenbein-white/blk. |
S416A=No NAEP=Yes |
|||||||||
| 01 | Door lining leather left | ELFENBEINWEISS | 1 | 51427428837 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | ELFENBEINWEISS | 1 | 51427428838 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Leather, Nappa expanded/cognac/black |
S416A=No NARQ=Yes |
|||||||||
| 01 | Door lining leather left | COGNAC | 1 | 51427401579 | Shop at ECS Tuning | |||||
| 01 | Door lining leather right | COGNAC | 1 | 51427401580 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Leather "Dakota/zimt-braun" |
S416A=No LCEZ=Yes |
|||||||||
| 01 | Door lining leather left | ZIMTBRAUN | 1 | 51427302655 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | ZIMTBRAUN | 1 | 51427302656 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather "Dakota/elfenbein-weiss" |
S416A=No S4NDA=Yes LCEX=Yes |
|||||||||
| 01 | Door lining leather left | ELFENBEINWEISS | 1 | 51427304089 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | ELFENBEINWEISS | 1 | 51427304090 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather "Dakota/zimt-braun" |
S416A=No S4NDA=Yes LCEZ=Yes |
|||||||||
| 01 | Door lining leather left | ZIMTBRAUN | 1 | 51427304091 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | ZIMTBRAUN | 1 | 51427304092 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather, Nappa expanded/cognac/black |
S416A=No S4NDA=Yes NARQ=Yes |
|||||||||
| 01 | Door lining leather left | COGNAC | 1 | 51427401557 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | COGNAC | 1 | 51427401558 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Alcantara/Leather Nappa/anthracite or Leather "Nappa/black" |
S416A=No GPAT=Yes NASW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 51427302767 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | SCHWARZ | 1 | 51427302768 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather, expanded/vermilion-rot |
S416A=No S4NDA=Yes NABY=Yes |
|||||||||
| 01 | Door lining leather left | VERMILIONROT | 1 | 51427302697 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | VERMILIONROT | 1 | 51427302698 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather "Dakota"/schwarz |
S416A=No S4NDA=Yes LCSW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 51427304087 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | SCHWARZ | 1 | 51427304088 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather Nappa exp./elfenbein-white/blk. |
S416A=No S4NDA=Yes NAEP=Yes |
|||||||||
| 01 | Door lining leather left | ELFENBEINWEISS | 1 | 51427428781 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | ELFENBEINWEISS | 1 | 51427428782 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather, Nappa expanded/cognac/black |
S416A=No S4KSA=Yes S4NDA=Yes NARQ=Yes |
|||||||||
| 01 | Door lining leather left | COGNAC | 1 | 51427401561 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | COGNAC | 1 | 51427401562 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather "Nappa/black" |
S416A=No S4KSA=Yes S4NDA=Yes NASW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 51427302689 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | SCHWARZ | 1 | 51427302690 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather, expanded/vermilion-rot |
S416A=No S4KSA=Yes S4NDA=Yes NABY=Yes |
|||||||||
| 01 | Door lining leather left | VERMILIONROT | 1 | 51427302703 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | VERMILIONROT | 1 | 51427302704 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Alcantara/Leather Nappa/anthracite or Leather "Nappa/black" |
S416A=No S4NDA=Yes GPAT=Yes NASW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 51427302677 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | SCHWARZ | 1 | 51427302678 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather "Dakota/zimt-braun" |
S416A=No S4KSA=Yes S4NDA=Yes LCEZ=Yes |
|||||||||
| 01 | Door lining leather left | ZIMTBRAUN | 1 | 51427304103 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | ZIMTBRAUN | 1 | 51427304104 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather "Dakota"/schwarz |
S416A=No S4KSA=Yes S4NDA=Yes LCSW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 51427304099 | Shop at ECS Tuning | |||||
| 01 | Door lining leather right | SCHWARZ | 1 | 51427304100 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather Nappa exp./elfenbein-white/blk. |
S416A=No S4KSA=Yes S4NDA=Yes NAEP=Yes |
|||||||||
| 01 | Door lining leather left | ELFENBEINWEISS | 1 | 51427428795 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | ELFENBEINWEISS | 1 | 51427428796 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather "Dakota/elfenbein-weiss" |
S416A=No S4KSA=Yes S4NDA=Yes LCEX=Yes |
|||||||||
| 01 | Door lining leather left | ELFENBEINWEISS | 1 | 51427304101 | NoS | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | ELFENBEINWEISS | 1 | 51427304102 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Leather, Nappa expanded/cognac/black |
S416A=Yes NARQ=Yes |
|||||||||
| 02 | Door lining leather left | COGNAC | 1 | 51427401585 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | COGNAC | 1 | 51427401586 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Leather "Dakota/elfenbein-weiss" |
S416A=Yes LCEX=Yes |
|||||||||
| 02 | Door lining leather left | ELFENBEINWEISS | 1 | 51427302665 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | ELFENBEINWEISS | 1 | 51427302666 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Nappa exp./elfenbein-white/blk. and Roller sun vizor, rear lateral |
NAEP=Yes S416A=Yes |
|||||||||
| 02 | Door lining leather left | ELFENBEINWEISS | 1 | 51427428853 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | ELFENBEINWEISS | 1 | 51427428854 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Leather "Dakota/zimt-braun" |
S416A=Yes LCEZ=Yes |
|||||||||
| 02 | Door lining leather left | ZIMTBRAUN | 1 | 51427302667 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | ZIMTBRAUN | 1 | 51427302668 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Leather "Dakota"/schwarz |
S416A=Yes LCSW=Yes |
|||||||||
| 02 | Door lining leather left | SCHWARZ | 1 | 51427302663 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | SCHWARZ | 1 | 51427302664 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Leather, expanded/vermilion-rot |
S416A=Yes NABY=Yes |
|||||||||
| 02 | Door lining leather left | VERMILIONROT | 1 | 51427305011 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | VERMILIONROT | 1 | 51427305012 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather, Nappa expanded/cognac/black |
S416A=Yes S4NDA=Yes NARQ=Yes |
|||||||||
| 02 | Door lining leather left | COGNAC | 1 | 51427401565 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | COGNAC | 1 | 51427401566 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Alcantara/Leather Nappa/anthracite or Leather "Nappa/black" |
S416A=Yes GPAT=Yes NASW=Yes |
|||||||||
| 02 | Door lining leather left | SCHWARZ | 1 | 51427302817 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | SCHWARZ | 1 | 51427302818 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather Nappa exp./elfenbein-white/blk. |
S416A=Yes S4NDA=Yes NAEP=Yes |
|||||||||
| 02 | Door lining leather left | ELFENBEINWEISS | 1 | 51427428799 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | ELFENBEINWEISS | 1 | 51427428800 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather, expanded/vermilion-rot |
S416A=Yes S4NDA=Yes NABY=Yes |
|||||||||
| 02 | Door lining leather left | VERMILIONROT | 1 | 51427302723 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | VERMILIONROT | 1 | 51427302724 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather "Dakota"/schwarz |
S416A=Yes S4NDA=Yes LCSW=Yes |
|||||||||
| 02 | Door lining leather left | SCHWARZ | 1 | 51427304113 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | SCHWARZ | 1 | 51427304114 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather "Dakota/elfenbein-weiss" |
S416A=Yes S4NDA=Yes LCEX=Yes |
|||||||||
| 02 | Door lining leather left | ELFENBEINWEISS | 1 | 51427304115 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | ELFENBEINWEISS | 1 | 51427304116 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Leather "Dakota/zimt-braun" |
S416A=Yes S4NDA=Yes LCEZ=Yes |
|||||||||
| 02 | Door lining leather left | ZIMTBRAUN | 1 | 51427304117 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | ZIMTBRAUN | 1 | 51427304118 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather "Nappa/black" |
S416A=Yes S4KSA=Yes S4NDA=Yes NASW=Yes |
|||||||||
| 02 | Door lining leather left | SCHWARZ | 1 | 51427302737 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | SCHWARZ | 1 | 51427302738 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather Nappa exp./elfenbein-white/blk. |
S416A=Yes S4KSA=Yes S4NDA=Yes NAEP=Yes |
|||||||||
| 02 | Door lining leather left | ELFENBEINWEISS | 1 | 51427428803 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | ELFENBEINWEISS | 1 | 51427428804 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather, Nappa expanded/cognac/black |
S416A=Yes S4KSA=Yes S4NDA=Yes NARQ=Yes |
|||||||||
| 02 | Door lining leather left | COGNAC | 1 | 51427401571 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | COGNAC | 1 | 51427401572 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather "Dakota/elfenbein-weiss" |
S416A=Yes S4KSA=Yes S4NDA=Yes LCEX=Yes |
|||||||||
| 02 | Door lining leather left | ELFENBEINWEISS | 1 | 51427304127 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | ELFENBEINWEISS | 1 | 51427304128 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Instrument panel, leather-covered and Alcantara/Leather Nappa/anthracite or Leather "Nappa/black" |
S416A=Yes S4NDA=Yes GPAT=Yes NASW=Yes |
|||||||||
| 02 | Door lining leather left | SCHWARZ | 1 | 51427302717 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | SCHWARZ | 1 | 51427302718 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather "Dakota"/schwarz |
S416A=Yes S4KSA=Yes S4NDA=Yes LCSW=Yes |
|||||||||
| 02 | Door lining leather left | SCHWARZ | 1 | 51427304125 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | SCHWARZ | 1 | 51427304126 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather "Dakota/zimt-braun" |
S416A=Yes S4KSA=Yes S4NDA=Yes LCEZ=Yes |
|||||||||
| 02 | Door lining leather left | ZIMTBRAUN | 1 | 51427304129 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | ZIMTBRAUN | 1 | 51427304130 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral and Contrast stitching and Instrument panel, leather-covered and Leather, expanded/vermilion-rot |
S416A=Yes S4KSA=Yes S4NDA=Yes NABY=Yes |
|||||||||
| 02 | Door lining leather left | VERMILIONROT | 1 | 51427302743 | NoS | Shop at ECS Tuning | ||||
| 02 | Door lining leather right | VERMILIONROT | 1 | 51427302744 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Roller sun vizor, rear lateral |
S416A=Yes |
|||||||||
| 03 | Clamp | 12 | 07147217917 | Shop at ECS Tuning | ||||||
| For vehicles with Roller sun vizor, rear lateral |
S416A=No |
|||||||||
| 03 | Clamp | 1,8MM | 12 | 51417022046 | $0.85 | Shop at ECS Tuning | ||||
| 04 | Rotary clip | 4 | 07147216832 | Shop at ECS Tuning | ||||||
| 05 | Clamp | 4 | 07149225177 | Shop at ECS Tuning | ||||||
| 06 | Fillister head screw | 4X18 | 4 | 07149111334 | $1.09 | Shop at ECS Tuning | ||||
| 07 | Clip with seal ring | GRAU | 12 | 51418224781 | $0.69 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | 5X14 | X | 07146973628 | Shop at ECS Tuning | |||||
| 09 | Adhesive tape | 1 | 51418170727 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series F06 Gran Coupé LCI 640d Door trim, rear?
- This technical diagram illustrates the Door trim, rear within the Vehicle trim group for the 6 Series F06 Gran Coupé LCI 640d produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Door lining leather left (Part #51427302653).
- Which models use the hardware listed in this Door trim, rear?
- The hardware and components featured in the Door trim, rear are specific to the 6 Series F06 Gran Coupé LCI 640d produced during 2018. These technical specifications ensure that parts like the Door lining leather left (51427302653) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim, rear assembly?
- Each item in the Door trim, rear corresponds to the numbered list below the illustration. For the 6 Series F06 Gran Coupé LCI 640d, you can identify the Door lining leather left by locating its position on the schematic, which then links to the official BMW part number 51427302653 for the Vehicle trim section.
