Outside mirror for BMW 5 Series F10 525dX (2013)

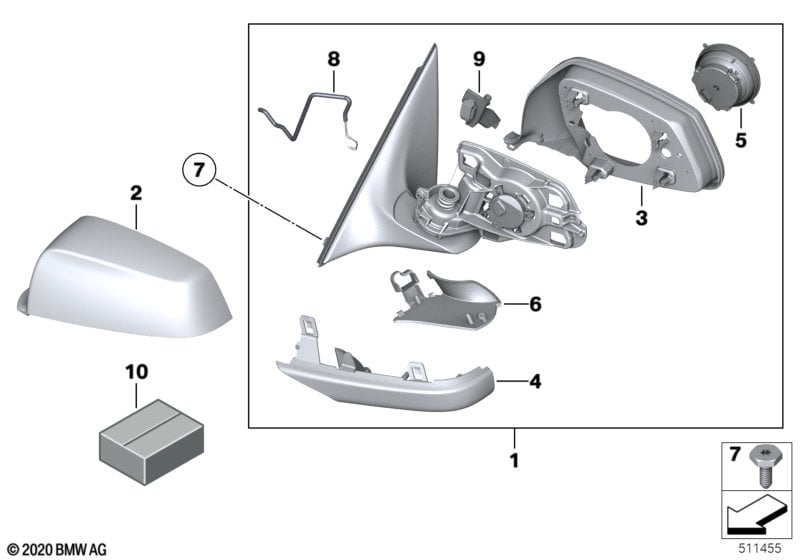

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 525dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The door mirror housings for Model M550d are always painted in ferricgray - regardless of vehicle color. For vehicles with M Sports package and Indiv. Ext. Line, burnished aluminium and High gloss shadow line and vehicles produced from 09/03/2012 |
P337A=No S3MBA=No S760A=No |
||||||||
| For vehicles with Interior/outside mirror with auto dip and Lane-change warning and Surround View |
S430A=Yes S5AGA=Yes S5DLA=No |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | 1 | 51167321835 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167321836 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane-change warning and Surround View |
S430A=No S5AGA=Yes S5DLA=No |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | 1 | 51167321823 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167321824 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane-change warning and Surround View |
S430A=No S5AGA=Yes S5DLA=Yes |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | 1 | 51167321831 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167321832 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane-change warning and Surround View |
S430A=Yes S5AGA=No S5DLA=Yes |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | 1 | 51167321839 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167321840 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane-change warning and Surround View |
S430A=Yes S5AGA=Yes S5DLA=Yes |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | 1 | 51167321843 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167321844 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane-change warning and Surround View |
S430A=Yes S5AGA=No S5DLA=No |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | 1 | 51167321811 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167321812 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Lane-change warning and Surround View |
S430A=No S5AGA=No S5DLA=Yes |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | 1 | 51167321827 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167321828 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory and Lane-change warning and Surround View |
S430A=No S456A=Yes S459A=Yes S5AGA=No S5DLA=No |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | 1 | 51167322497 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167322498 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory and Lane-change warning and Surround View |
S430A=No S456A=Yes S459A=No S5AGA=No S5DLA=No |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | 1 | 51167322497 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167322498 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory and Lane-change warning and Surround View |
S430A=No S456A=No S459A=Yes S5AGA=No S5DLA=No |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | 1 | 51167322497 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167322498 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory and Lane-change warning and Surround View |
S430A=No S456A=No S459A=No S5AGA=No S5DLA=No |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | 1 | 51167322551 | Shop at ECS Tuning | ||||||
| 01 | Outside mirror w/out glass heated right | 1 | 51167322552 | Shop at ECS Tuning | ||||||
| For vehicles with Lane-change warning and Surround View |
S5AGA=No S5DLA=No |
|||||||||
| 02 | Outside mirror cover cap, left, primed | 1 | 51167216369 | Shop at ECS Tuning | ||||||
| 02 | Outside mirror cover cap, right, primed | 1 | 51167216370 | Shop at ECS Tuning | ||||||
| For vehicles with Lane-change warning or Surround View |
S5AGA=Yes S5DLA=Yes |
|||||||||
| 02 | Outside mirror cover cap, left, primed | 1 | 51167187431 | $51.32 | Shop at ECS Tuning | |||||
| 02 | Outside mirror cover cap, right, primed | 1 | 51167187432 | $51.32 | Shop at ECS Tuning | |||||
| For vehicles with Backup camera and Top View and Lane-change warning |
S3AHA=No S5AGA=No |
|||||||||
| 03 | Supporting ring left | 1 | 51167216367 | Shop at ECS Tuning | ||||||
| 03 | Supporting ring right | 1 | 51167216368 | Shop at ECS Tuning | ||||||
| For vehicles with Backup camera and Top View and Lane-change warning and Surround View |
S3AHA=Yes S5AGA=No S5DLA=Yes |
|||||||||
| 03 | Supporting ring left | 1 | 51167266027 | $31.75 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | 1 | 51167266028 | $31.75 | Shop at ECS Tuning | |||||
| For vehicles with Backup camera and Top View and Lane-change warning and Surround View |
S3AHA=Yes S5AGA=No S5DLA=No |
|||||||||
| 03 | Supporting ring left | 1 | 51167266027 | $31.75 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | 1 | 51167266028 | $31.75 | Shop at ECS Tuning | |||||
| For vehicles with Backup camera and Top View and Lane-change warning and Surround View |
S3AHA=No S5AGA=No S5DLA=Yes |
|||||||||
| 03 | Supporting ring left | 1 | 51167266027 | $31.75 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | 1 | 51167266028 | $31.75 | Shop at ECS Tuning | |||||
| For vehicles with Surround View |
S5DLA=No |
|||||||||
| 04 | Housing lower section, left | 1 | 51167266035 | $26.55 | Shop at ECS Tuning | |||||
| 04 | Housing lower section, right | 1 | 51167266036 | $26.57 | Shop at ECS Tuning | |||||
| For vehicles with Surround View |
S5DLA=Yes |
|||||||||
| 04 | Housing lower section, left | KAMERA | 1 | 51167266375 | Shop at ECS Tuning | |||||
| 04 | Housing lower section, right | KAMERA | 1 | 51167266376 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory |
S430A=Yes S456A=Yes S459A=Yes |
|||||||||
| 05 | Power, outside mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory |
S430A=Yes S456A=Yes S459A=No |
|||||||||
| 05 | Power, outside mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory |
S430A=Yes S456A=No S459A=Yes |
|||||||||
| 05 | Power, outside mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory |
S430A=Yes S456A=No S459A=No |
|||||||||
| 05 | Power, outside mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory |
S430A=No S456A=Yes S459A=Yes |
|||||||||
| 05 | Power, outside mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory |
S430A=No S456A=Yes S459A=No |
|||||||||
| 05 | Power, outside mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory |
S430A=No S456A=No S459A=Yes |
|||||||||
| 05 | Power, outside mirror, LIN bus | 2 | 67137191398 | $163.22 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Comfort seat with memory and Seat adjuster, electric, with memory |
S430A=No S456A=No S459A=No |
|||||||||
| 05 | Drive, outside mirror left | 1 | 67137232743 | $84.48 | Shop at ECS Tuning | |||||
| 05 | Drive, outside mirror right | 1 | 67137232744 | $84.48 | Shop at ECS Tuning | |||||
| 06 | Set of covers mirror baseplate | 1 | 51167208693 | Shop at ECS Tuning | ||||||
| 07 | Combination Allen bolt | M6X16 | 6 | 07147175594 | Shop at ECS Tuning | |||||
| 08 | Wiring harness, electr. dr mirror, right | 1 | 67137232746 | Shop at ECS Tuning | ||||||
| 08 | Wiring harness, electr. dr mirror, left | 1 | 67137232747 | Shop at ECS Tuning | ||||||
| 09 | Lane change warning light left | 1 | 51167349207 | Shop at ECS Tuning | ||||||
| 09 | Lane change warning light right | 1 | 51167349208 | Shop at ECS Tuning | ||||||
| 10 | Repair kit cable exterior mirror | 1 | 61359853372 | Shop at ECS Tuning | ||||||
