Underbody cover, front for BMW 6 Series F06 Gran Coupé LCI 650i (2018)

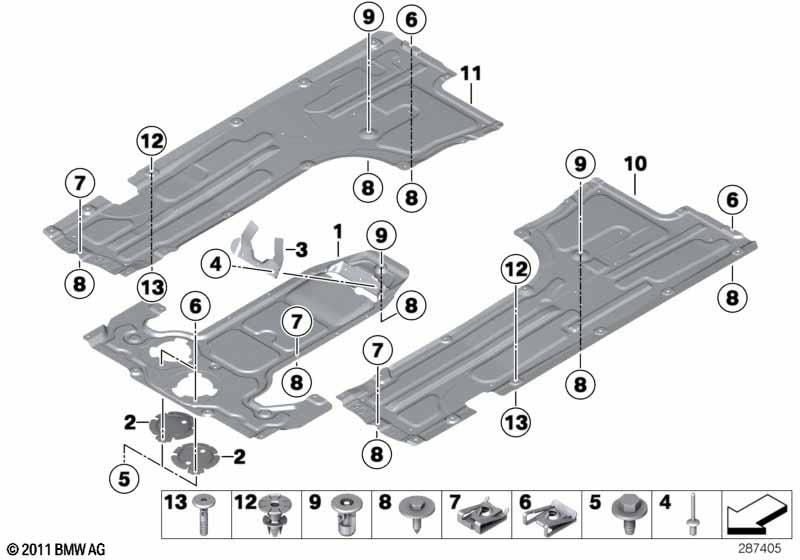

This Underbody cover, front technical drawing provides a detailed breakdown of the assembly for the 6 Series F06 Gran Coupé LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Underfloor coating center | 1 | 51757185027 | $91.94 | Shop at ECS Tuning | |||||
| 02 | Underfloor coating cover | 2 | 51757209541 | Shop at ECS Tuning | ||||||
| 03 | Cooling duct, Hardy coupling | 1 | 51757265065 | Shop at ECS Tuning | ||||||
| 04 | Blind rivet | 3 | 07147234212 | Shop at ECS Tuning | ||||||
| 05 | Sheet metal screw | ST4,8X13-F-ZNS3 | X | 07119901291 | $0.38 | Shop at ECS Tuning | ||||
| 06 | C-clip nut, self-locking | ST 4.8 -ZNS3 | X | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 07 | C-clip for plastic nut | TS5 | X | 12/2011 | 07147311312 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | TS5X20 SW8 D=22 | X | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | TS5X20SW10 D=22 | X | 10/2018 | 07149481168 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | TS5X20SW10 D=22 | X | 07142644722 | ENDED | Shop at ECS Tuning | ||||
| 09 | Expanding nut | L=18.4, DMAX=18 | X | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Underbody paneling, left | 1 | 51757276181 | Shop at ECS Tuning | ||||||
| 11 | Underside paneling, right | 1 | 51757276182 | Shop at ECS Tuning | ||||||
| 12 | Spacer clip | 5 | 07147122912 | $0.48 | Shop at ECS Tuning | |||||
| 13 | Pin | 5 | 07147122913 | $0.23 | Shop at ECS Tuning |
