Underhood shield for BMW 7 Series F02 750Li

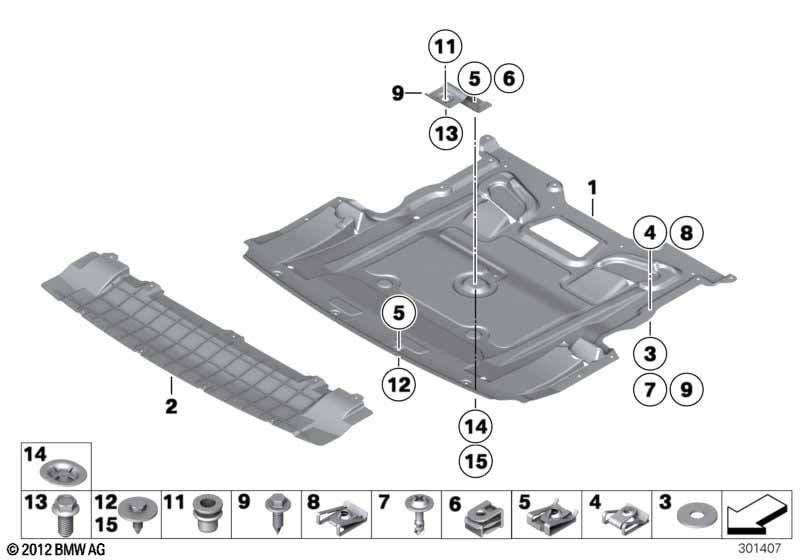

This Underhood shield technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Engine comp. shield., underride prot. | 1 | 51757185113 | $191.03 | Shop at ECS Tuning | |||||
| 01 | M engine compartment encapsulation front | 1 | 51758035971 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package or Skid plate national versions |
S715A=No S8SDA=No |
|||||||||
| 01 | Engine comp. shield., underride prot. | 1 | 51757185113 | $191.03 | Shop at ECS Tuning | |||||
| For vehicles with Poor road package or Skid plate national versions |
S815A=Yes S8SDA=Yes |
|||||||||
| 01 | Engine comp. shield., underride prot. | 1 | 51757185113 | $191.03 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 02 | Interm. piece engine compartment shield. | 1 | 51757898889 | Shop at ECS Tuning | ||||||
| 03 | Circlip | D=12MM | 12 | 51718212163 | $0.26 | Shop at ECS Tuning | ||||
| 04 | C-clip nut | 12 | 07146981767 | $1.33 | Shop at ECS Tuning | |||||
| 05 | C-clip nut | 9 | 12/2011 | 51717065773 | Shop at ECS Tuning | |||||
| 06 | C-clip for plastic nut | TS5 | 9 | 12/2011 | 07147311312 | Shop at ECS Tuning | ||||
| 07 | Quick-release screw | 18,4MM | 12 | 51717123801 | $1.14 | Shop at ECS Tuning | ||||
| 08 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 12 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 09 | Sheet metal screw with washer | ST 4,8X19 | 12 | 07119904263 | $0.29 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 09 | Hex head screw with washer | ST4,8X16MM | 5 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Shackle | 1 | 51757188405 | Shop at ECS Tuning | ||||||
| 11 | Blind rivet nut, flat headed | M8 DMAX=16MM | 1 | 51759218426 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | TS5X17 SW8 D=22 | 8 | 07149126886 | Shop at ECS Tuning | |||||
| 13 | Securing bolt | TENSILOCK | 1 | 07149160466 | Shop at ECS Tuning | |||||
