Decor covers, instrument panel for BMW 7 Series F02 LCI 740Li (2014)

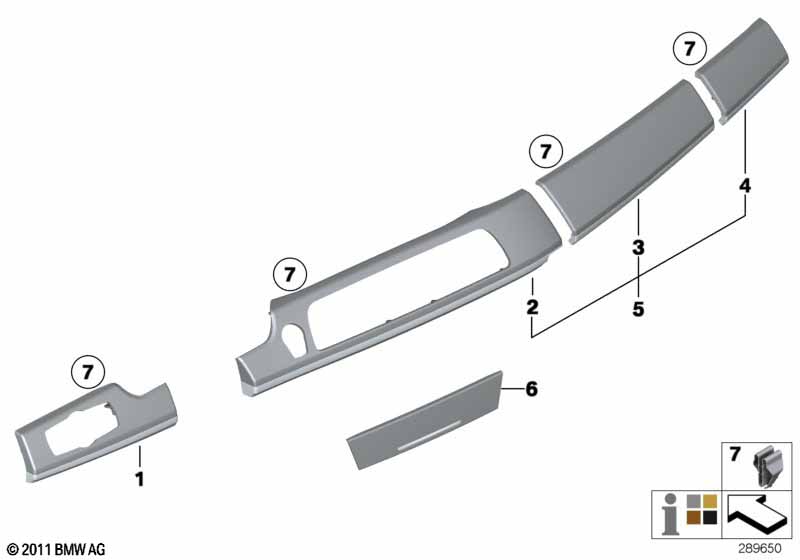

This Decor covers, instrument panel technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2014.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auto start/stop function |
S1CCA=Yes |
||||||||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 01 | Cover, dashboard, poplar woodgrain, left | 1 | 51459257694 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain version, ash grain, anthr |
S4CAA=Yes |
|||||||||
| 01 | Trim, I-panel, wood, ash, left | ANTHRAZIT | 1 | 51459112143 | Shop at ECS Tuning | |||||
| For vehicles with Fine woodgrain version 'Fineline' natur |
S4CBA=Yes |
|||||||||
| 01 | Trim, I-panel wood Fineline natural left | 1 | 51459155128 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain, nutwood/inlays |
S4B8A=Yes |
|||||||||
| 01 | Cover, dashboard, nutwood, left | 1 | 51459155123 | Shop at ECS Tuning | ||||||
| For vehicles with Interior strips, alu, satin-polished |
S4B9A=Yes |
|||||||||
| 01 | Trim, I-panel, alu, polished, left | 1 | 51459155133 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss |
S4B7A=Yes |
|||||||||
| 01 | Trim, I-panel, wood Fineline, gloss, lft | 1 | 51459112755 | $168.10 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 02 | Trim cover, poplar woodgrain, center | 1 | 51459232131 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain version, ash grain, anthr |
S4CAA=Yes |
|||||||||
| 02 | Trim, I-panel, wood, ash, center | ANTHRAZIT | 1 | 51459232133 | Shop at ECS Tuning | |||||
| For vehicles with Fine woodgrain version 'Fineline' natur |
S4CBA=Yes |
|||||||||
| 02 | Trim I-panel wood Fineline natural centr | 1 | 51459232129 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain, nutwood/inlays |
S4B8A=Yes |
|||||||||
| 02 | Cover, I-panel, wood walnut, center | 1 | 51459232135 | Shop at ECS Tuning | ||||||
| For vehicles with Interior strips, alu, satin-polished |
S4B9A=Yes |
|||||||||
| 02 | Trim, I-panel, alu, polished, center | 1 | 51459232137 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss |
S4B7A=Yes |
|||||||||
| 02 | Trim, wood, Fineline, gloss, center | 1 | 51459232127 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 03 | Cover, fold tray, poplar woodgrain | 1 | 51459257698 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain version, ash grain, anthr |
S4CAA=Yes |
|||||||||
| 03 | Trim, fold-out bin, wood ash | ANTHRAZIT | 1 | 51459118874 | $344.25 | Shop at ECS Tuning | ||||
| For vehicles with Fine woodgrain version 'Fineline' natur |
S4CBA=Yes |
|||||||||
| 03 | Trim, fold-out bin, wood Fineline nature | 1 | 51459155130 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain, nutwood/inlays |
S4B8A=Yes |
|||||||||
| 03 | Trim, fold-out bin, wood, walnut | 1 | 51459155125 | Shop at ECS Tuning | ||||||
| For vehicles with Interior strips, alu, satin-polished |
S4B9A=Yes |
|||||||||
| 03 | Trim, fold-out tray, alu, polished | 1 | 51459155135 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss |
S4B7A=Yes |
|||||||||
| 03 | Trim, fold-out bin, wood Fineline, gloss | 1 | 51459118873 | $344.25 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 04 | Cover, dashboard, poplar woodgrain,right | 1 | 51459257696 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine woodgrain version, ash grain, anthr |
S4CAA=Yes |
|||||||||
| 04 | Trim, I-panel, wood, ash, right | ANTHRAZIT | 1 | 51459112144 | $148.22 | Shop at ECS Tuning | ||||
| For vehicles with Fine woodgrain version 'Fineline' natur |
S4CBA=Yes |
|||||||||
| 04 | Trim, I-panel, wood, Fineline nature RT | 1 | 51459155131 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain, nutwood/inlays |
S4B8A=Yes |
|||||||||
| 04 | Cover, dashboard, nutwood, right | 1 | 51459155126 | Shop at ECS Tuning | ||||||
| For vehicles with Interior strips, alu, satin-polished |
S4B9A=Yes |
|||||||||
| 04 | Trim, I-panel, alu, polished, right | 1 | 51459155136 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss |
S4B7A=Yes |
|||||||||
| 04 | Trim, I-panel, wood Fineline, gloss, RT | 1 | 51459112756 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 05 | Cover set, I-panel, poplar woodgrain | 1 | 51459232615 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine woodgrain version 'Fineline' natur |
S4CBA=Yes |
|||||||||
| 05 | Set, covers, I-panel wood Fineline natur | 1 | 51459232613 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss |
S4B7A=Yes |
|||||||||
| 05 | Set, covers, I-panel, wood, gloss | FINELINE | 1 | 51459232611 | Shop at ECS Tuning | |||||
| For vehicles with Fine woodgrain version, ash grain, anthr or Fine woodgrain, ash grain anthracite |
S4CAA=Yes S4LAA=Yes |
|||||||||
| 05 | Set, covers, I-panel, wood ash | ANTHRAZIT | 1 | 51459232617 | Shop at ECS Tuning | |||||
| For vehicles with Fine woodgrain, nutwood/inlays or Fine woodgrain, nutwood/inlays |
S4B8A=Yes S4LBA=Yes |
|||||||||
| 05 | Set, covers, I-panel, wood, walnut | 1 | 51459232619 | Shop at ECS Tuning | ||||||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 06 | Cover, ashtray, wood poplar grain | 1 | 51459257693 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain version, ash grain, anthr |
S4CAA=Yes |
|||||||||
| 06 | Trim, ashtray, wood, ash | ANTHRAZIT | 1 | 51459155122 | $138.26 | Shop at ECS Tuning | ||||
| For vehicles with Fine woodgrain version 'Fineline' natur |
S4CBA=Yes |
|||||||||
| 06 | Trim, ashtray, wood Fineline, natural | 1 | 51459155132 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain, nutwood/inlays |
S4B8A=Yes |
|||||||||
| 06 | Trim, ashtray, wood, walnut | 1 | 51459155127 | Shop at ECS Tuning | ||||||
| For vehicles with Interior strips, alu, satin-polished |
S4B9A=Yes |
|||||||||
| 06 | Trim, ashtray, alu, polished | 1 | 51459155137 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss |
S4B7A=Yes |
|||||||||
| 06 | Trim, ashtray, wood Fineline, gloss | 1 | 51169123650 | $138.26 | Shop at ECS Tuning | |||||
| 07 | Clamp | X | 07147321144 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
