Headlining for BMW 3 Series F35 320Li (2015)

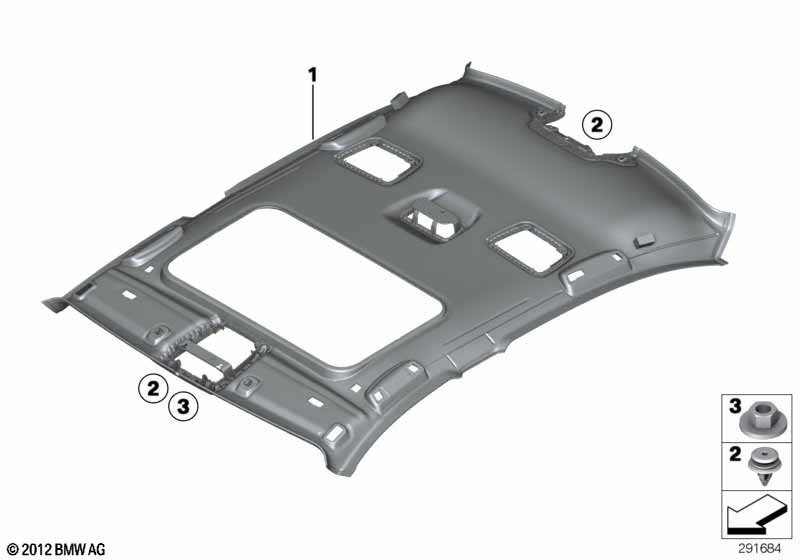

This Headlining technical drawing provides a detailed breakdown of the assembly for the 3 Series F35 320Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Molded roof lining | ANTHRAZIT | 1 | 51447847515 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Sensatec/black or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
S775A=No KCSW=Yes LCL5=Yes LCLZ=Yes LCSW=Yes |
|||||||||
| 01 | Molded roof lining | EVERESTGRAU | 1 | 51447312095 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Sensatec/veneto-beige or Sensatec/mocca or Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' sattelbraun/br. accents or Leather 'Dakota' sattelbraun/br. accents or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/black/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/veneto-beige/excl. seam or Leather Dakota / mocca or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/cognac/accent brown or Leather 'Dakota' venetobeige black |
S775A=No KCDF=Yes KCMY=Yes KCV1=Yes LCDF=Yes LCDJ=Yes LCDY=Yes LCFL=Yes LCL8=Yes LCL9=Yes LCLX=Yes LCLY=Yes LCMY=Yes LCOM=Yes LCRY=Yes LCV1=Yes |
|||||||||
| 01 | Molded roof lining | OYSTER | 1 | 51447312096 | NoS | Shop at ECS Tuning | ||||
| 02 | Clip Natur | 4 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Hex nut with plate | M5-8-ZNNIV SI | 3 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
