Rear window shelf for BMW 7 Series F02 LCI 730Li (2015)

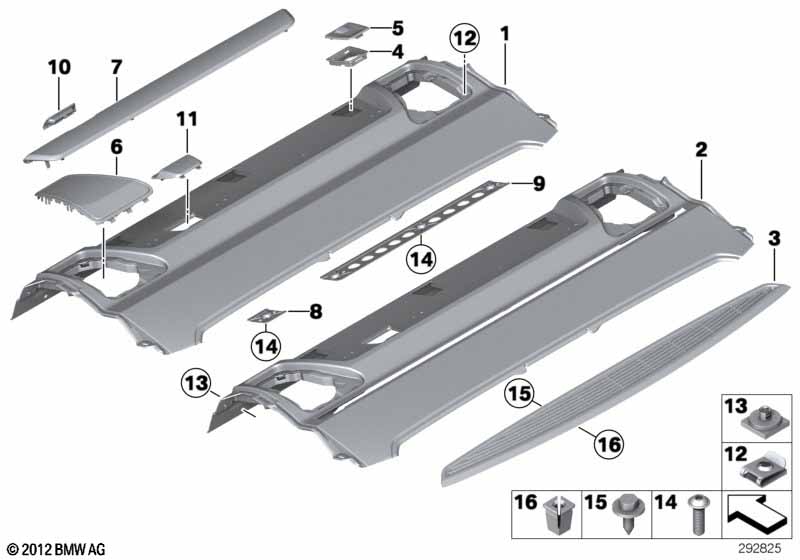

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=No S776A=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51468036412 | +core | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite |
S775A=Yes S776A=No |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51467903809 | +core | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and oyster/oyster |
S775A=No S776A=No DH=Yes |
|||||||||
| 01 | Rear window shelf | OYSTER | 1 | 51469170397 | +core | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and Veneto-beige |
S775A=No S776A=No DF=Yes |
|||||||||
| 01 | Rear window shelf | VENETOBEIGE | 1 | 51469157424 | +core | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Headliner in Alcantara anthracite and sattel-braun hell or barrique-rot or elfenbein-weiss or Black |
S775A=No S776A=No D5=Yes DK=Yes EW=Yes SW=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51469150080 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear and Headlining anthracite and Headliner in Alcantara anthracite |
S415A=Yes S775A=Yes S776A=No |
|||||||||
| 02 | Storage tray, retracting sun blind | ANTHRAZIT | 1 | 51467903810 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear and Headlining anthracite and Headliner in Alcantara anthracite |
S415A=Yes S775A=No S776A=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | ANTHRAZIT | 1 | 51468036454 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear and Headlining anthracite and Headliner in Alcantara anthracite and Veneto-beige |
S415A=Yes S775A=No S776A=No DF=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | VENETOBEIGE | 1 | 51469157425 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear and Headlining anthracite and Headliner in Alcantara anthracite and oyster/oyster |
S415A=Yes S775A=No S776A=No DH=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | OYSTER | 1 | 51469170398 | $334.95 | +core | Shop at ECS Tuning | |||
| For vehicles with Sun-blind, rear and Headlining anthracite and Headliner in Alcantara anthracite and sattel-braun hell or barrique-rot or elfenbein-weiss or Black |
S415A=Yes S775A=No S776A=No D5=Yes DK=Yes EW=Yes SW=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | ANTHRAZIT | 1 | 51469150081 | +core | Shop at ECS Tuning | ||||
| For vehicles with Veneto-beige |
DF=Yes |
|||||||||
| 03 | Ventilation grille, rear window shelf | VENETOBEIGE | 1 | 51469180240 | +core | Shop at ECS Tuning | ||||
| For vehicles with oyster/oyster |
DH=Yes |
|||||||||
| 03 | Ventilation grille, rear window shelf | OYSTER | 1 | 51469170544 | +core | Shop at ECS Tuning | ||||
| For vehicles with sattel-braun hell or barrique-rot or elfenbein-weiss or Black |
D5=Yes DK=Yes EW=Yes SW=Yes |
|||||||||
| 03 | Ventilation grille, rear window shelf | SCHWARZ | 1 | 51469127921 | +core | Shop at ECS Tuning | ||||
| For vehicles with Veneto-beige |
DF=Yes |
|||||||||
| 04 | Frame | VENETOBEIGE | 1 | 51467225289 | Shop at ECS Tuning | |||||
| For vehicles with oyster/oyster |
DH=Yes |
|||||||||
| 04 | Frame | OYSTER | 1 | 51467225287 | Shop at ECS Tuning | |||||
| For vehicles with sattel-braun hell or barrique-rot or elfenbein-weiss or Black |
D5=Yes DK=Yes EW=Yes SW=Yes |
|||||||||
| 04 | Frame | SCHWARZ | 1 | 51467225282 | Shop at ECS Tuning | |||||
| For vehicles with Veneto-beige |
DF=Yes |
|||||||||
| 05 | Cover | VENETOBEIGE | 1 | 51469180238 | Shop at ECS Tuning | |||||
| For vehicles with oyster/oyster |
DH=Yes |
|||||||||
| 05 | Cover | OYSTER | 1 | 51469170555 | Shop at ECS Tuning | |||||
| For vehicles with sattel-braun hell or barrique-rot or elfenbein-weiss or Black |
D5=Yes DK=Yes EW=Yes SW=Yes |
|||||||||
| 05 | Cover | SCHWARZ | 1 | 51469149497 | Shop at ECS Tuning | |||||
| For vehicles with Veneto-beige |
DF=Yes |
|||||||||
| 06 | Cover f left loudspeaker | VENETOBEIGE | 1 | 51469179867 | Shop at ECS Tuning | |||||
| 06 | Cover f right loudspeaker | VENETOBEIGE | 1 | 51469179868 | Shop at ECS Tuning | |||||
| For vehicles with oyster/oyster |
DH=Yes |
|||||||||
| 06 | Cover f left loudspeaker | OYSTER | 1 | 51469170497 | Shop at ECS Tuning | |||||
| 06 | Cover f right loudspeaker | OYSTER | 1 | 51469170498 | $26.75 | Shop at ECS Tuning | ||||
| For vehicles with Bang&Olufsen High End Surround Sound and oyster/oyster |
S6F2A=Yes DH=Yes |
|||||||||
| 06 | Cover f left loudspeaker | OYSTER | 1 | 65139276539 | +core | Shop at ECS Tuning | ||||
| 06 | Cover f right loudspeaker | OYSTER | 1 | 65139276540 | +core | Shop at ECS Tuning | ||||
| For vehicles with Bang&Olufsen High End Surround Sound and Veneto-beige |
S6F2A=Yes DF=Yes |
|||||||||
| 06 | Cover f left loudspeaker | VENETOBEIGE | 1 | 65139276537 | +core | Shop at ECS Tuning | ||||
| 06 | Cover f right loudspeaker | VENETOBEIGE | 1 | 65139276538 | +core | Shop at ECS Tuning | ||||
| For vehicles with sattel-braun hell or barrique-rot or elfenbein-weiss or Black |
D5=Yes DK=Yes EW=Yes SW=Yes |
|||||||||
| 06 | Cover f left loudspeaker | SCHWARZ | 1 | 51469157389 | Shop at ECS Tuning | |||||
| 06 | Cover f right loudspeaker | SCHWARZ | 1 | 51469157390 | Shop at ECS Tuning | |||||
| For vehicles with Bang&Olufsen High End Surround Sound and sattel-braun hell or barrique-rot or elfenbein-weiss or Black |
S6F2A=Yes D5=Yes DK=Yes EW=Yes SW=Yes |
|||||||||
| 06 | Cover f left loudspeaker | SCHWARZ | 1 | 65139276531 | +core | Shop at ECS Tuning | ||||
| 06 | Cover f right loudspeaker | SCHWARZ | 1 | 65139276532 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 07 | Trim cover, rear tray, poplar woodgrain | 1 | 51469271027 | Shop at ECS Tuning | ||||||
| For vehicles with Interior strips, alu, satin-polished |
S4B9A=Yes |
|||||||||
| 07 | Trim cover, storage floor, alu, polished | 1 | 51469149446 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain version 'Fineline' natur |
S4CBA=Yes |
|||||||||
| 07 | Trim, tray floor, wood, natural | FINELINE | 1 | 51469151611 | Shop at ECS Tuning | |||||
| For vehicles with Fine woodgrain version, ash grain, anthr or Fine woodgrain, ash grain anthracite |
S4CAA=Yes S4LAA=Yes |
|||||||||
| 07 | Trim cover storage floor, ash anthracite | 1 | 51469151609 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain, nutwood/inlays and Fine woodgrain version, ash grain, anthr and Fine woodgrain, ash grain anthracite and Fine woodgrain, nutwood/inlays |
S4B8A=Yes S4CAA=No S4LAA=No S4LBA=Yes |
|||||||||
| 07 | Cover, cargo floor, walnut, high-gloss | 1 | 51469127166 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain, nutwood/inlays and Fine woodgrain version, ash grain, anthr and Fine woodgrain, ash grain anthracite and Fine woodgrain, nutwood/inlays |
S4B8A=Yes S4CAA=No S4LAA=No S4LBA=No |
|||||||||
| 07 | Cover, cargo floor, walnut, high-gloss | 1 | 51469127166 | Shop at ECS Tuning | ||||||
| For vehicles with Fine woodgrain, nutwood/inlays and Fine woodgrain version, ash grain, anthr and Fine woodgrain, ash grain anthracite and Fine woodgrain, nutwood/inlays |
S4B8A=No S4CAA=No S4LAA=No S4LBA=Yes |
|||||||||
| 07 | Cover, cargo floor, walnut, high-gloss | 1 | 51469127166 | Shop at ECS Tuning | ||||||
| 08 | Retainer, left | 1 | 51469144474 | +core | Shop at ECS Tuning | |||||
| 09 | Countersupport, right | 1 | 51469127167 | +core | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim or Fine woodgrain, nutwood/inlays or Interior strips, alu, satin-polished or Fine woodgrain version, ash grain, anthr or Fine woodgrain version 'Fineline' natur |
S437A=Yes S4B8A=Yes S4B9A=Yes S4CAA=Yes S4CBA=Yes |
|||||||||
| 10 | Cover, belt outlet | PERLGLANZ | 1 | 51469170491 | Shop at ECS Tuning | |||||
| For vehicles with Veneto-beige |
DF=Yes |
|||||||||
| 11 | Cover, belt outlet | VENETOBEIGE | 1 | 51469180235 | Shop at ECS Tuning | |||||
| For vehicles with oyster/oyster |
DH=Yes |
|||||||||
| 11 | Cover, belt outlet | OYSTER | 1 | 51469170490 | Shop at ECS Tuning | |||||
| For vehicles with sattel-braun hell or barrique-rot or elfenbein-weiss or Black |
D5=Yes DK=Yes EW=Yes SW=Yes |
|||||||||
| 11 | Cover, belt outlet | ANTHRAZIT | 1 | 51469149496 | Shop at ECS Tuning | |||||
| 12 | Body nut | ST4,8-9-ZNS3 | 10 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Clip | 4 | 52207022358 | $6.97 | Shop at ECS Tuning | |||||
| 14 | Fillister head screw | 4 | 07146982677 | $0.47 | Shop at ECS Tuning | |||||
| 15 | Sheet metal screw | ST4,8X16 | X | 07119901311 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Expanding nut | ST4,8MM | 4 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
