Underhood shield for BMW 7 Series F02 760Li

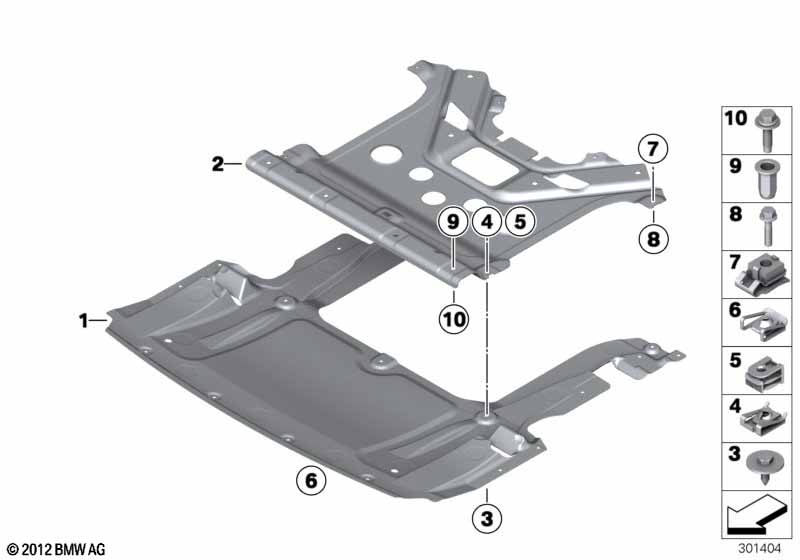

This Underhood shield technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 760Li. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 01 | Engine encapsulation, front | 1 | 51757211031 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | M engine compartment encapsulation front | 1 | 51758050295 | Shop at ECS Tuning | ||||||
| 02 | Structural reinforcement panel | 1 | 51717197500 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | TS5X17 SW8 D=22 | X | 12/2011 | 07149126886 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | TS5X20 SW8 D=22 | X | 12/2011 | 07149213164 | $0.38 | Shop at ECS Tuning | |||
| 03 | Hex bolt | TS5X20SW10 D=22 | X | 12/2011 | 06/2015 | 07149481168 | Shop at ECS Tuning | |||
| 03 | Hex bolt | TS5X20SW10 D=22 | X | 12/2011 | 07142644722 | ENDED | Shop at ECS Tuning | |||
| 04 | C-clip nut | 9 | 12/2011 | 51717065773 | Shop at ECS Tuning | |||||
| 05 | C-clip for plastic nut | TS5 | 9 | 12/2011 | 07147311312 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 06 | C-clip nut, self-locking | ST 4.8 -ZNS3 | X | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Plug-in nut | M10-10-ZNS3 | 4 | 06/2010 | 31106779393 | $1.95 | Shop at ECS Tuning | |||
| 07 | Plug-in nut | M10-10 ZNS3 | 4 | 06/2010 | 07147283812 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M10X35 | 4 | 06/2010 | 51617248561 | Shop at ECS Tuning | ||||
| 08 | Combination Allen bolt | M10X35 | 4 | 06/2010 | 07147284584 | Shop at ECS Tuning | ||||
| 09 | Blind rivet nut, flat headed | M8 DMAX=17MM | 4 | 06/2010 | 41107230875 | Shop at ECS Tuning | ||||
| 09 | Blind rivet nut, flat headed | M8 DMAX=20MM | 4 | 06/2010 | 07147284477 | Shop at ECS Tuning | ||||
| 10 | Screw self-tapping | M8X33-10.9 ZNS3 | 4 | 31106783907 | $0.98 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
