Underbody cover, front for BMW 7 Series F01 LCI 740dX

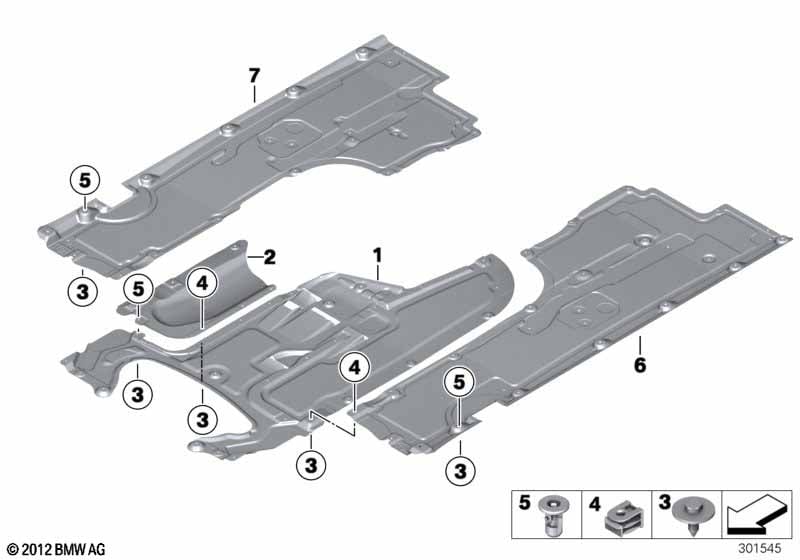

This Underbody cover, front technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 LCI 740dX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Underfloor coating center | 1 | 51757186714 | $94.67 | Shop at ECS Tuning | |||||
| 02 | Cover for exhaust system | 1 | 51757265262 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | TS5X20 SW8 D=22 | X | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | TS5X20SW10 D=22 | X | 06/2015 | 07149481168 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | TS5X20SW10 D=22 | X | 07142644722 | ENDED | Shop at ECS Tuning | ||||
| 04 | C-clip for plastic nut | TS5 | X | 07147311312 | Shop at ECS Tuning | |||||
| 05 | Expanding nut | L=18.4, DMAX=18 | X | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Lateral underbody shield, left | 1 | 51757185033 | $91.94 | Shop at ECS Tuning | |||||
| 07 | Lateral underbody shield, right | 1 | 51757185034 | $91.94 | Shop at ECS Tuning |
