Lateral trim panel rear for BMW 1 Series F21 LCI 120d (2019)

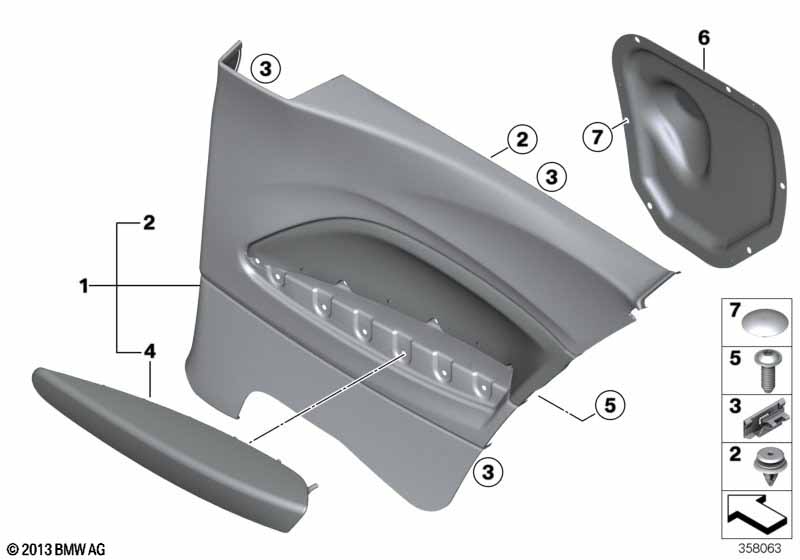

This Lateral trim panel rear technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth Hexagon/Alcantara/anthracite |
HAAT=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT | 1 | 51438054921 | Shop at ECS Tuning | |||||
| 01 | Trim panel cloth rear right | ANTHRAZIT | 1 | 51438054922 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ | 1 | 51437285407 | NoS | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | SCHWARZ | 1 | 51437285408 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Move/anthracite |
BDAT=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT | 1 | 51437281675 | Shop at ECS Tuning | |||||
| 01 | Trim panel cloth rear right | ANTHRAZIT | 1 | 51437281676 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/akzent-rot |
LCL3=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ/ROT | 1 | 51437285413 | NoS | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | SCHWARZ/ROT | 1 | 51437285414 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Stofff corner/anthrazit/Akzent grau |
CCL1=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT/GRAU | 1 | 51437409959 | NoS | Shop at ECS Tuning | ||||
| 01 | Trim panel cloth rear right | ANTHRAZIT/GRAU | 1 | 51437409960 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | OYSTER | 1 | 51437392397 | NoS | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | OYSTER | 1 | 51437392398 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | ROT/SCHWARZ | 1 | 51437285411 | NoS | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | ROT/SCHWARZ | 1 | 51437285412 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/black |
KCSW=Yes |
|||||||||
| 01 | Trim panel vinyl rear left | SCHWARZ | 1 | 51437325495 | NoS | Shop at ECS Tuning | ||||
| 01 | Trim panel vinyl rear right | SCHWARZ | 1 | 51437325496 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ/BLAU | 1 | 51438070089 | NoS | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | SCHWARZ/BLAU | 1 | 51438070090 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Stofff corner/anthrazit/Akzent rot |
CCL2=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT/ROT | 1 | 51437409957 | NoS | Shop at ECS Tuning | ||||
| 01 | Trim panel cloth rear right | ANTHRAZIT/ROT | 1 | 51437409958 | Shop at ECS Tuning | |||||
| For vehicles with Stoff/Leder path/silber/schwarz or Cloth/leather Path/silver/pearl-gray |
CPH6=Yes CPLJ=Yes |
|||||||||
| 01 | Trim panel cloth rear left | SILBER/SCHWARZ | 1 | 51437409963 | NoS | Shop at ECS Tuning | ||||
| 01 | Trim panel cloth rear right | SILBER/SCHWARZ | 1 | 51437409964 | NoS | Shop at ECS Tuning | ||||
| 02 | Clip Natur | 10 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Clamp | 0,8MM | 10 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 04 | Armrest, rear left | SCHWARZ | 1 | 51427281701 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 04 | Armrest, rear right | SCHWARZ | 1 | 51427281702 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 1 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 04 | Armrest in leather, rear left | KORALLROT | 1 | 51437285435 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 04 | Armrest in leather, rear right | KORALLROT | 1 | 51437285436 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 1 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" |
LCCX=Yes LCDH=Yes |
|||||||||
| 04 | Armrest in leather, rear left | OYSTER | 1 | 51427285433 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 04 | Armrest in leather, rear right | OYSTER | 1 | 51437285434 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 1 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with Cloth Hexagon/Alcantara/anthracite or Leather Dakota/black/akzent-rot or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
HAAT=Yes LCL3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 04 | Armrest in leather, rear right | SCHWARZ | 1 | 51427285432 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 04 | Armrest in leather, rear left | SCHWARZ | 1 | 51437285431 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 1 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| 05 | Torx-bolt for plastic material | ISA 4X12MM | 26 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| 06 | Cover for side section, left | 1 | 41007294289 | Shop at ECS Tuning | ||||||
| 06 | Cover, side section, right | 1 | 41007294290 | Shop at ECS Tuning | ||||||
| 07 | Clip | 12 | 51489119216 | $0.37 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
