Closing system, door, rear for BMW 3 Series F34 GT 320d (2015)

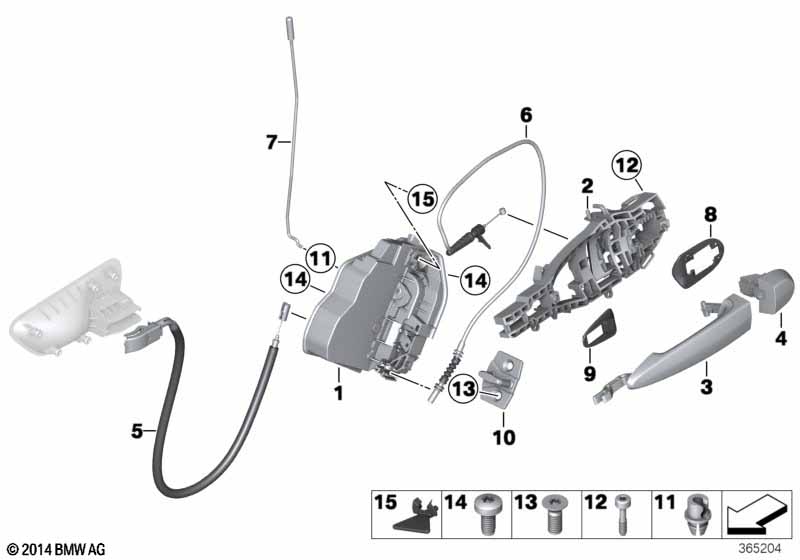

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Alarm system and Thiefproofing device |
S302A=No S8TGA=No |
|||||||||
| 01 | System latch, left | 1 | 51227229459 | $176.25 | Shop at ECS Tuning | |||||
| 01 | System latch, right | 1 | 51227229460 | $176.25 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system or Thiefproofing device |
S302A=Yes S8TGA=Yes |
|||||||||
| 01 | System latch, left | 1 | 51227202147 | $171.13 | Shop at ECS Tuning | |||||
| 01 | System latch, right | 1 | 51227202148 | $171.13 | Shop at ECS Tuning | |||||
| 02 | Carrier, outside door handle, front left | 1 | 51217242567 | +core | Shop at ECS Tuning | |||||
| 02 | Carrier, outside door handle,front right | 1 | 51217242568 | +core | Shop at ECS Tuning | |||||
| 03 | Handle bracket, left prime-coated | 1 | 51217207561 | $22.10 | Shop at ECS Tuning | |||||
| 03 | Handle bracket, right prime-coated | 1 | 51217207562 | $22.10 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 03 | grab handle, paint finish, right | CODE - UNI/MET. | 1 | 51210445184 | ENDED, NoS | Shop at ECS Tuning | ||||
| 03 | grab handle, paint finish, left | CODE - UNI/MET. | 1 | 51210445185 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 04 | Covering door, primed left | 1 | 51217162433 | $22.50 | Shop at ECS Tuning | |||||
| 04 | Covering door, primed right | 1 | 51217162434 | $22.50 | Shop at ECS Tuning | |||||
| For vehicles with Light package When ordering indicate color code |
S563A=Yes |
|||||||||
| 04 | Cover left painted | CODE - UNI/MET. | 1 | 51210399181 | $81.24 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Cover right painted | CODE - UNI/MET. | 1 | 51210399182 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Light package |
S563A=No |
|||||||||
| 04 | Covering door, primed left | 1 | 51217162431 | $22.50 | Shop at ECS Tuning | |||||
| 04 | Covering door, primed right | 1 | 51217162432 | $22.50 | Shop at ECS Tuning | |||||
| For vehicles with Light package When ordering indicate color code |
S563A=No |
|||||||||
| 04 | Cover left painted | CODE - UNI/MET. | 1 | 51210399177 | $59.43 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Cover right painted | CODE - UNI/MET. | 1 | 51210399178 | ENDED, NoS | Shop at ECS Tuning | ||||
| 05 | Bowden cable, inside door opener front | 2 | 51217291403 | Shop at ECS Tuning | ||||||
| 06 | Bowden cable, outside door handle, rear | 2 | 51227291413 | Shop at ECS Tuning | ||||||
| 07 | Operating rod, door rear left | 1 | 51227291415 | Shop at ECS Tuning | ||||||
| 07 | Operating rod, door rear right | 1 | 51227291416 | Shop at ECS Tuning | ||||||
| 08 | Lock cylinder base left | 1 | 51217060667 | $1.60 | Shop at ECS Tuning | |||||
| 08 | Lock cylinder base right | 1 | 51217060668 | $1.60 | Shop at ECS Tuning | |||||
| 09 | Handle bracket base, left | 1 | 51217060293 | $1.35 | Shop at ECS Tuning | |||||
| 09 | Handle bracket base, right | 1 | 51217060294 | $1.35 | Shop at ECS Tuning | |||||
| 10 | Catch bracket | 2 | 51217312545 | Shop at ECS Tuning | ||||||
| 11 | Circlip | 2 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 12 | Inner hex bolt | M5 | 1 | 51217133972 | $1.14 | Shop at ECS Tuning | ||||
| 13 | Torx-countersunk head screw | ISA M8X28 | 4 | 51217130110 | $0.52 | Shop at ECS Tuning | ||||
| 14 | Torx bolt | M6X13 ZNNID SW | 6 | 07147186859 | $0.53 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
