Carrier, rear for BMW 3 Series F34 GT 320iX (2016)

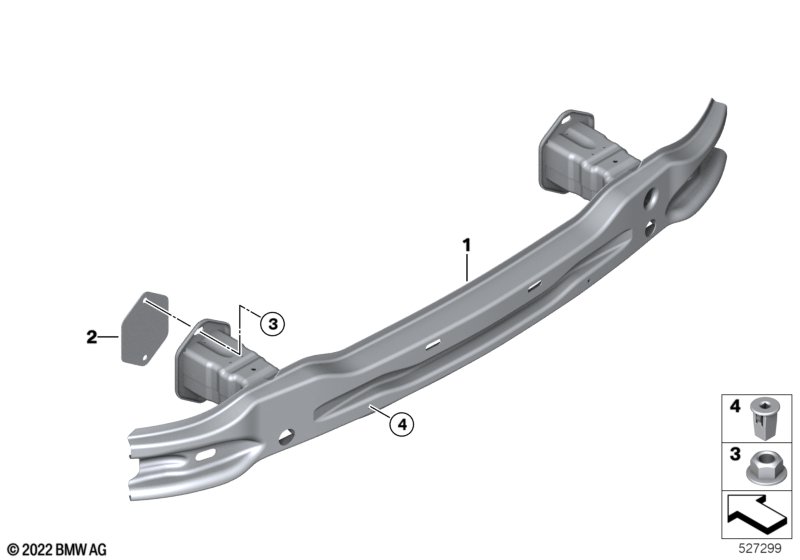

This Carrier, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 320iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Trailer coupling |
S3ACA=No |
|||||||||
| 01 | Carrier, bumper rear | ECE | 1 | 51127294886 | Shop at ECS Tuning | |||||
| 02 | Washer-gasket | 2 | 51127240917 | Shop at ECS Tuning | ||||||
| 03 | Hex nut | 4 | 07147266441 | Shop at ECS Tuning | ||||||
| 04 | Expanding nut | L=15MM, DMAX=12 | 2 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F34 GT 320iX Carrier, rear?
- This technical diagram illustrates the Carrier, rear within the Vehicle trim group for the 3 Series F34 GT 320iX produced during 2016. It provides a detailed exploded view of the components, identifying key parts such as the Carrier, bumper rear (Part #51127294886).
- Which models use the hardware listed in this Carrier, rear?
- The hardware and components featured in the Carrier, rear are specific to the 3 Series F34 GT 320iX produced during 2016. These technical specifications ensure that parts like the Carrier, bumper rear (51127294886) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carrier, rear assembly?
- Each item in the Carrier, rear corresponds to the numbered list below the illustration. For the 3 Series F34 GT 320iX, you can identify the Carrier, bumper rear by locating its position on the schematic, which then links to the official BMW part number 51127294886 for the Vehicle trim section.
