Luggage compartment sill trim for BMW 3 Series F34 GT 335iX (2016)

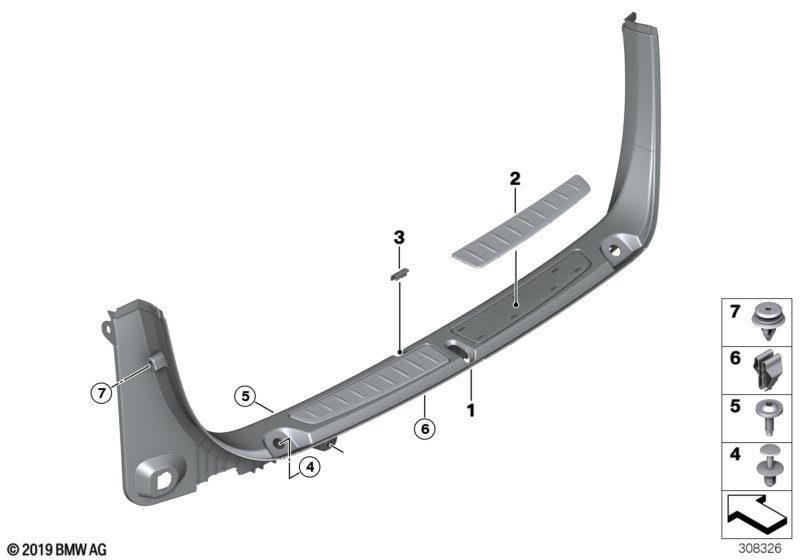

This Luggage compartment sill trim technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 335iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Loading sill cover | SCHWARZ | 1 | 51477325793 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
|||||||||
| 01 | Loading sill cover | OYSTER | 1 | 51477325792 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leather Dakota/veneto-beige/excl. seam |
KCDF=Yes LCDF=Yes LCFJ=Yes LCLY=Yes |
|||||||||
| 01 | Loading sill cover | VENETOBEIGE | 1 | 51477325791 | Shop at ECS Tuning | |||||
| 02 | Trim cover, insert, stainless steel, le | 1 | 51477298979 | Shop at ECS Tuning | ||||||
| 02 | Trim cover, insert, stainless steel, ri | 1 | 51477298980 | Shop at ECS Tuning | ||||||
| 03 | Cover for lock | SCHWARZ | 2 | 51477353522 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
|||||||||
| 03 | Cover for lock | OYSTER | 2 | 51477353521 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leather Dakota/veneto-beige/excl. seam |
KCDF=Yes LCDF=Yes LCFJ=Yes LCLY=Yes |
|||||||||
| 03 | Cover for lock | VENETOBEIGE | 2 | 51477353520 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | D = 8MM | 2 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Oval-head screw with washer | ISA M6X21 | 2 | 07147263759 | Shop at ECS Tuning | |||||
| 06 | Clamp | 4 | 07147321144 | Shop at ECS Tuning | ||||||
| 07 | Clip Natur | 2 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
