Interior mirror for BMW 5 Series F18 530Li (2013)

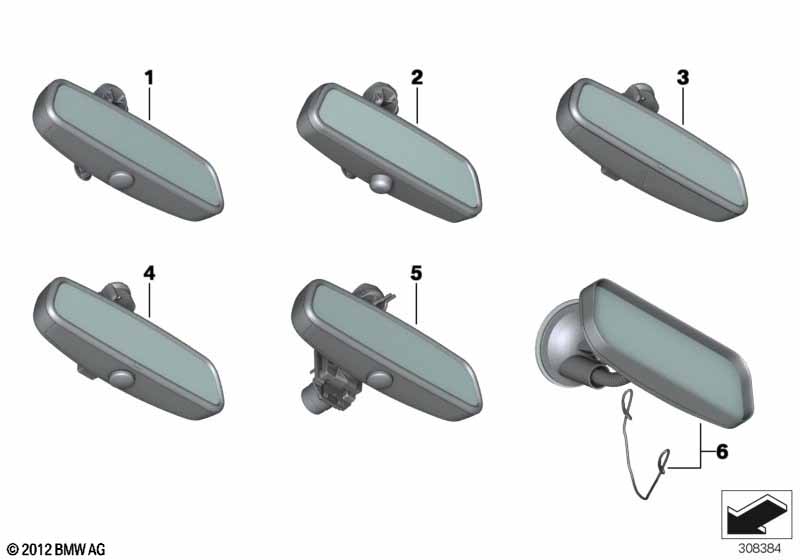

This Interior mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series F18 530Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles produced to 09/01/2013 |
|||||||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=No S430A=No S431A=No S5ACA=No |
|||||||||
| 01 | Interior-mirror, manual | 1 | 09/2012 | 51169243595 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=Yes S430A=No S431A=No S5ACA=No |
|||||||||
| 02 | Rearview mirror, manual / LED | 1 | 09/2012 | 51169243596 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=No S430A=Yes S431A=Yes S5ACA=No |
|||||||||
| 03 | Rearview mirror EC | 1 | 09/2012 | 51169274266 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=No S430A=Yes S431A=No S5ACA=No |
|||||||||
| 03 | Rearview mirror EC | 1 | 09/2012 | 51169274266 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=No S430A=No S431A=Yes S5ACA=No |
|||||||||
| 03 | Rearview mirror EC | 1 | 09/2012 | 51169274266 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and High-beam assistant and Lane departure warning and Road sign detection |
S302A=No S5ACA=Yes S5ADA=Yes S8THA=Yes |
|||||||||
| 03 | Rearview mirror EC | 1 | 09/2012 | 51169274266 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and High-beam assistant and Lane departure warning and Road sign detection |
S302A=No S5ACA=Yes S5ADA=Yes S8THA=No |
|||||||||
| 03 | Rearview mirror EC | 1 | 09/2012 | 51169274266 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and High-beam assistant and Lane departure warning and Road sign detection |
S302A=No S5ACA=Yes S5ADA=No S8THA=Yes |
|||||||||
| 03 | Rearview mirror EC | 1 | 09/2012 | 51169274266 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and High-beam assistant and Lane departure warning and Road sign detection |
S302A=Yes S5ACA=Yes S5ADA=Yes S8THA=Yes |
|||||||||
| 04 | Rearview mirror EC / LED | RUND | 1 | 09/2012 | 51169274267 | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and High-beam assistant and Lane departure warning and Road sign detection |
S302A=Yes S5ACA=Yes S5ADA=Yes S8THA=No |
|||||||||
| 04 | Rearview mirror EC / LED | RUND | 1 | 09/2012 | 51169274267 | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and High-beam assistant and Lane departure warning and Road sign detection |
S302A=Yes S5ACA=Yes S5ADA=No S8THA=Yes |
|||||||||
| 04 | Rearview mirror EC / LED | RUND | 1 | 09/2012 | 51169274267 | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=Yes S430A=Yes S431A=Yes S5ACA=No |
|||||||||
| 04 | Rearview mirror EC / LED | RUND | 1 | 09/2012 | 51169274267 | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=Yes S430A=Yes S431A=No S5ACA=No |
|||||||||
| 04 | Rearview mirror EC / LED | RUND | 1 | 09/2012 | 51169274267 | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=Yes S430A=No S431A=Yes S5ACA=No |
|||||||||
| 04 | Rearview mirror EC / LED | RUND | 1 | 09/2012 | 51169274267 | Shop at ECS Tuning | ||||
| For vehicles with Auxiliary inside mirror |
S123A=Yes |
|||||||||
| 06 | Additional interior rearview mirror | 1 | 51167267198 | Shop at ECS Tuning | ||||||
