Trim panel, trunk floor for BMW 3 Series F34 GT LCI 320dX (2020)

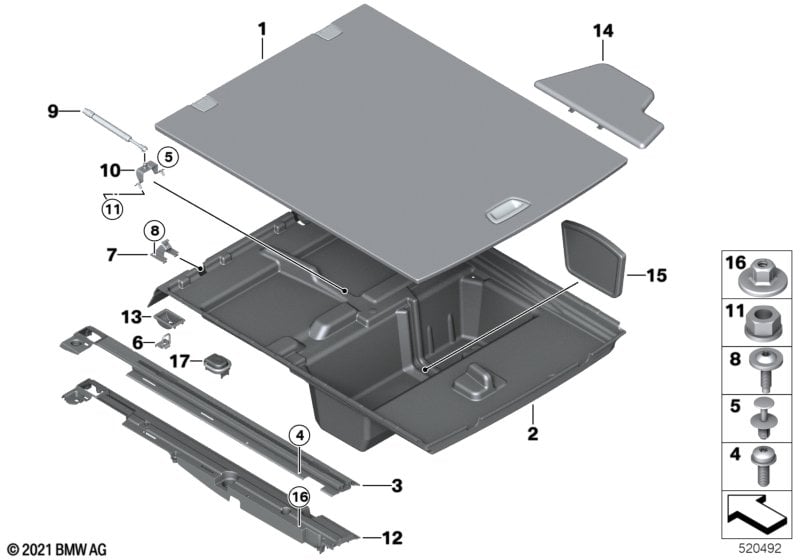

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT LCI 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor carpet, luggage compartment | ANTHRAZIT | 1 | 51477325507 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | ANTHRAZIT | 1 | 51477325502 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | OYSTER | 1 | 51477325509 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S493A=Yes CBDH=Yes LCL9=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | OYSTER | 1 | 51477325506 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leather Dakota/veneto-beige/excl. seam |
KCDF=Yes LCDF=Yes LCFJ=Yes LCLY=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | VENETOBEIGE | 1 | 51477325508 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leather Dakota/veneto-beige/excl. seam |
S493A=Yes KCDF=Yes LCDF=Yes LCFJ=Yes LCLY=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | VENETOBEIGE | 1 | 51477325505 | Shop at ECS Tuning | |||||
| 02 | Luggage compartment pan | 1 | 51477295585 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 03 | Lashing rail, left | 1 | 51477298059 | Shop at ECS Tuning | ||||||
| 03 | Lashing rail, right | 1 | 51477298060 | Shop at ECS Tuning | ||||||
| 04 | Fillister head screw | 6 | 07149113788 | $0.82 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | D = 8MM | 9 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Tie-down ring | 2 | 51477322199 | Shop at ECS Tuning | ||||||
| 07 | Bracket, hinge for floor panel | 2 | 51477315892 | Shop at ECS Tuning | ||||||
| 08 | Oval-head screw with washer | ISA M6X21 | 6 | 07147263759 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 09 | Gas strut for floor cargo panel | 1 | 51477317965 | Shop at ECS Tuning | ||||||
| 10 | Gas pressurized spring bracket | 1 | 51477318436 | Shop at ECS Tuning | ||||||
| 11 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Pad, side member, left | 1 | 51477295579 | Shop at ECS Tuning | ||||||
| 12 | Pad, side member, right | 1 | 51477295580 | Shop at ECS Tuning | ||||||
| 13 | Trim cover | SCHWARZ | 2 | 51477325811 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 13 | Trim cover for anchor rail | 2 | 51477342049 | Shop at ECS Tuning | ||||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
|||||||||
| 13 | Trim cover | OYSTER | 2 | 51477325809 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 13 | Trim cover | VENETOBEIGE | 2 | 51477325807 | NoS | Shop at ECS Tuning | ||||
| 14 | Trim cover, floor panel, right | ANTHRAZIT | 1 | 51477325510 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
|||||||||
| 14 | Trim cover, floor panel, right | OYSTER | 1 | 51477325516 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 14 | Trim cover, floor panel, right | VENETOBEIGE | 1 | 51477325514 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 15 | Dividing element | 1 | 51477288204 | Shop at ECS Tuning | ||||||
| 16 | Plastic capnut with washer | D=22MM | 4 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 17 | Lashing eye, lockable | 2 | 51477331198 | ENDED | Shop at ECS Tuning | |||||
