Headlining for BMW 5 Series F10 LCI 550i (2016)

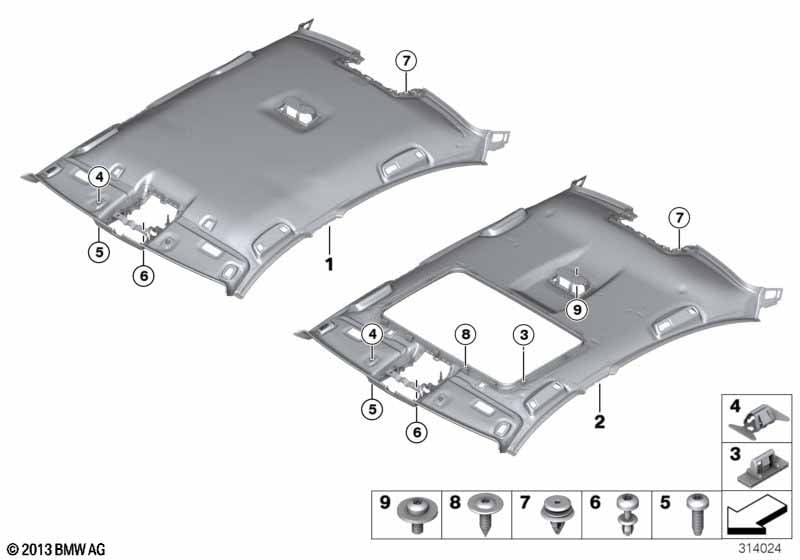

This Headlining technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 550i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite |
S403A=No S775A=Yes S776A=No |
|||||||||
| 01 | Headlining | ANTHRAZIT | 1 | 51448038177 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite |
S403A=No S775A=No S776A=Yes |
|||||||||
| 01 | Headlining | ALCANTARA | 1 | 51448038132 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and Fabric "Diagonal/anthracite" or Imitation leather "Leatherette/black" or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
S403A=No S775A=No S776A=No AWAT=Yes K8SW=Yes LCLZ=Yes LCSW=Yes |
|||||||||
| 01 | Headlining | EVERESTGRAU | 1 | 51449173445 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leatherette venetobeige black or Leather "Dakota/veneto-beige" or Leather "Dakota/zimt-braun" or Leather Dakota/veneto-beige/excl. seam or Leather Dakota/oyster/Exclusive seam or Leather 'Dakota' venetobeige black or Leathr 'Dakota' venetobeige blk ext seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Leather Nappa/mocca/Exclusive seam |
S403A=No S775A=No S776A=No AWDF=Yes K8DF=Yes K8V1=Yes LCDF=Yes LCEZ=Yes LCLY=Yes LCOX=Yes LCV1=Yes LCV2=Yes LZET=Yes LZMW=Yes |
|||||||||
| 01 | Headlining | OYSTER | 1 | 07/2013 | 51449197403 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and Veneto-beige or elfenbein-weiss/oyster Exclusive seam or elfenbein-weiss/oyster Exclusive seam or elfenbein-weiss/oyster Exclusive seam or anthracite or Veneto beige exclusive seam or Mocha or oyster Exclusive seam or oyster Exclusive seam or oyster Exclusive seam or Black Exclusive seam |
S403A=No S775A=No S776A=No DF=Yes EO=Yes ET=Yes EU=Yes IZ=Yes LY=Yes MW=Yes OT=Yes OU=Yes OX=Yes SJ=Yes |
|||||||||
| 01 | Headlining | OYSTER | 1 | 51449197403 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite |
S403A=Yes S775A=Yes S776A=No |
|||||||||
| 02 | Headlining, lift-up & slide-back sunroof | ANTHRAZIT | 1 | 51448038178 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite |
S403A=Yes S775A=No S776A=Yes |
|||||||||
| 02 | Headlining, lift-up & slide-back sunroof | ALCANTARA | 1 | 51448038134 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and anthracite or Black Exclusive seam or Black |
S403A=Yes S775A=No S776A=No AT=Yes LZ=Yes SW=Yes |
|||||||||
| 02 | Headlining, lift-up & slide-back sunroof | EVERESTGRAU | 1 | 51449173444 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and Fabric "diagonal/veneto-beige" or Imit. leather "Leatherette/veneto-beige" or Leatherette venetobeige black or Leather "Dakota/veneto-beige" or Leather "Dakota/zimt-braun" or Leather Dakota/veneto-beige/excl. seam or Leather Dakota/oyster/Exclusive seam or Leather 'Dakota' venetobeige black or Leathr 'Dakota' venetobeige blk ext seam or Lthr Nappa/elfenbein-weiss/Exclusiv seam or Leather Nappa/mocca/Exclusive seam |
S403A=Yes S775A=No S776A=No AWDF=Yes K8DF=Yes K8V1=Yes LCDF=Yes LCEZ=Yes LCLY=Yes LCOX=Yes LCV1=Yes LCV2=Yes LZET=Yes LZMW=Yes |
|||||||||
| 02 | Headlining, lift-up & slide-back sunroof | OYSTER | 1 | 07/2013 | 51447231003 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and Veneto-beige or elfenbein-weiss/oyster Exclusive seam or elfenbein-weiss/oyster Exclusive seam or elfenbein-weiss/oyster Exclusive seam or anthracite or Veneto beige exclusive seam or Mocha or oyster Exclusive seam or oyster Exclusive seam or oyster Exclusive seam or Black Exclusive seam |
S403A=Yes S775A=No S776A=No DF=Yes EO=Yes ET=Yes EU=Yes IZ=Yes LY=Yes MW=Yes OT=Yes OU=Yes OX=Yes SJ=Yes |
|||||||||
| 02 | Headlining, lift-up & slide-back sunroof | OYSTER | 1 | 51447231003 | Shop at ECS Tuning | |||||
| 03 | Clip, panoramic glass sunroof | X | 07147212593 | $0.36 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 03 | Clip, headlining | WEISS | 8 | 51447139333 | $2.75 | Shop at ECS Tuning | ||||
| 04 | Clip | 2 | 51167145718 | $1.11 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | ISA ST4.2X13 | 2 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Expanding rivet | D=7,5MM | 2 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 07 | Clip Natur | 2 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 08 | Fillister head self-tapp.screw w collar | ST 3,5X12 | 5 | 07147139407 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | 1 | 51449128842 | $0.53 | Shop at ECS Tuning | |||||
