Mounting parts, I-panel, bottom for BMW 1 Series F20 LCI 118d (2019)

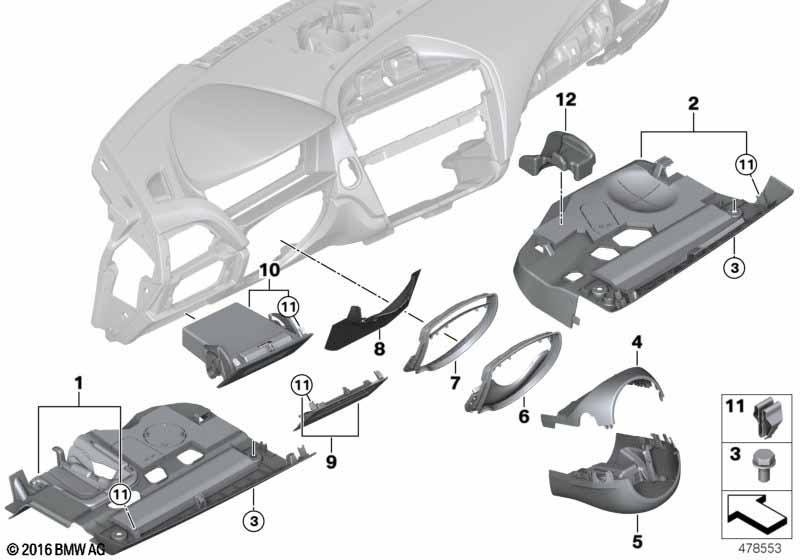

This Mounting parts, I-panel, bottom technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel foot controls | SCHWARZ | 1 | 51459242896 | Shop at ECS Tuning | |||||
| 02 | Passenger's footwell trim panel | SCHWARZ | 1 | 51459236603 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X16 ZNNIV SW | 4 | 07119907338 | Shop at ECS Tuning | |||||
| 04 | Trim panel, steering column, top | 1 | 02/2017 | 61316823466 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater |
S248A=No |
|||||||||
| 05 | Trim panel, steering column, bottom | 1 | 02/2017 | 61316823467 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 05 | Trim panel, steering column, bottom | 1 | 02/2017 | 61316823468 | Shop at ECS Tuning | |||||
| 07 | Joint cover, steering column | SCHWARZ | 1 | 07/2017 | 51459394304 | Shop at ECS Tuning | ||||
| 08 | Joint cover, steering column, lower | 1 | 05/2014 | 51459321841 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Active cruise control+Stop&Go function |
S5ASA=Yes S5DFA=Yes |
|||||||||
| 09 | Trim cover, driver assistance system | SCHWARZ | 1 | 51459236762 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Driving Assistant and Active cruise control+Stop&Go function |
S493A=Yes S5ASA=No S5DFA=No |
|||||||||
| 10 | Folding box, driver's side | SCHWARZ | 1 | 51459236585 | +core | Shop at ECS Tuning | ||||
| 11 | Clamp | X | 07147321144 | Shop at ECS Tuning | ||||||
| 12 | Absorber for steering shaft seal | 1 | 51456822557 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
