Instrument carrier / mounting parts for BMW 5 Series E39 528i (2000)

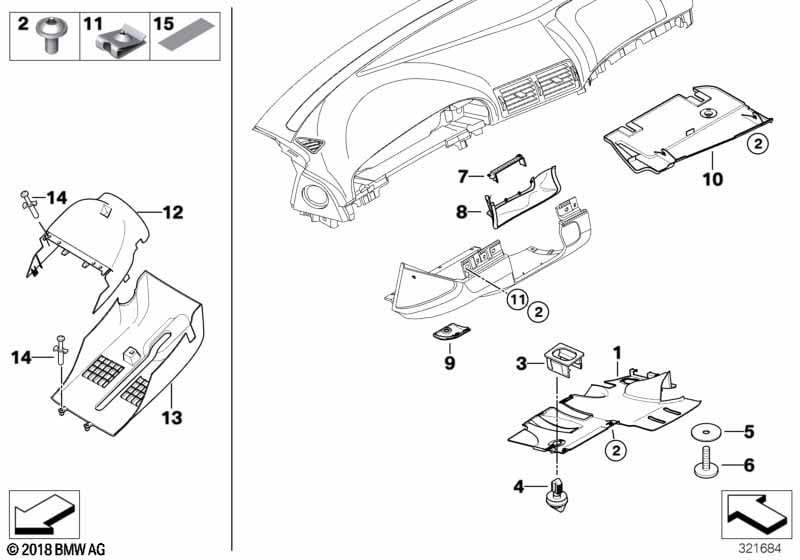

This Instrument carrier / mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel foot controls | SCHWARZ | 1 | 09/1997 | 51458233512 | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST4,2X16-Z2 | X | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Insert | 2 | 51458166654 | $0.35 | Shop at ECS Tuning | |||||
| 04 | Lock | 2 | 51711916197 | $1.35 | Shop at ECS Tuning | |||||
| 05 | Gasket | 2 | 51131906872 | $0.17 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | 3X16MM | 2 | 51458192765 | $0.52 | Shop at ECS Tuning | ||||
| 07 | Covering steering column | SCHWARZ | 1 | 51458186935 | Shop at ECS Tuning | |||||
| 10 | Trim panel door entrance left | GRAU | 1 | 51458223183 | Shop at ECS Tuning | |||||
| 10 | Trim panel door entrance left | SANDBEIGE | 1 | 51458223185 | Shop at ECS Tuning | |||||
| 10 | Trim panel door entrance left | SCHWARZ | 1 | 51458223279 | Shop at ECS Tuning | |||||
| 11 | C-clip nut | X | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 12 | Trim panel upper part | 1 | 03/1999 | 32311095635 | $90.32 | Shop at ECS Tuning | ||||
| 13 | Lower trim panel | 1 | 03/1999 | 32311095778 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Comfort seat with memory or Seat adjuster, electric, with memory |
S456A=Yes S459A=Yes |
|||||||||
| 13 | Lower trim panel | 1 | 03/1999 | 32311095784 | Shop at ECS Tuning | |||||
| 14 | Clamp | 2 | 51131885399 | $0.35 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Instrument carrier / mounting parts?
- This technical diagram illustrates the Instrument carrier / mounting parts within the Vehicle trim group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Trim panel foot controls (Part #51458233512).
- Which models use the hardware listed in this Instrument carrier / mounting parts?
- The hardware and components featured in the Instrument carrier / mounting parts are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Trim panel foot controls (51458233512) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Instrument carrier / mounting parts assembly?
- Each item in the Instrument carrier / mounting parts corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Trim panel foot controls by locating its position on the schematic, which then links to the official BMW part number 51458233512 for the Vehicle trim section.
