Storage tray, center console for BMW 5 Series F10 LCI 520i (2016)

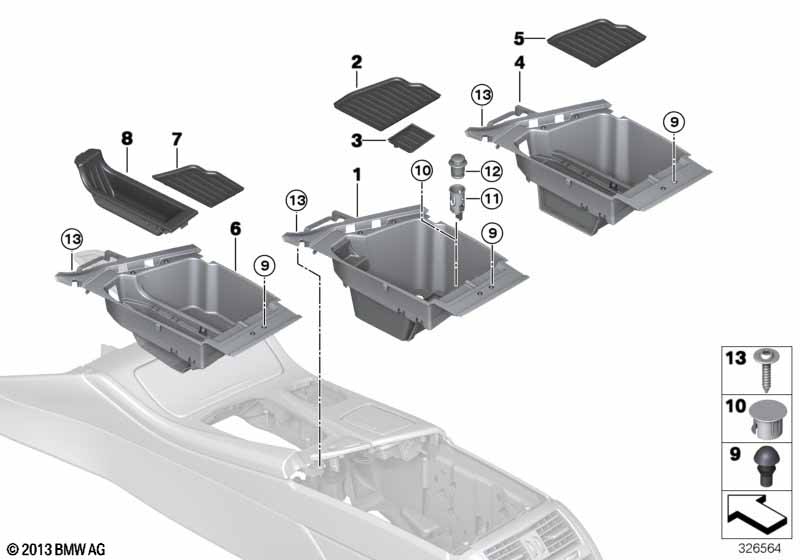

This Storage tray, center console technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Autom. climate control with 4-zone ctrl and Convenience phone, expanded Smartphone |
S4NBA=No S6NSA=No |
|||||||||
| 01 | Storage compartment, armrest | 1 | 51169277267 | Shop at ECS Tuning | ||||||
| 02 | Insert mat, storage compartment, front | 1 | 51169288722 | Shop at ECS Tuning | ||||||
| 03 | Rubber insert, oddments tray rear | 1 | 51169288723 | Shop at ECS Tuning | ||||||
| For vehicles with Autom. climate control with 4-zone ctrl and Convenience phone, expanded Smartphone |
S4NBA=No S6NSA=Yes |
|||||||||
| 04 | Storage compartment, armrest | 1 | 51169277346 | Shop at ECS Tuning | ||||||
| 05 | Insert mat, storage compartment | 1 | 51169288728 | Shop at ECS Tuning | ||||||
| For vehicles with Autom. climate control with 4-zone ctrl |
S4NBA=Yes |
|||||||||
| 06 | Storage compartment, armrest | 1 | 51169206729 | Shop at ECS Tuning | ||||||
| 07 | Insert mat, storage compartment | 1 | 51169206730 | Shop at ECS Tuning | ||||||
| For vehicles with Autom. climate control with 4-zone ctrl and Convenience phone, expanded Smartphone |
S4NBA=Yes S6NSA=No |
|||||||||
| 08 | Oddments tray | 1 | 51169206734 | Shop at ECS Tuning | ||||||
| 09 | Bump stop | 4 | 51169206725 | Shop at ECS Tuning | ||||||
| For vehicles with Supplementary 12V sockets |
S575A=No |
|||||||||
| 10 | Dummy plug, storage tray, center armrest | 1 | 51169288724 | Shop at ECS Tuning | ||||||
| For vehicles with Supplementary 12V sockets |
S575A=Yes |
|||||||||
| 11 | Socket for cigarette lighter | 1 | 11/2014 | 61349302183 | Shop at ECS Tuning | |||||
| 12 | Stopper plug-in socket | 1 | 61349316116 | Shop at ECS Tuning | ||||||
| 13 | Oval-head screw with washer | DELTA PT4X20 | 1 | 07149185673 | Shop at ECS Tuning | |||||
