Mounting parts, center console, rear for BMW 5 Series F10 LCI 520d (2016)

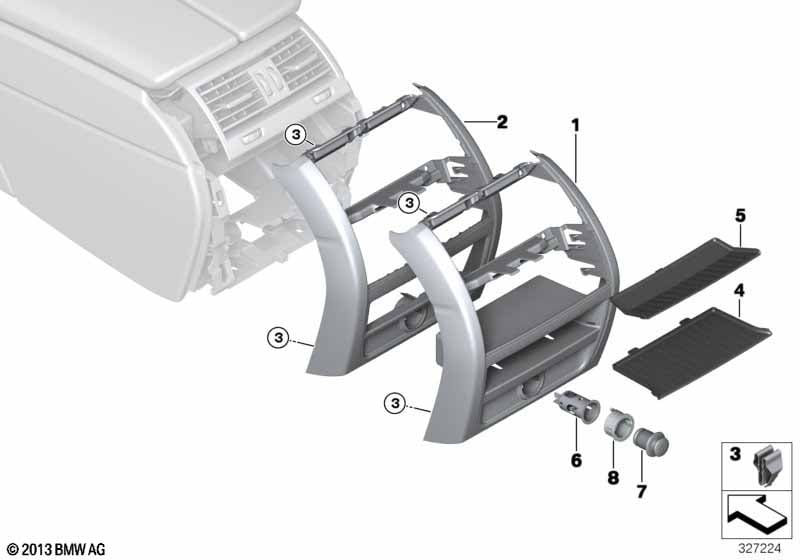

This Mounting parts, center console, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Rear Professional entertainment center |
S6FHA=No |
|||||||||
| 01 | Cover centre console, rear | SCHWARZ | 1 | 51169206781 | Shop at ECS Tuning | |||||
| For vehicles with Rear Professional entertainment center and Veneto-beige or Veneto beige exclusive seam |
S6FHA=No DF=Yes LY=Yes |
|||||||||
| 01 | Cover centre console, rear | VENETOBEIGE | 1 | 51169206782 | Shop at ECS Tuning | |||||
| For vehicles with Rear Professional entertainment center and elfenbein-weiss/oyster Exclusive seam or elfenbein-weiss/oyster Exclusive seam or oyster Exclusive seam or oyster Exclusive seam |
S6FHA=No EO=Yes EU=Yes OT=Yes OU=Yes |
|||||||||
| 01 | Cover centre console, rear | OYSTER | 1 | 51169206788 | +core | Shop at ECS Tuning | ||||
| For vehicles with Rear Professional entertainment center |
S6FHA=Yes |
|||||||||
| 02 | Cover centre console, rear | SCHWARZ | 1 | 51169206789 | Shop at ECS Tuning | |||||
| For vehicles with Rear Professional entertainment center and Veneto-beige or Veneto beige exclusive seam |
S6FHA=Yes DF=Yes LY=Yes |
|||||||||
| 02 | Cover centre console, rear | VENETOBEIGE | 1 | 51169206790 | Shop at ECS Tuning | |||||
| For vehicles with Rear Professional entertainment center and elfenbein-weiss/oyster Exclusive seam or elfenbein-weiss/oyster Exclusive seam or oyster Exclusive seam or oyster Exclusive seam |
S6FHA=Yes EO=Yes EU=Yes OT=Yes OU=Yes |
|||||||||
| 02 | Cover centre console, rear | OYSTER | 1 | 51169206792 | Shop at ECS Tuning | |||||
| 03 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| For vehicles with Rear Professional entertainment center |
S6FHA=No |
|||||||||
| 04 | Insert mat, center console, rear | 1 | 51169206799 | Shop at ECS Tuning | ||||||
| For vehicles with Seat heating, rear and Autom. climate control with 4-zone ctrl |
S496A=Yes S4NBA=No |
|||||||||
| 05 | Insert velour | 1 | 51169179818 | Shop at ECS Tuning | ||||||
| For vehicles with Seat heating, rear and Autom. climate control with 4-zone ctrl |
S496A=No S4NBA=No |
|||||||||
| 05 | Insert velour | 1 | 51169179818 | Shop at ECS Tuning | ||||||
| 06 | Socket for cigarette lighter | 1 | 11/2014 | 61349302183 | Shop at ECS Tuning | |||||
| 07 | Stopper plug-in socket | 1 | 61349316116 | Shop at ECS Tuning | ||||||
| 08 | Illuminated ring, transparent | 1 | 51168222182 | $1.20 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
