Trim cover, rear for BMW 5 Series F07 GT LCI 528i

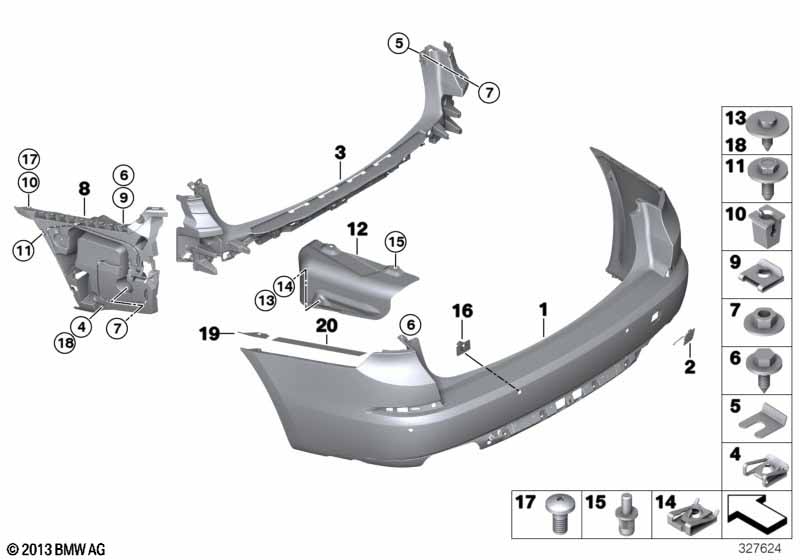

This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series F07 GT LCI 528i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel, primed, rear | PDC | 1 | 51127341772 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Foam belt | 700X20X6 | 1 | 51122287476 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122452065 | Shop at ECS Tuning | |||||
| 02 | Cover, towing eye, primed, rear | 1 | 51127341773 | Shop at ECS Tuning | ||||||
| 03 | Guide, center rear | 1 | 51127331567 | Shop at ECS Tuning | ||||||
| 04 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Washer | 5 | 07147236240 | Shop at ECS Tuning | ||||||
| 06 | Hex head screw | ST4,8X16-ZNS3 | 8 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M6 | X | 07147155614 | $0.91 | Shop at ECS Tuning | ||||
| 07 | Combination nut | 3 | 07147305178 | Shop at ECS Tuning | ||||||
| 08 | Mount, rear left | 1 | 51127331565 | Shop at ECS Tuning | ||||||
| 08 | Mount, rear right | 1 | 51127331566 | Shop at ECS Tuning | ||||||
| 09 | Body nut | ST4,8-13-ZNS3 | 6 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 11 | Hexagon screw for plastic | 8 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 12 | Heat insulation bumper, rear left | 1 | 51487193501 | $17.00 | Shop at ECS Tuning | |||||
| 12 | Sound insulation, rear right bumper | 1 | 51487193502 | $17.00 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | TS5X20 SW8 D=22 | 2 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 14 | C-clip nut | 2 | 51717065773 | Shop at ECS Tuning | ||||||
| 15 | Rivet pin | M6X13,5 | 2 | 07147209624 | $0.91 | Shop at ECS Tuning | ||||
| 16 | Set of mounts for PDC sensor, rear | 1 | 51122350423 | Shop at ECS Tuning | ||||||
| 17 | Fillister head screw | M8X18 ZNS3 | 4 | 07119905741 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | TS5X20 SW8 D=16 | 4 | 07147148437 | $0.44 | Shop at ECS Tuning | ||||
| 19 | Left protection foil | 1 | 51127268375 | Shop at ECS Tuning | ||||||
| 19 | Right protection foil | 1 | 51127268376 | Shop at ECS Tuning | ||||||
| 20 | Protection foil | 2 | 51127268384 | Shop at ECS Tuning | ||||||
