Locking system, door, front for BMW 4 Series F32 418d (2017)

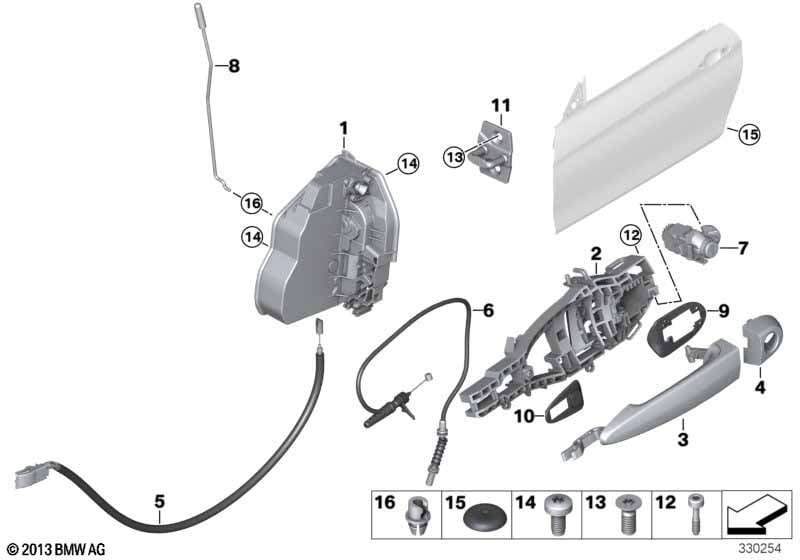

This Locking system, door, front technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 418d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | System latch, right | 1 | 51217229458 | $176.25 | Shop at ECS Tuning | |||||
| 01 | System latch, left | 1 | 51217229461 | Shop at ECS Tuning | ||||||
| For vehicles with Thiefproofing device |
S8TGA=Yes |
|||||||||
| 01 | System latch, left | 1 | 51217202143 | $171.13 | Shop at ECS Tuning | |||||
| 01 | System latch, right | 1 | 51217202146 | $171.13 | Shop at ECS Tuning | |||||
| 02 | Carrier, outside door handle, front left | HAA | 1 | 51217290115 | Shop at ECS Tuning | |||||
| 02 | Carrier, outside door handle,front right | 1 | 51217242568 | +core | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 03 | Handle bracket, left prime-coated | 1 | 51217332565 | Shop at ECS Tuning | ||||||
| 03 | Handle bracket, right prime-coated | 1 | 51217332566 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 03 | Handle bracket, left prime-coated | 1 | 51217207561 | $22.10 | Shop at ECS Tuning | |||||
| 03 | Handle bracket, right prime-coated | 1 | 51217207562 | $22.10 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and kastanien-bronze metallic When ordering indicate color code |
S322A=Yes WC29=Yes |
|||||||||
| 03 | grab handle, paint finish, left | CODE - UNI/MET. | 1 | 51217326917 | NoS | Shop at ECS Tuning | ||||
| 04 | Covering door, primed right | 1 | 51217162432 | $22.50 | Shop at ECS Tuning | |||||
| 04 | cover, lock cylinder primed, left | 1 | 51217162437 | $27.07 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 04 | cover, lock cylinder painted, left | CODE - UNI/MET. | 1 | 51210399167 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Cover right painted | CODE - UNI/MET. | 1 | 51210399178 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 04 | Covering door, primed right | 1 | 51217162434 | $22.50 | Shop at ECS Tuning | |||||
| 04 | cover, lock cylinder primed, left | 1 | 51217162439 | $27.41 | Shop at ECS Tuning | |||||
| For vehicles with Light package When ordering indicate color code |
S563A=Yes |
|||||||||
| 04 | cover, lock cylinder painted, left | CODE - UNI/MET. | 1 | 51210399171 | $74.49 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Cover right painted | CODE - UNI/MET. | 1 | 51210399182 | ENDED, NoS | Shop at ECS Tuning | ||||
| 05 | Bowden cable, front | 2 | 51217281604 | Shop at ECS Tuning | ||||||
| 06 | Bowd.cable,outside door handle front | 2 | 51217242575 | Shop at ECS Tuning | ||||||
| 07 | Lock cylinder according to code, left | 1 | 51217310727 | +core | Shop at ECS Tuning | |||||
| 07 | Lock cylinder according to code, right | 1 | 51217310728 | +core | Shop at ECS Tuning | |||||
| 07 | Lock cylinder with key, left | 1 | 51217310729 | +core | Shop at ECS Tuning | |||||
| 07 | Lock cylinder with key, right | 1 | 51217310730 | +core | Shop at ECS Tuning | |||||
| 08 | Left operating rod | 1 | 51217281601 | Shop at ECS Tuning | ||||||
| 08 | Right operating rod | 1 | 51217281602 | Shop at ECS Tuning | ||||||
| 09 | Lock cylinder base left | 1 | 51217060667 | $1.60 | Shop at ECS Tuning | |||||
| 09 | Lock cylinder base right | 1 | 51217060668 | $1.60 | Shop at ECS Tuning | |||||
| 10 | Handle bracket base, left | 1 | 51217060293 | $1.35 | Shop at ECS Tuning | |||||
| 10 | Handle bracket base, right | 1 | 51217060294 | $1.35 | Shop at ECS Tuning | |||||
| 11 | Catch bracket | 2 | 51217312545 | Shop at ECS Tuning | ||||||
| 12 | Inner hex bolt | M5 | 1 | 51217133972 | $1.14 | Shop at ECS Tuning | ||||
| 13 | Torx-countersunk head screw | ISA M8X28 | 4 | 51217130110 | $0.52 | Shop at ECS Tuning | ||||
| 14 | Oval-head machine screw, self-threading | M6X13 ZNS3 | 6 | 07147317732 | Shop at ECS Tuning | |||||
| 15 | Blind plug | D=20MM | 1 | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 16 | Circlip | 2 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
