Rear window shelf for BMW 4 Series F32 430iX (2017)

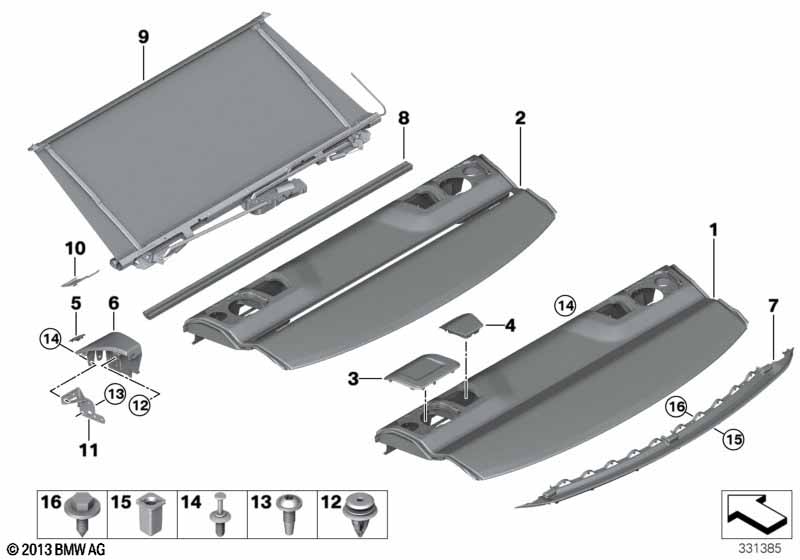

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 430iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite |
S415A=No S688A=No S775A=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51468059291 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover f left loudspeaker | SCHWARZ | 1 | 51467321885 | Shop at ECS Tuning | |||||
| -- | Cover f right loudspeaker | SCHWARZ | 1 | 51467321886 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite |
S415A=No S688A=Yes S775A=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51468059291 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S415A=No S688A=No S775A=No CBDH=Yes LCL9=Yes |
|||||||||
| 01 | Rear window shelf | OYSTER/OYSTER | 1 | 51467321444 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover f left loudspeaker | OYSTER | 1 | 51467321889 | Shop at ECS Tuning | |||||
| -- | Cover f right loudspeaker | OYSTER | 1 | 51467321890 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S415A=No S688A=Yes S775A=No CBDH=Yes LCL9=Yes |
|||||||||
| 01 | Rear window shelf | OYSTER/OYSTER | 1 | 51467321444 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Sensatec/veneto-beige or Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black |
S415A=No S688A=Yes S775A=No KCDF=Yes KCV1=Yes LCDF=Yes LCFJ=Yes LCFL=Yes LCLY=Yes LCV1=Yes |
|||||||||
| 01 | Rear window shelf | VENETOBEIGE | 1 | 51467321374 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Sensatec/veneto-beige or Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black |
S415A=No S688A=No S775A=No KCDF=Yes KCV1=Yes LCDF=Yes LCFJ=Yes LCFL=Yes LCLY=Yes LCV1=Yes |
|||||||||
| 01 | Rear window shelf | VENETOBEIGE | 1 | 51467321374 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover f left loudspeaker | VENETOBEIGE | 1 | 51467321887 | Shop at ECS Tuning | |||||
| -- | Cover f right loudspeaker | VENETOBEIGE | 1 | 51467321888 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Sensatec/black/Accent red or Sensatec/black or Sensatec/veneto-beige or Leath.Dakota/elfenbein-white/acc.oyster or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/Accent oyster dark or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather Dakota/cognac/accent brown or Leather Dakota/cognac/accent brown or Leather "Dakota"/schwarz or Leather Dakota/nacht-blue/accent oyster or Leather 'Dakota' venetobeige black |
S415A=No S688A=No S775A=No KCL3=Yes KCSW=Yes KCV1=Yes LCFH=Yes LCFL=Yes LCL3=Yes LCL5=Yes LCL8=Yes LCLX=Yes LCLZ=Yes LCNL=Yes LCRY=Yes LCRZ=Yes LCSW=Yes LCTX=Yes LCV1=Yes |
|||||||||
| 01 | Rear window shelf | SCHWARZ | 1 | 51467321377 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover f left loudspeaker | SCHWARZ | 1 | 51467321885 | Shop at ECS Tuning | |||||
| -- | Cover f right loudspeaker | SCHWARZ | 1 | 51467321886 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Sensatec/black/Accent red or Sensatec/black or Sensatec/veneto-beige or Leath.Dakota/elfenbein-white/acc.oyster or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/Accent oyster dark or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather Dakota/cognac/accent brown or Leather Dakota/cognac/accent brown or Leather "Dakota"/schwarz or Leather Dakota/nacht-blue/accent oyster or Leather 'Dakota' venetobeige black |
S415A=No S688A=Yes S775A=No KCL3=Yes KCSW=Yes KCV1=Yes LCFH=Yes LCFL=Yes LCL3=Yes LCL5=Yes LCL8=Yes LCLX=Yes LCLZ=Yes LCNL=Yes LCRY=Yes LCRZ=Yes LCSW=Yes LCTX=Yes LCV1=Yes |
|||||||||
| 01 | Rear window shelf | SCHWARZ | 1 | 51467321377 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite |
S415A=Yes S688A=Yes S775A=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | ANTHRAZIT | 1 | 51468059292 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite |
S415A=Yes S688A=No S775A=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | ANTHRAZIT | 1 | 51468059292 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover f left loudspeaker | SCHWARZ | 1 | 51467321885 | Shop at ECS Tuning | |||||
| -- | Cover f right loudspeaker | SCHWARZ | 1 | 51467321886 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S415A=Yes S688A=Yes S775A=No CBDH=Yes LCL9=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | OYSTER/OYSTER | 1 | 51467321442 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S415A=Yes S688A=No S775A=No CBDH=Yes LCL9=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | OYSTER/OYSTER | 1 | 51467321442 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover f left loudspeaker | OYSTER | 1 | 51467321889 | Shop at ECS Tuning | |||||
| -- | Cover f right loudspeaker | OYSTER | 1 | 51467321890 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Sensatec/veneto-beige or Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black |
S415A=Yes S688A=No S775A=No KCDF=Yes KCV1=Yes LCDF=Yes LCFJ=Yes LCFL=Yes LCLY=Yes LCV1=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | VENETOBEIGE | 1 | 51467321370 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover f left loudspeaker | VENETOBEIGE | 1 | 51467321887 | Shop at ECS Tuning | |||||
| -- | Cover f right loudspeaker | VENETOBEIGE | 1 | 51467321888 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Sensatec/veneto-beige or Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black |
S415A=Yes S688A=Yes S775A=No KCDF=Yes KCV1=Yes LCDF=Yes LCFJ=Yes LCFL=Yes LCLY=Yes LCV1=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | VENETOBEIGE | 1 | 51467321370 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Sensatec/black/Accent red or Sensatec/black or Sensatec/veneto-beige or Leath.Dakota/elfenbein-white/acc.oyster or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/Accent oyster dark or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather Dakota/cognac/accent brown or Leather Dakota/cognac/accent brown or Leather "Dakota"/schwarz or Leather Dakota/nacht-blue/accent oyster or Leather 'Dakota' venetobeige black |
S415A=Yes S688A=Yes S775A=No KCL3=Yes KCSW=Yes KCV1=Yes LCFH=Yes LCFL=Yes LCL3=Yes LCL5=Yes LCL8=Yes LCLX=Yes LCLZ=Yes LCNL=Yes LCRY=Yes LCRZ=Yes LCSW=Yes LCTX=Yes LCV1=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | SCHWARZ | 1 | 51467321373 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear and Harman/Kardon Surround Sound system and Headlining anthracite and Sensatec/black/Accent red or Sensatec/black or Sensatec/veneto-beige or Leath.Dakota/elfenbein-white/acc.oyster or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/black/Accent oyster dark or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather Dakota/cognac/accent brown or Leather Dakota/cognac/accent brown or Leather "Dakota"/schwarz or Leather Dakota/nacht-blue/accent oyster or Leather 'Dakota' venetobeige black |
S415A=Yes S688A=No S775A=No KCL3=Yes KCSW=Yes KCV1=Yes LCFH=Yes LCFL=Yes LCL3=Yes LCL5=Yes LCL8=Yes LCLX=Yes LCLZ=Yes LCNL=Yes LCRY=Yes LCRZ=Yes LCSW=Yes LCTX=Yes LCV1=Yes |
|||||||||
| 02 | Storage tray, retracting sun blind | SCHWARZ | 1 | 51467321373 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover f left loudspeaker | SCHWARZ | 1 | 51467321885 | Shop at ECS Tuning | |||||
| -- | Cover f right loudspeaker | SCHWARZ | 1 | 51467321886 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S688A=Yes S775A=No CBDH=Yes LCL9=Yes |
|||||||||
| 03 | Cover f left loudspeaker | OYSTER | 1 | 51467321889 | Shop at ECS Tuning | |||||
| 03 | Cover f right loudspeaker | OYSTER | 1 | 51467321890 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite and Sensatec/veneto-beige or Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black |
S688A=Yes S775A=No KCDF=Yes KCV1=Yes LCDF=Yes LCFJ=Yes LCFL=Yes LCLY=Yes LCV1=Yes |
|||||||||
| 03 | Cover f left loudspeaker | VENETOBEIGE | 1 | 51467321887 | Shop at ECS Tuning | |||||
| 03 | Cover f right loudspeaker | VENETOBEIGE | 1 | 51467321888 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Headlining anthracite and |
S688A=Yes S775A=Yes |
|||||||||
| 03 | Cover f left loudspeaker | SCHWARZ | 1 | 51467321885 | Shop at ECS Tuning | |||||
| 03 | Cover f right loudspeaker | SCHWARZ | 1 | 51467321886 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 04 | Trim cover for Top Tether | SCHWARZ | 1 | 51467287104 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S775A=No CBDH=Yes LCL9=Yes |
|||||||||
| 04 | Trim cover for Top Tether | OYSTER | 1 | 51467287100 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Sensatec/veneto-beige or Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black |
S775A=No KCDF=Yes KCV1=Yes LCDF=Yes LCFJ=Yes LCFL=Yes LCLY=Yes LCV1=Yes |
|||||||||
| 04 | Trim cover for Top Tether | VENETOBEIGE | 1 | 51467287103 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and |
S775A=No |
|||||||||
| 04 | Trim cover for Top Tether | SCHWARZ | 1 | 51467287104 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
|||||||||
| 05 | Cover for belt slot, left | OYSTER | 1 | 51467366239 | Shop at ECS Tuning | |||||
| 05 | Cover for belt slot, right | OYSTER | 1 | 51467366240 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige or Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black |
KCDF=Yes KCV1=Yes LCDF=Yes LCFJ=Yes LCFL=Yes LCLY=Yes LCV1=Yes |
|||||||||
| 05 | Cover for belt slot, left | VENETOBEIGE | 1 | 51467366237 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover for belt slot, right | VENETOBEIGE | 1 | 51467366238 | NoS | Shop at ECS Tuning | ||||
| 05 | Cover for belt slot, left | SCHWARZ | 1 | 51467366235 | Shop at ECS Tuning | |||||
| 05 | Cover for belt slot, right | SCHWARZ | 1 | 51467366236 | Shop at ECS Tuning | |||||
| 06 | Cover, belt outlet, right | SCHWARZ | 1 | 51467321762 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 06 | Cover, belt outlet, left | SCHWARZ | 1 | 51467321761 | Shop at ECS Tuning | |||||
| 06 | Cover, belt outlet, right | SCHWARZ | 1 | 51467321762 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
|||||||||
| 06 | Cover, belt outlet, left | OYSTER | 1 | 51467321765 | Shop at ECS Tuning | |||||
| 06 | Cover, belt outlet, right | OYSTER | 1 | 51467321766 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and Sensatec/veneto-beige or Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black |
S775A=No KCDF=Yes KCV1=Yes LCDF=Yes LCFJ=Yes LCFL=Yes LCLY=Yes LCV1=Yes |
|||||||||
| 06 | Cover, belt outlet, left | VENETOBEIGE | 1 | 51467321763 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover, belt outlet, right | VENETOBEIGE | 1 | 51467321764 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover, belt outlet, left | SCHWARZ | 1 | 51467321761 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 07 | Cover, luggage screen | SCHWARZ | 1 | 51467321757 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
|||||||||
| 07 | Cover, luggage screen | OYSTER | 1 | 51467321759 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/veneto-beige or Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leath.Dakota/veneto-beige/accent oyster or Leather Dakota/veneto-beige/excl. seam or Leather 'Dakota' venetobeige black |
KCDF=Yes KCV1=Yes LCDF=Yes LCFJ=Yes LCFL=Yes LCLY=Yes LCV1=Yes |
|||||||||
| 07 | Cover, luggage screen | VENETOBEIGE | 1 | 51467321758 | NoS | Shop at ECS Tuning | ||||
| 07 | Cover, luggage screen | SCHWARZ | 1 | 51467321757 | Shop at ECS Tuning | |||||
| 08 | Trim cover for load-through | 1 | 51477240785 | Shop at ECS Tuning | ||||||
| For vehicles with Sun-blind, rear |
S415A=Yes |
|||||||||
| 09 | Roller sun shield | 1 | 51467276921 | Shop at ECS Tuning | ||||||
| 09 | Roller sun shield | 1 | 51465B6D504 | Shop at ECS Tuning | ||||||
| 10 | Cap left | 1 | 51467286065 | Shop at ECS Tuning | ||||||
| 10 | Cap right | 1 | 51467286066 | Shop at ECS Tuning | ||||||
| 11 | Bracket left | 1 | 51437302965 | Shop at ECS Tuning | ||||||
| 11 | Bracket right | 1 | 51437302966 | Shop at ECS Tuning | ||||||
| 12 | Clip blue | 2 | 07147129317 | $0.66 | Shop at ECS Tuning | |||||
| 13 | Fillister head screw with collar | M5X16MM | 4 | 07149158182 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Expanding rivet | D = 6MM | 10 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 15 | Expanding nut | ST4,8MM | 4 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
| 16 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
