Window mounting parts for BMW MINI F56 JCW (2021)

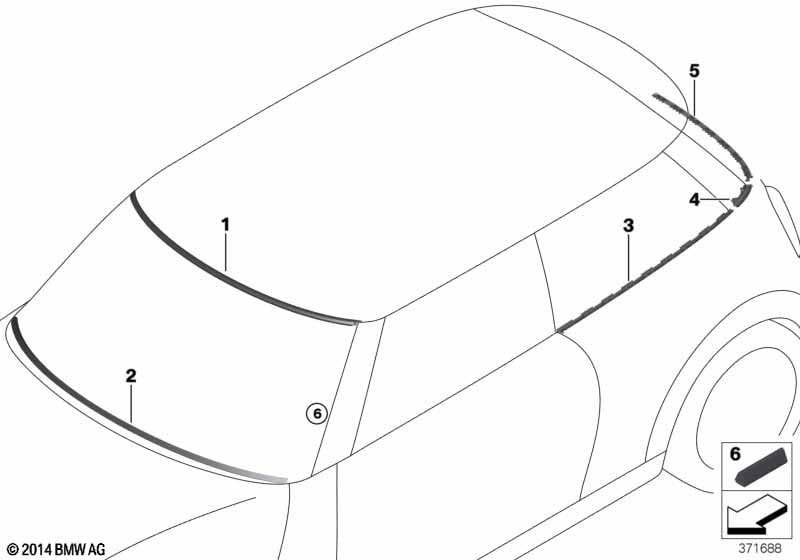

This Window mounting parts technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, windshield, top | 1 | 51317404771 | Shop at ECS Tuning | ||||||
| 02 | Sound insulation f apron | L=1430MM | 1 | 51487325890 | Shop at ECS Tuning | |||||
| 03 | Mount rail, trim strip, side panel left | 1 | 51377300023 | Shop at ECS Tuning | ||||||
| 03 | Mount rail, trim strip, side panel right | 1 | 51377300024 | Shop at ECS Tuning | ||||||
| 04 | Mount rail, trim strip, rear left | 1 | 51377300027 | Shop at ECS Tuning | ||||||
| 04 | Supporting strip trim strip right rear | 1 | 51377300028 | Shop at ECS Tuning | ||||||
| 05 | Mount rail, trim strip, trunk lid, left | 1 | 51137302545 | Shop at ECS Tuning | ||||||
| 05 | Mount rail, trim strip, trunk lid, right | 1 | 51137375104 | Shop at ECS Tuning | ||||||
| 06 | Bump stop | X | 51317288462 | Shop at ECS Tuning |
