Aerokit, trim cover, front for BMW MINI F56 One (2017)

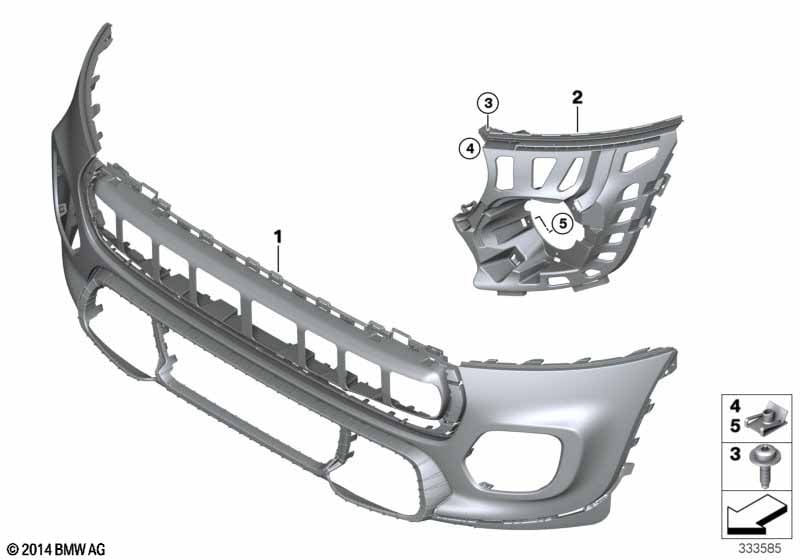

This Aerokit, trim cover, front technical drawing provides a detailed breakdown of the assembly for the MINI F56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with JCW Aerodynamics kit |
S3A1A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | JOHN COOPER W. | 1 | 51777382164 | Shop at ECS Tuning | |||||
| 02 | Support, fog lamp left | JOHN COOPER W. | 1 | 51117360741 | Shop at ECS Tuning | |||||
| 02 | Support, fog lamp right | JOHN COOPER W. | 1 | 51117360742 | Shop at ECS Tuning | |||||
| 03 | Torx-bolt with washer | ISA M6X20 | 2 | 07119907285 | Shop at ECS Tuning | |||||
| 04 | C-clip nut, self-locking | M6-ZNS3 | 2 | 07147286036 | Shop at ECS Tuning | |||||
| 05 | Body nut | M5 | 6 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
