Storage surface, trunk floor for BMW 5 Series F11 LCI 520i (2017)

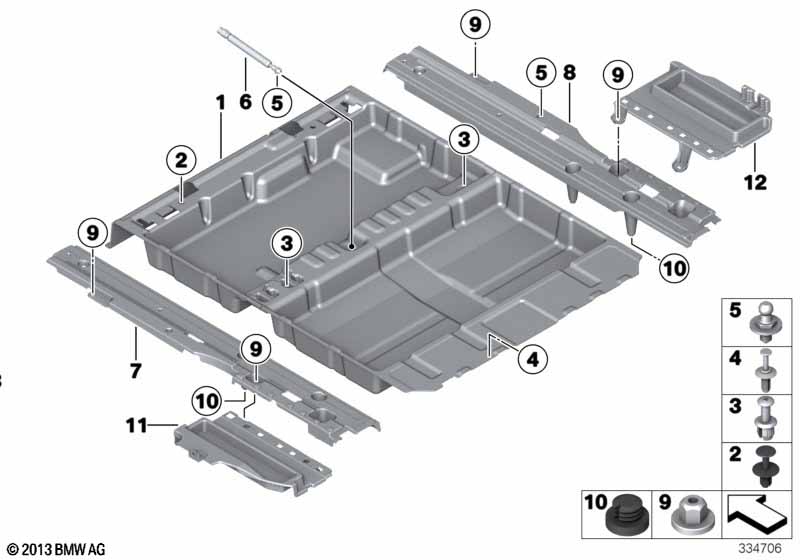

This Storage surface, trunk floor technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Integral active steering |
S2VHA=No |
|||||||||
| 01 | Storage troug luggage trunk floor | 1 | 51479168506 | Shop at ECS Tuning | ||||||
| For vehicles with Integral active steering |
S2VHA=Yes |
|||||||||
| 01 | Storage troug luggage trunk floor | 1 | 51477228708 | Shop at ECS Tuning | ||||||
| 02 | Expanding rivet | D = 8MM | 2 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | 2 | 51718229000 | $0.63 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Ball pin | M8 | 1 | 41218186446 | Shop at ECS Tuning | |||||
| 06 | Gas pressurized spring | SCHWARZ | 1 | 51479168507 | Shop at ECS Tuning | |||||
| For vehicles with Motor extended operation circuit or Additional energy supply or Unmasked official vehicle or Patrol vehicle, camouflaged or Luggage compartment package |
S108A=Yes S146A=Yes S185A=Yes S186A=Yes S418A=Yes |
|||||||||
| 07 | Pad floor carpet, left | 1 | 51479168509 | Shop at ECS Tuning | ||||||
| 08 | Pad floor carpet, right | 1 | 51479168510 | Shop at ECS Tuning | ||||||
| 09 | Plastic nut for coarse threaded pin | M6 | 6 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Rubber buffer | 5 | 51478144588 | $1.27 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system or Bang&Olufsen High End Surround Sound |
S688A=Yes S6F2A=Yes |
|||||||||
| 11 | Covering left | 1 | 51479168495 | Shop at ECS Tuning | ||||||
| For vehicles with Additional energy supply |
S146A=No |
|||||||||
| 12 | Covering right | 1 | 51479168496 | Shop at ECS Tuning | ||||||
