Right TRUNK TRIM for BMW 4 Series F32 435iX (2016)

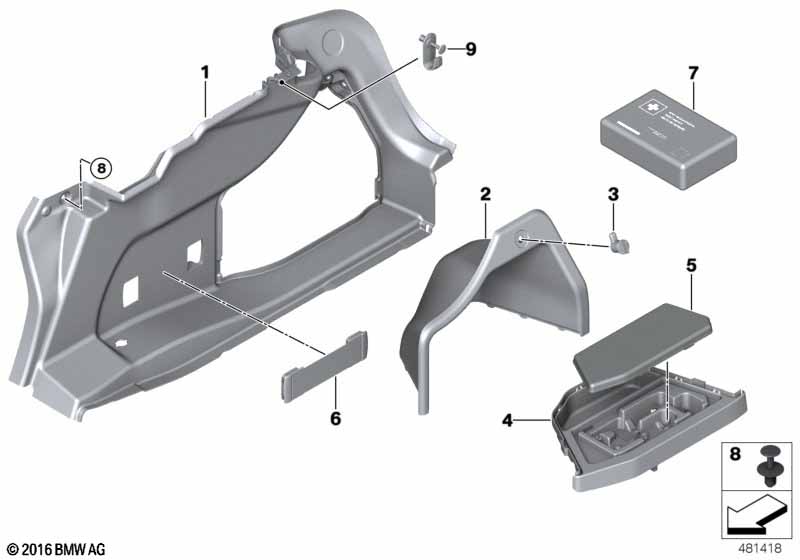

This Right TRUNK TRIM technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 435iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Right TRUNK TRIM | 1 | 04/2016 | 51477284152 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Tension strap | 1 | 04/2016 | 51472994027 | Shop at ECS Tuning | |||||
| 02 | Cover for battery, upper section | 1 | 51477284136 | Shop at ECS Tuning | ||||||
| 03 | Lock | 1 | 51477330518 | Shop at ECS Tuning | ||||||
| 04 | Mount for tools, lower section | 1 | 51477311027 | Shop at ECS Tuning | ||||||
| 05 | Cover for tools | 1 | 51477344763 | Shop at ECS Tuning | ||||||
| 06 | Tension strap | 1 | 51472994027 | Shop at ECS Tuning | ||||||
| 07 | First-aid kit, case, black | DIN 13164 | 1 | 71107263439 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | D = 8MM | 3 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F32 435iX Right TRUNK TRIM?
- This technical diagram illustrates the Right TRUNK TRIM within the Vehicle trim group for the 4 Series F32 435iX produced during 2016. It provides a detailed exploded view of the components, identifying key parts such as the Right TRUNK TRIM (Part #51477284152).
- Which models use the hardware listed in this Right TRUNK TRIM?
- The hardware and components featured in the Right TRUNK TRIM are specific to the 4 Series F32 435iX produced during 2016. These technical specifications ensure that parts like the Right TRUNK TRIM (51477284152) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Right TRUNK TRIM assembly?
- Each item in the Right TRUNK TRIM corresponds to the numbered list below the illustration. For the 4 Series F32 435iX, you can identify the Right TRUNK TRIM by locating its position on the schematic, which then links to the official BMW part number 51477284152 for the Vehicle trim section.
