Left trunk trim for BMW 2 Series F22 M240i (2017)

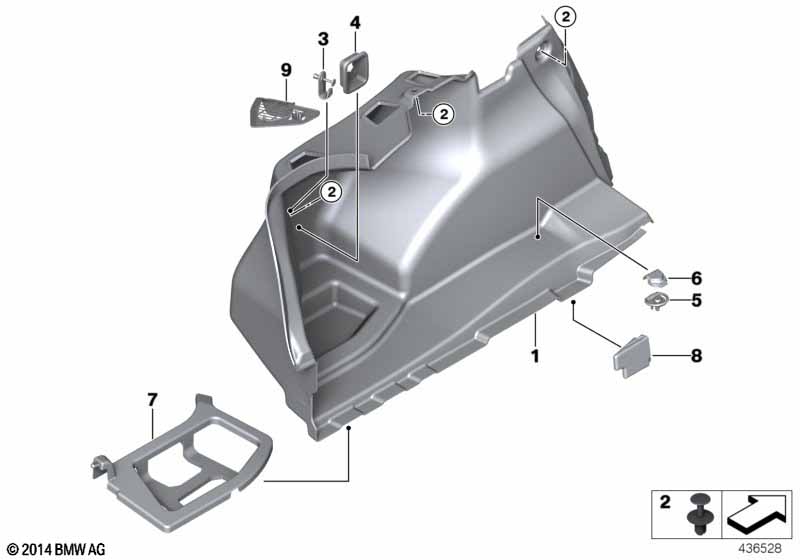

This Left trunk trim technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 M240i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Storage compartment package |
S493A=No |
|||||||||
| 01 | Left trunk trim | 1 | 51477296039 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 01 | Left trunk trim | 1 | 51477296041 | Shop at ECS Tuning | ||||||
| 02 | Expanding rivet | 4 | 05/2014 | 07147401727 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 03 | Hook | 1 | 51477258562 | Shop at ECS Tuning | ||||||
| 04 | Socket mount | SCHWARZ | 1 | 51476964057 | $4.30 | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system or Storage compartment package |
S465A=Yes S493A=Yes |
|||||||||
| 05 | Tie-down ring | 1 | 51477271174 | Shop at ECS Tuning | ||||||
| 06 | Cover, fastening loop | 1 | 51477274764 | Shop at ECS Tuning | ||||||
| 08 | Pad, side member, left | 1 | 51477221885 | Shop at ECS Tuning | ||||||
