Trim, windshield cowl, outer for BMW 1 Series F20 LCI 118i (2018)

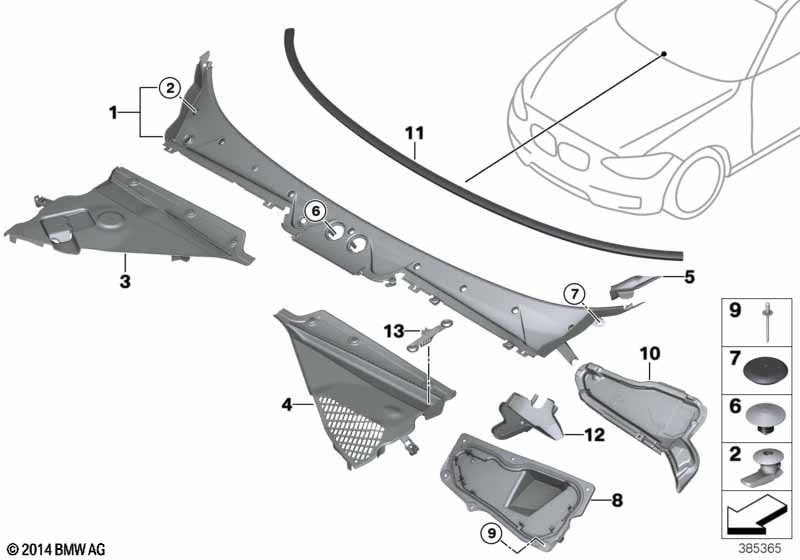

This Trim, windshield cowl, outer technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, windshield | 1 | 51717240679 | +core | Shop at ECS Tuning | |||||
| 02 | Clip | 9 | 51717064092 | $1.56 | Shop at ECS Tuning | |||||
| 03 | Cowl panel cover, Part 2 | RL | 1 | 03/2015 | 51717405637 | Shop at ECS Tuning | ||||
| 04 | Cover for units compartment | RL | 1 | 03/2015 | 64319353041 | Shop at ECS Tuning | ||||
| 05 | Left apron cover | 1 | 51717308091 | +core | Shop at ECS Tuning | |||||
| 05 | Right apron cover | 1 | 51717308092 | +core | Shop at ECS Tuning | |||||
| 06 | Plug | D=40MM | 2 | 07147255351 | Shop at ECS Tuning | |||||
| 07 | Plug, black | D=6,35MM | 2 | 51488114499 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Wiper tray | RHD | 1 | 51717232822 | +core | Shop at ECS Tuning | ||||
| 09 | Blind rivet | 6 | 07149280715 | Shop at ECS Tuning | ||||||
| 10 | Cover plate for wiper tray | 1 | 51717354546 | Shop at ECS Tuning | ||||||
| 11 | Sound insulation f apron | L=1430MM | 1 | 51487325890 | Shop at ECS Tuning | |||||
| 12 | Water drain for wiper shaft | RHD | 1 | 51717353217 | Shop at ECS Tuning | |||||
| 13 | Leaf grill, left | 1 | 51717402089 | Shop at ECS Tuning | ||||||
| 13 | Leaf grill, right | 1 | 51717402090 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
