Door window lifting mechanism rear for BMW 4 Series F33 430iX (2017)

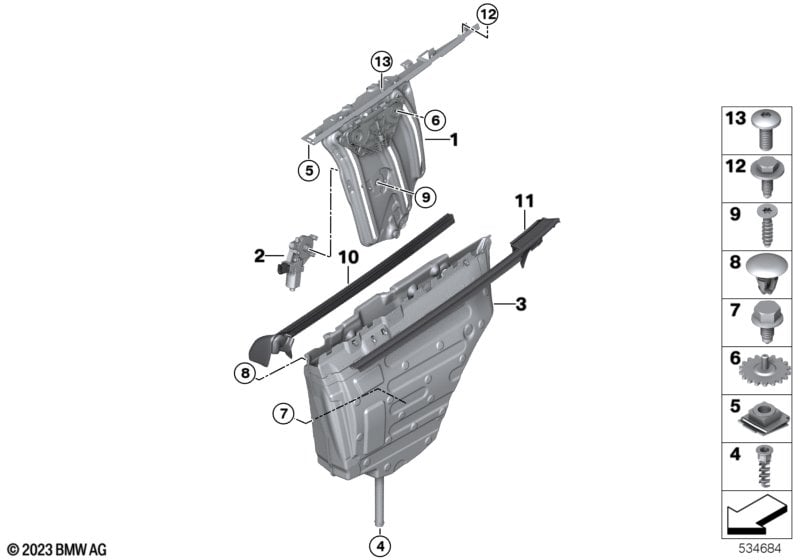

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 4 Series F33 430iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter rear left | 1 | 51357352749 | Shop at ECS Tuning | ||||||
| 01 | Window lifter rear right | 1 | 51357352750 | Shop at ECS Tuning | ||||||
| right | ||||||||||
| 02 | Drive for window lifter | RIGHT | 1 | 67627046032 | $147.05 | Shop at ECS Tuning | ||||
| left | ||||||||||
| 02 | Drive for window lifter | LEFT | 1 | 67627046031 | $147.05 | Shop at ECS Tuning | ||||
| 03 | Water drain, left | 1 | 51357374993 | Shop at ECS Tuning | ||||||
| 03 | Water drain, right | 1 | 51357374994 | Shop at ECS Tuning | ||||||
| 04 | Blind plug | 2 | 51377168884 | $1.37 | Shop at ECS Tuning | |||||
| 05 | C-clip nut | M6 | 8 | 07142452506 | Shop at ECS Tuning | |||||
| 06 | T-head bolt | 4 | 51337184604 | $3.79 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X12 | 2 | 07119907416 | Shop at ECS Tuning | |||||
| 08 | Clip | H=15MM | 8 | 51481924909 | $0.42 | Shop at ECS Tuning | ||||
| 09 | Torx screw | 6 | 51337185707 | $1.53 | Shop at ECS Tuning | |||||
| 10 | Inner channel sealing, rear left | 1 | 51377280295 | Shop at ECS Tuning | ||||||
| 10 | Inner channel sealing, rear right | 1 | 51377280296 | Shop at ECS Tuning | ||||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 11 | Finisher, side window, rear left | SCHWARZ HGL | 1 | 51377295571 | Shop at ECS Tuning | |||||
| 11 | Finisher, side window, rear right | SCHWARZ HGL | 1 | 51377295572 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and High gloss shadow line |
P7S2A=No S760A=No |
|||||||||
| 11 | Finisher, side window, rear left | ALU SATIN | 1 | 51377315419 | Shop at ECS Tuning | |||||
| 11 | Finisher, side window, rear right | ALU SATIN | 1 | 51377315420 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Exterior parts, satin-gloss aluminum and High gloss shadow line |
P7S2A=Yes S3L8A=No S760A=No |
|||||||||
| 11 | Finisher, side window, rear left | CHROM | 1 | 51377279765 | Shop at ECS Tuning | |||||
| 11 | Finisher, side window, rear right | CHROM | 1 | 51377279766 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M6X16 ZNS3 | 8 | 07119905577 | Shop at ECS Tuning | |||||
| 13 | Torx screw with washer | ISA M6X17 | 6 | 07149156655 | $0.47 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F33 430iX Door window lifting mechanism rear?
- This technical diagram illustrates the Door window lifting mechanism rear within the Vehicle trim group for the 4 Series F33 430iX produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Window lifter rear left (Part #51357352749).
- Which models use the hardware listed in this Door window lifting mechanism rear?
- The hardware and components featured in the Door window lifting mechanism rear are specific to the 4 Series F33 430iX produced during 2017. These technical specifications ensure that parts like the Window lifter rear left (51357352749) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism rear assembly?
- Each item in the Door window lifting mechanism rear corresponds to the numbered list below the illustration. For the 4 Series F33 430iX, you can identify the Window lifter rear left by locating its position on the schematic, which then links to the official BMW part number 51357352749 for the Vehicle trim section.
