Mirror lens (S430A) for BMW MINI F56 JCW (2021)

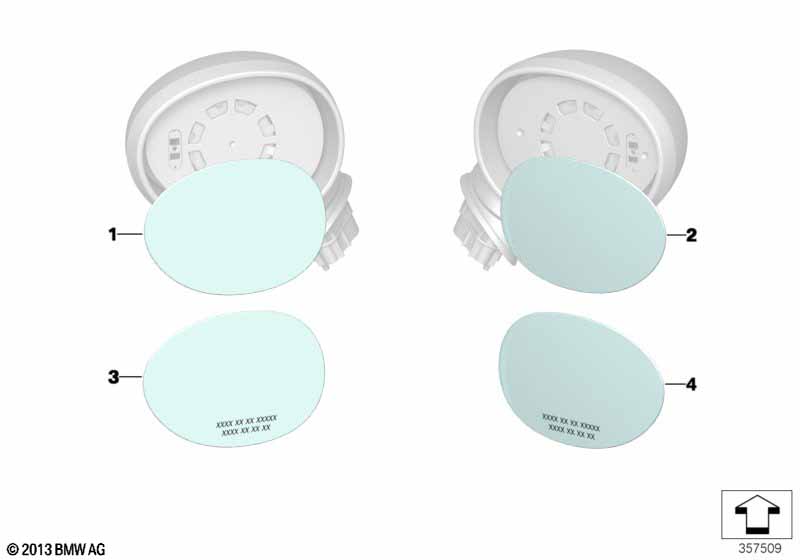

This Mirror lens (S430A) technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Interior/outside mirror with auto dip |
S430A=Yes |
||||||||
| 03 | Mirror glas heated plane left | EC | 1 | 51167366049 | Shop at ECS Tuning | |||||
| 04 | Mirror glas heated convex right | 1 | 06/2018 | 51167366044 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 JCW Mirror lens (S430A)?
- This technical diagram illustrates the Mirror lens (S430A) within the Vehicle trim group for the MINI F56 JCW produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Mirror glas heated plane left (Part #51167366049).
- Which models use the hardware listed in this Mirror lens (S430A)?
- The hardware and components featured in the Mirror lens (S430A) are specific to the MINI F56 JCW produced during 2021. These technical specifications ensure that parts like the Mirror glas heated plane left (51167366049) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mirror lens (S430A) assembly?
- Each item in the Mirror lens (S430A) corresponds to the numbered list below the illustration. For the MINI F56 JCW, you can identify the Mirror glas heated plane left by locating its position on the schematic, which then links to the official BMW part number 51167366049 for the Vehicle trim section.
