Mounting parts, I-panel, bottom for BMW MINI Cabrio F57 Cooper (2018)

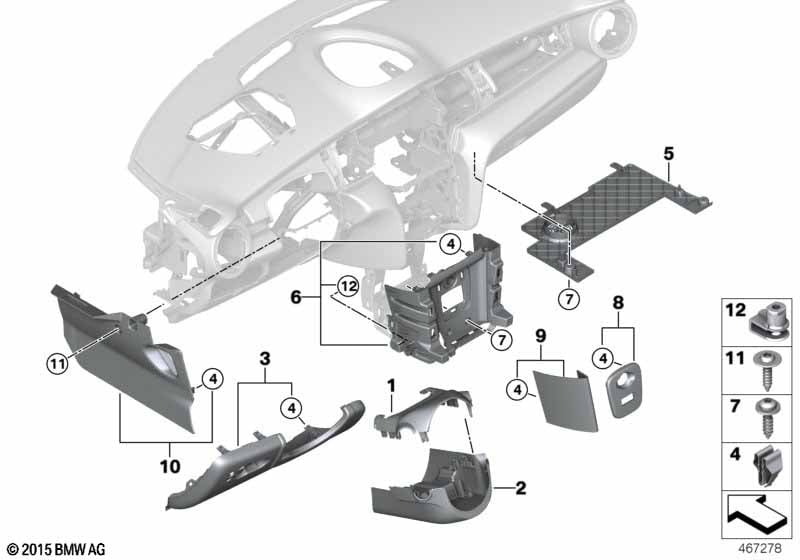

This Mounting parts, I-panel, bottom technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel, steering column, top | 1 | 07/2017 | 51459392770 | Shop at ECS Tuning | |||||
| 02 | Trim panel, steering column, bottom | 1 | 07/2017 | 51459392771 | Shop at ECS Tuning | |||||
| 03 | Trim instr. panel driver's side below | 1 | 51459384657 | Shop at ECS Tuning | ||||||
| 04 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Teleservices |
L807A=No S6AEA=Yes |
|||||||||
| 05 | Passenger's footwell trim panel | 1 | 03/2018 | 51459301546 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Teleservices |
L807A=Yes S6AEA=Yes |
|||||||||
| 05 | Passenger's footwell trim panel | 1 | 03/2018 | 51459318317 | Shop at ECS Tuning | |||||
| 06 | Instrument carrier, I-panel center lower | 1 | 51459267656 | Shop at ECS Tuning | ||||||
| 07 | Fillister head self-tapp.screw w collar | ISA 4,2X19 | 4 | 07148263913 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Media panel, I-panel center lower | 1 | 51459873518 | Shop at ECS Tuning | ||||||
| For vehicles with Interior surface Piano Black and Interior surface Dark Silver and Interior surface in Fibre Alloy and Interior surface in Off-White and Interior surface 'Dark Cottonwood' and Interior surface 'Firework' and MINI Yours Interior Style Off-White and MINI Yours Interior Style dk. cottonwood and MINI Yours Interior Style Fibre All |
S4BDA=No S4DBA=No S4ERA=No S4ESA=Yes S4ETA=No S4EUA=No S4GSA=Yes S4GTA=No S4GUA=No |
|||||||||
| 09 | Down Tube I-panel, center left | OFF-WHITE | 1 | 03/2018 | 51459262437 | Shop at ECS Tuning | ||||
| 09 | Down Tube I-panel, center right | OFF-WHITE | 1 | 03/2018 | 51459262438 | Shop at ECS Tuning | ||||
| For vehicles with Interior surface Piano Black and Interior surface Dark Silver and Interior surface in Fibre Alloy and Interior surface in Off-White and Interior surface 'Dark Cottonwood' and Interior surface 'Firework' and MINI Yours Interior Style Off-White and MINI Yours Interior Style dk. cottonwood and MINI Yours Interior Style Fibre All |
S4BDA=No S4DBA=No S4ERA=No S4ESA=Yes S4ETA=No S4EUA=No S4GSA=No S4GTA=No S4GUA=No |
|||||||||
| 09 | Down Tube I-panel, center left | OFF-WHITE | 1 | 03/2018 | 51459262437 | Shop at ECS Tuning | ||||
| 09 | Down Tube I-panel, center right | OFF-WHITE | 1 | 03/2018 | 51459262438 | Shop at ECS Tuning | ||||
| For vehicles with Interior surface Piano Black and Interior surface Dark Silver and Interior surface in Fibre Alloy and Interior surface in Off-White and Interior surface 'Dark Cottonwood' and Interior surface 'Firework' and MINI Yours Interior Style Off-White and MINI Yours Interior Style dk. cottonwood and MINI Yours Interior Style Fibre All |
S4BDA=No S4DBA=No S4ERA=No S4ESA=No S4ETA=No S4EUA=No S4GSA=Yes S4GTA=No S4GUA=No |
|||||||||
| 09 | Down Tube I-panel, center left | OFF-WHITE | 1 | 03/2018 | 51459262437 | Shop at ECS Tuning | ||||
| 09 | Down Tube I-panel, center right | OFF-WHITE | 1 | 03/2018 | 51459262438 | Shop at ECS Tuning | ||||
| 09 | Down Tube I-panel, center left | PIANO BLACK | 1 | 51459262435 | Shop at ECS Tuning | |||||
| 09 | Down Tube I-panel, center right | PIANO BLACK | 1 | 51459262436 | Shop at ECS Tuning | |||||
| 09 | Down Tube I-panel, center left | HAZY GREY | 1 | 51459318573 | Shop at ECS Tuning | |||||
| 09 | Down Tube I-panel, center right | HAZY GREY | 1 | 51459318574 | Shop at ECS Tuning | |||||
| 10 | Trim panel, I-panel, center lower right | 1 | 51459296976 | Shop at ECS Tuning | ||||||
| 10 | Trim panel, I-panel, center, lower left | 1 | 51459296977 | Shop at ECS Tuning | ||||||
| 11 | Fillister head screw | DELTA PT4X16 | 2 | 07149197038 | Shop at ECS Tuning | |||||
| 12 | C-clip for plastic nut | 2 | 07149200938 | Shop at ECS Tuning | ||||||
