Closing system, door, rear for BMW MINI Clubman F54 Cooper (2019)

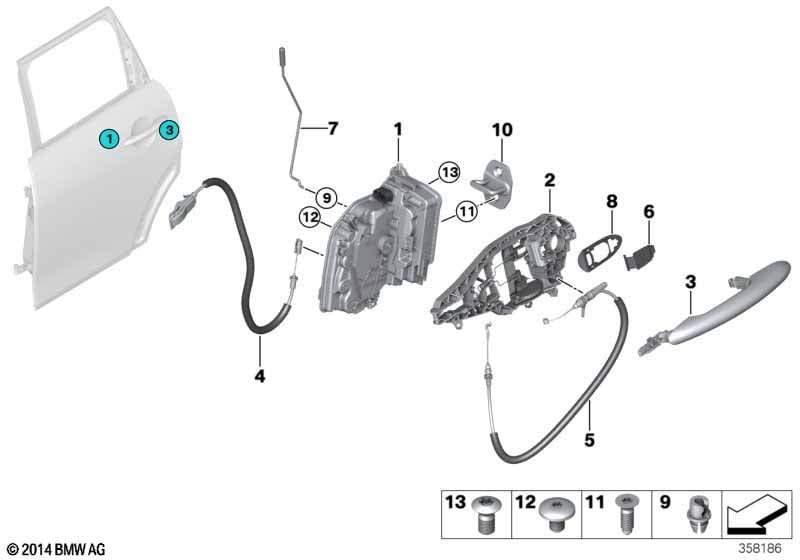

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Thiefproofing device |
S8TGA=Yes |
|||||||||
| 01 | Door lock, rear left | ZS | 1 | 51227281943 | Shop at ECS Tuning | |||||
| 01 | Door lock, rear right | ZS | 1 | 51227281944 | Shop at ECS Tuning | |||||
| For vehicles with Thiefproofing device |
S8TGA=No |
|||||||||
| 01 | Door lock, rear left | 1 | 51227281939 | Shop at ECS Tuning | ||||||
| 01 | Door lock, rear right | 1 | 51227281940 | Shop at ECS Tuning | ||||||
| 02 | Carrier, outside door handle, left | 1 | 51217296457 | Shop at ECS Tuning | ||||||
| 02 | Carrier, outside door handle, right | 1 | 51217296458 | Shop at ECS Tuning | ||||||
| For vehicles with Piano black exterieur and MINI Excitement Package |
S3L2A=No S4V9A=Yes |
|||||||||
| 03 | Door handle, outside, right | LIGHT | 1 | 07/2020 | 51217317636 | Shop at ECS Tuning | ||||
| 03 | Door handle, outside, left | LIGHT | 1 | 07/2020 | 51217327339 | Shop at ECS Tuning | ||||
| For vehicles with Piano black exterieur and MINI Excitement Package Suitable for left and right side |
S3L2A=No S4V9A=No |
|||||||||
| 03 | Outer door handle passenger's side | BASIS | 2 | 07/2020 | 51217317634 | Shop at ECS Tuning | ||||
| 04 | Bowden cable, inside door opener front | 2 | 51217364596 | Shop at ECS Tuning | ||||||
| 05 | Bowden cable, outside door handle, rear | 2 | 51227331287 | Shop at ECS Tuning | ||||||
| 06 | Mounting bell, closed | 2 | 51217317426 | Shop at ECS Tuning | ||||||
| 07 | Left operating rod | 1 | 51227344143 | Shop at ECS Tuning | ||||||
| 07 | Right operating rod | 1 | 51227344144 | Shop at ECS Tuning | ||||||
| 08 | Support for protective cap | 2 | 51217405768 | Shop at ECS Tuning | ||||||
| 09 | Circlip | 2 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 10 | Catch bracket | 2 | 51217394435 | Shop at ECS Tuning | ||||||
| 11 | Countersunk head screw | 2 | 51219463885 | Shop at ECS Tuning | ||||||
| 12 | Torx-bolt with washer | ISA M8X12 | 2 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
| 13 | Countersunk head screw, Torx | M6X11,5-10.9 | 4 | 07147291342 | Shop at ECS Tuning | |||||
