Wheelarch trim for BMW MINI F56 LCI JCW (2024)

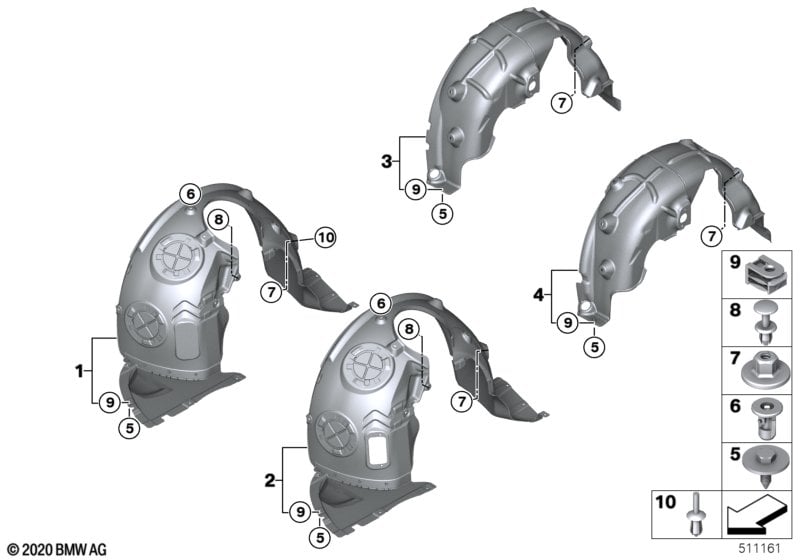

This Wheelarch trim technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Cover for wheelhousing, front right | 1 | 51719447834 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Sport automatic transmission and Hot-climate version |
S2TBA=Yes S823A=Yes |
|||||||||
| 02 | Cover for wheelhousing, front left | 1 | 51719447835 | Shop at ECS Tuning | ||||||
| For vehicles with Sport automatic transmission and Hot-climate version |
S2TBA=Yes S823A=No |
|||||||||
| 02 | Cover for wheelhousing, front left | 1 | 51719447835 | Shop at ECS Tuning | ||||||
| For vehicles with Sport automatic transmission and Hot-climate version |
S2TBA=No S823A=Yes |
|||||||||
| 02 | Cover for wheelhousing, front left | 1 | 51719447835 | NoS | Shop at ECS Tuning | |||||
| 03 | Cover, wheel housing, rear left | 1 | 51719878941 | NoS | Shop at ECS Tuning | |||||
| 03 | Cover, wheel housing, rear right | 1 | 51719878942 | NoS | Shop at ECS Tuning | |||||
| 05 | Hex bolt | TS5X17 SW8 D=22 | 32 | 07149126886 | Shop at ECS Tuning | |||||
| 06 | Expanding nut | L=18.4, DMAX=18 | 16 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Plastic capnut with washer | D=22MM | 20 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Expanding rivet | 2 | 07147136172 | $0.38 | Shop at ECS Tuning | |||||
| 09 | C-clip for plastic nut | TS5 | 10 | 07147311312 | Shop at ECS Tuning | |||||
