Sound insulating front for BMW MINI Cabrio F57 LCI JCW (2024)

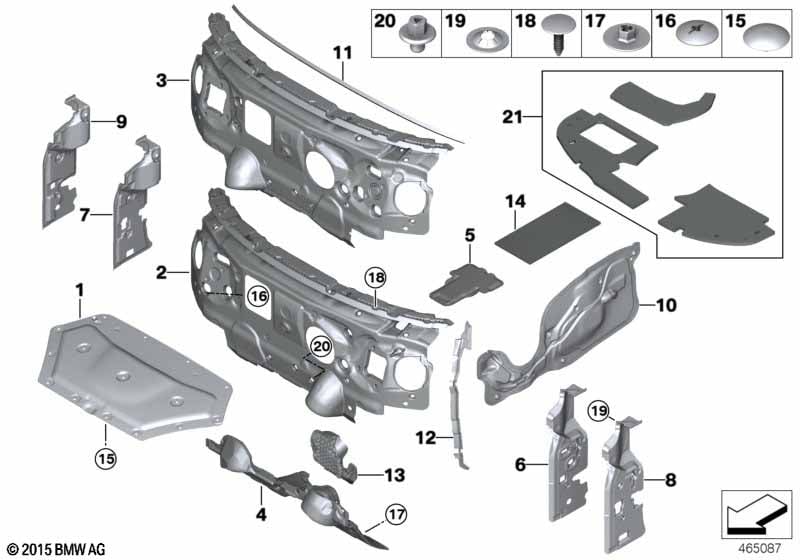

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating engine hood | 1 | 51487298865 | Shop at ECS Tuning | ||||||
| 04 | Sound insulat., bottom sect. of bulkhead | 1 | 51487298868 | Shop at ECS Tuning | ||||||
| 08 | Sound insulation A-column, left | RHD | 1 | 51487298905 | Shop at ECS Tuning | |||||
| 09 | Sound insulation A-column, right | RHD | 1 | 51487298906 | Shop at ECS Tuning | |||||
| 10 | Sound insulation, door left | 1 | 51487386605 | Shop at ECS Tuning | ||||||
| 10 | Sound insulation, door right | 1 | 51487386606 | Shop at ECS Tuning | ||||||
| 11 | Sound insulation f apron | L=1430MM | 1 | 51487325890 | Shop at ECS Tuning | |||||
| 12 | Seal, side frame, left | 1 | 51487298941 | Shop at ECS Tuning | ||||||
| 12 | Seal, side frame, right | 1 | 51487298942 | Shop at ECS Tuning | ||||||
| 14 | Sound deadener | 1160X700MM | X | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| 15 | Clip | 15 | 51489119216 | $0.37 | Shop at ECS Tuning | |||||
| 16 | Push-button, gray | 4 | 51488126849 | $0.42 | Shop at ECS Tuning | |||||
| 17 | Clip nut | 5X9 D=30 SW10 | 4 | 07147261260 | Shop at ECS Tuning | |||||
| 18 | Plug-in retainer | 8 | 07147283890 | Shop at ECS Tuning | ||||||
| 19 | Spring nut | 2 | 22326790073 | Shop at ECS Tuning | ||||||
| 20 | Nut for coarse thread stud | 3 | 07147376269 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 LCI JCW Sound insulating front?
- This technical diagram illustrates the Sound insulating front within the Vehicle trim group for the MINI Cabrio F57 LCI JCW produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulating engine hood (Part #51487298865).
- Which models use the hardware listed in this Sound insulating front?
- The hardware and components featured in the Sound insulating front are specific to the MINI Cabrio F57 LCI JCW produced during 2024. These technical specifications ensure that parts like the Sound insulating engine hood (51487298865) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulating front assembly?
- Each item in the Sound insulating front corresponds to the numbered list below the illustration. For the MINI Cabrio F57 LCI JCW, you can identify the Sound insulating engine hood by locating its position on the schematic, which then links to the official BMW part number 51487298865 for the Vehicle trim section.
