Mounting parts, engine compartment for BMW MINI F56 JCW (2021)

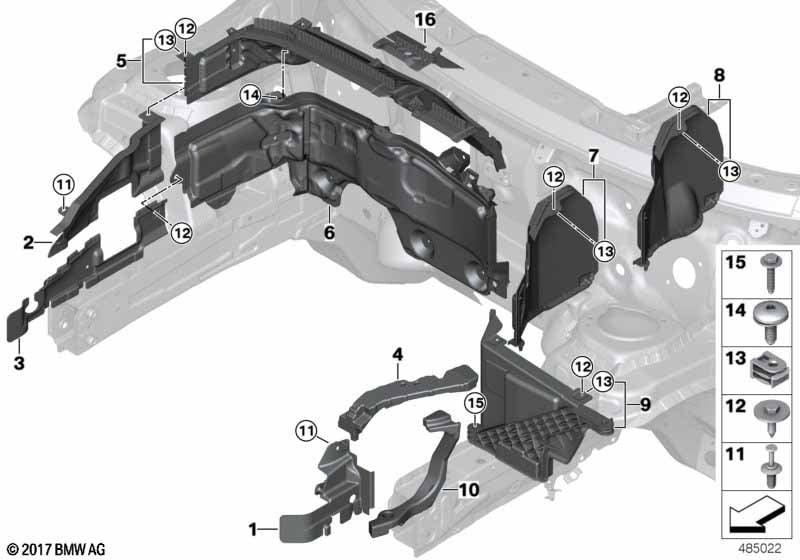

This Mounting parts, engine compartment technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Firewall, upper section | 1 | 51717290802 | Shop at ECS Tuning | ||||||
| 06 | Bulkhead lower section | 1 | 51717290814 | Shop at ECS Tuning | ||||||
| 07 | Battery cover | BENZIN | 1 | 51717290817 | Shop at ECS Tuning | |||||
| 09 | Bracket, battery carrier | 1 | 51717351481 | Shop at ECS Tuning | ||||||
| 11 | Expanding rivet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | TS5X20 SW8 D=22 | 2 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 13 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| 14 | Torx screw with washer | 3 | 07147142046 | $0.71 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M8X40-PC-U2-10 | 1 | 51719908456 | Shop at ECS Tuning |
