Center console for BMW MINI F56 LCI One (2024)

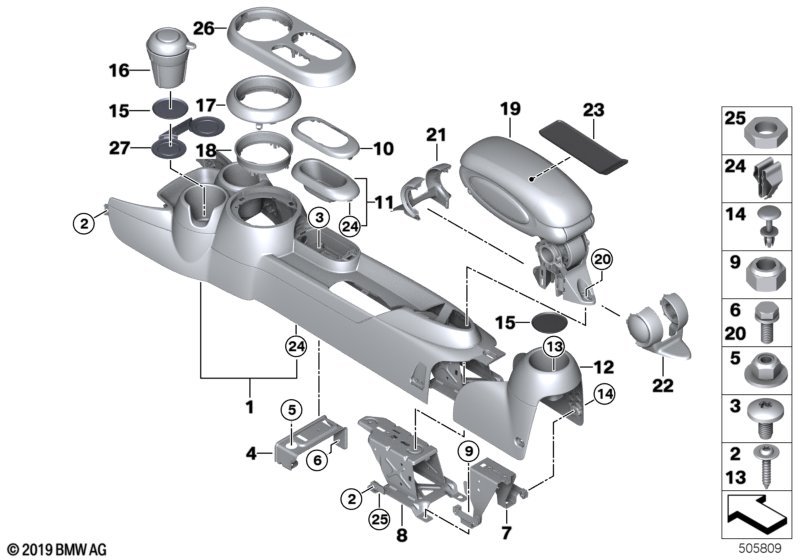

This Center console technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Armrest front and Active cruise control |
S473A=Yes S541A=No |
|||||||||
| 01 | Center console | 1 | 51169262842 | Shop at ECS Tuning | ||||||
| For vehicles with Armrest front and Active cruise control |
S473A=No S541A=No |
|||||||||
| 01 | Center console | 1 | 51169266622 | Shop at ECS Tuning | ||||||
| For vehicles with Armrest front and Active cruise control |
S473A=Yes S541A=Yes |
|||||||||
| 01 | Center console | 1 | 51166998989 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Armrest front and Active cruise control |
S473A=No S541A=Yes |
|||||||||
| 01 | Center console | 1 | 51166998969 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Armrest front |
S473A=Yes |
|||||||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 6 | 07149185673 | Shop at ECS Tuning | |||||
| 04 | Bracket f center console, center | 1 | 51169262851 | Shop at ECS Tuning | ||||||
| 05 | Self-locking hex nut | M6 | 1 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Bracket, center console rear | 1 | 51169388162 | Shop at ECS Tuning | ||||||
| For vehicles with Armrest front |
S473A=Yes |
|||||||||
| 08 | Bracket for center armrest | 1 | 51169266367 | Shop at ECS Tuning | ||||||
| 09 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 10 | Cover, central operating unit | 1 | 03/2018 | 51169266392 | Shop at ECS Tuning | |||||
| 12 | Cup holder, center console rear | 1 | 51169276513 | Shop at ECS Tuning | ||||||
| 13 | Oval-head screw with washer | DELTA PT4X20 | 1 | 07149185673 | Shop at ECS Tuning | |||||
| 14 | Expanding rivet | 2 | 07149371069 | Shop at ECS Tuning | ||||||
| 15 | Rubber insert, cup holder | 1 | 51169360385 | Shop at ECS Tuning | ||||||
| For vehicles with Smoker package |
S441A=Yes |
|||||||||
| 16 | Ashtray | 1 | 51169262844 | Shop at ECS Tuning | ||||||
| For vehicles with Active cruise control |
S541A=Yes |
|||||||||
| 17 | Trim ring for center console | 1 | 51456977941 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Active cruise control |
S541A=No |
|||||||||
| 17 | Trim ring for center console | SCHWARZ | 1 | 51169266624 | Shop at ECS Tuning | |||||
| For vehicles with Armrest front and Factory prep. for Flexible Car Use |
S473A=Yes S5GCA=Yes |
|||||||||
| 19 | Center armrest for Car-sharing module | SCHWARZ | 1 | 51169311278 | Shop at ECS Tuning | |||||
| For vehicles with Armrest front and Phoning with wireless charging and Country-specific equipment Taiwan 04825 |
S473A=Yes S6NWA=Yes S8LTA=No |
|||||||||
| 19 | Center armrest | SCHWARZ | 1 | 51165A54826 | ENDED, NoS | Shop at ECS Tuning | ||||
| 19 | Center armrest | SCHWARZ | 1 | 51165A83EA6 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Factory prep. for Flexible Car Use and Extended mobile phone prep. w/Bluetooth and Phoning with wireless charging |
S473A=Yes S5GCA=No S6NEA=Yes S6NWA=No |
|||||||||
| 19 | Center arm rest | SCHWARZ | 1 | 51169292951 | Shop at ECS Tuning | |||||
| For vehicles with Armrest front |
S473A=Yes |
|||||||||
| 20 | Hex bolt with washer | M8X25 ZNS3 | 2 | 07119904793 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Armrest front and Active cruise control |
S473A=Yes S541A=No |
|||||||||
| 21 | Lower trim for center armrest, front | 1 | 51169266361 | Shop at ECS Tuning | ||||||
| For vehicles with Armrest front and Active cruise control |
S473A=Yes S541A=Yes |
|||||||||
| 21 | Lower trim for center armrest, front | 1 | 51166998971 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Armrest front and Active cruise control |
S473A=Yes S541A=No |
|||||||||
| 22 | Lower trim for center armrest, rear | 1 | 51169266362 | Shop at ECS Tuning | ||||||
| For vehicles with Armrest front and Active cruise control |
S473A=Yes S541A=Yes |
|||||||||
| 22 | Lower trim for center armrest, rear | 1 | 51166998972 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Armrest front and Factory prep. for Flexible Car Use and Extended mobile phone prep. w/Bluetooth and Phoning with wireless charging |
S473A=Yes S5GCA=No S6NEA=Yes S6NWA=No |
|||||||||
| 23 | Insert mat for center armrest | SCHWARZ | 1 | 51169262853 | Shop at ECS Tuning | |||||
| 24 | Clamp | 3 | 07147321144 | Shop at ECS Tuning | ||||||
| For vehicles with Armrest front |
S473A=Yes |
|||||||||
| 25 | Hex nut | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 26 | Cover cap support | 1 | 51166998970 | Shop at ECS Tuning | ||||||
| 27 | Insert mat storage comp.cupholder | 1 | 51166998973 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
