Headlining for BMW MINI F56 JCW (2021)

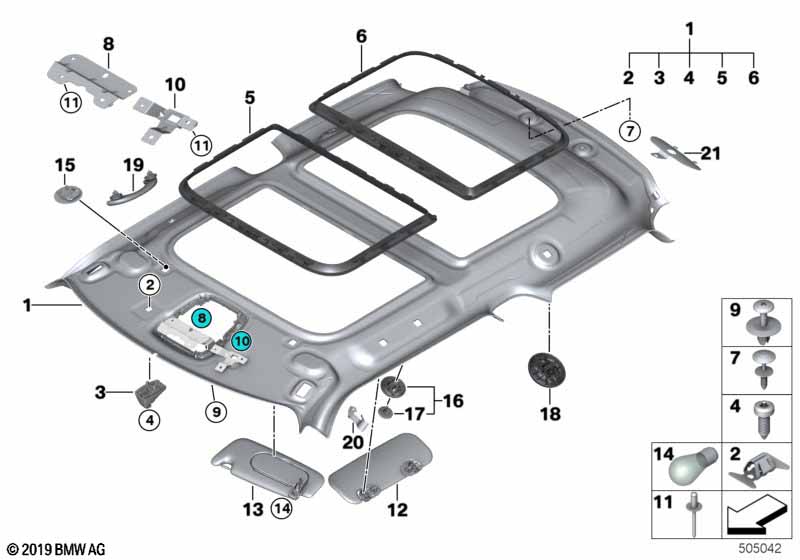

This Headlining technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Electric panoramic roof |
S402A=Yes |
||||||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 01 | Headliner, panorama roof | SATELLITE GREY | 1 | 51447369279 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 01 | Headliner, panorama roof | ANTHRAZIT | 1 | 51447369255 | NoS | Shop at ECS Tuning | ||||
| 02 | Clip | 2 | 51167145718 | $1.11 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 03 | Counterbearing for sun visor | SATELLITE GREY | 2 | 51167375974 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 03 | Counterbearing for sun visor | SCHWARZ | 2 | 51167896985 | $1.83 | Shop at ECS Tuning | ||||
| 04 | Torx sheet-metal screw | ISA ST4,2X13 | 2 | 07119907470 | Shop at ECS Tuning | |||||
| 05 | Frame for panorama glass roof, front | SCHWARZ | 1 | 51447347691 | Shop at ECS Tuning | |||||
| 06 | Frame for panorama glass roof, rear | SCHWARZ | 1 | 51447347695 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 07 | Expanding rivet | SATELLITE GREY | 1 | 51447376646 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 07 | Expanding rivet | CARBON BLACK | 1 | 51442756902 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Electric panoramic roof and Isofix-System and Light package and Intelligent emergency SOS call and Teleservices and Statutory emergency request |
S302A=Yes S402A=Yes S470A=Yes S563A=Yes S6ACA=Yes S6AEA=Yes S6AFA=Yes |
|||||||||
| 08 | Sheet-metal headliner retainer | 1 | 51447300722 | Shop at ECS Tuning | ||||||
| 09 | Expanding rivet | D=7,5MM | 2 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 10 | Bracket for sun visor, left | 1 | 51447298727 | Shop at ECS Tuning | ||||||
| 10 | Bracket for sun visor, right | 1 | 51447298728 | Shop at ECS Tuning | ||||||
| 11 | Blind rivet | 8 | 07147265827 | Shop at ECS Tuning | ||||||
| 13 | Sun visor without label, right | SCHWARZ | 1 | 51167342194 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 13 | Sun visor without label, left | SCHWARZ | 1 | 51167342193 | Shop at ECS Tuning | |||||
| 13 | Sun visor with label, left | SCHWARZ | 1 | 51167382103 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 15 | Cover, microphone | SATELLITE GREY | 2 | 07/2018 | 51449475690 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 15 | Cover, microphone | SCHWARZ | 2 | 07/2018 | 51447495572 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Storage compartment package and Headlining anthracite |
L8AAA=Yes S493A=No S4AAA=Yes |
|||||||||
| 16 | Cover for headliner | SCHWARZ | 2 | 51447374906 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Storage compartment package and Headlining anthracite |
L8AAA=Yes S493A=No S4AAA=No |
|||||||||
| 16 | Cover for headliner | SATELLITE GREY | 2 | 51447374905 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Headlining anthracite |
S493A=No S4AAA=Yes |
|||||||||
| 17 | Cap for headliner cover | SCHWARZ | 2 | 51447375213 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Storage compartment package and Headlining anthracite |
L8AAA=Yes S493A=No S4AAA=No |
|||||||||
| 17 | Cap for headliner cover | SATELLITE GREY | 2 | 51447375212 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 18 | Clothes hook | SATELLITE GREY | 2 | 51167367800 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 18 | Clothes hook | SCHWARZ | 2 | 51167340481 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 19 | Grab handle, front | SATELLITE GREY | 1 | 51167367784 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 19 | Grab handle, front | SCHWARZ | 1 | 51167336852 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
