Trim panel A- / B- / C-Column for BMW MINI F56 LCI One (2024)

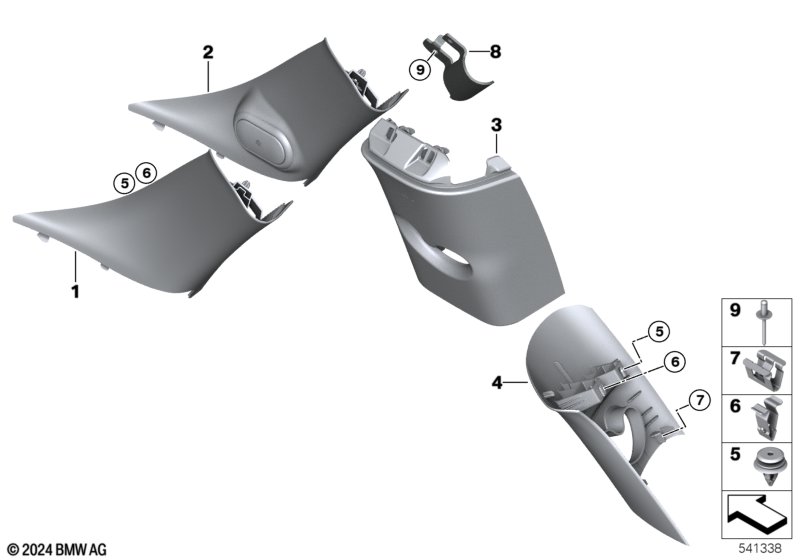

This Trim panel A- / B- / C-Column technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite and Hi-Fi System Harman Kardon |
S4AAA=No S674A=No |
|||||||||
| 01 | Left column A cover | SATELLITE GREY | 1 | 51437406015 | Shop at ECS Tuning | |||||
| 01 | Right column A cover | SATELLITE GREY | 1 | 51437406016 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Hi-Fi System Harman Kardon |
S4AAA=Yes S674A=No |
|||||||||
| 01 | Left column A cover | SCHWARZ | 1 | 51437406017 | Shop at ECS Tuning | |||||
| 01 | Right column A cover | SCHWARZ | 1 | 51437406018 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Hi-Fi System Harman Kardon |
S4AAA=No S674A=Yes |
|||||||||
| 02 | Trim, A-pillar, HiFi, left | SATELLITE GREY | 1 | 51437406019 | Shop at ECS Tuning | |||||
| 02 | Trim, A-pillar, HiFi, right | SATELLITE GREY | 1 | 51437406020 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Hi-Fi System Harman Kardon |
S4AAA=Yes S674A=Yes |
|||||||||
| 02 | Trim, A-pillar, HiFi, left | SCHWARZ | 1 | 51437406021 | Shop at ECS Tuning | |||||
| 02 | Trim, A-pillar, HiFi, right | SCHWARZ | 1 | 51437406022 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 03 | Cover column B left | SCHWARZ | 1 | 51437306647 | Shop at ECS Tuning | |||||
| 03 | Cover column B right | SCHWARZ | 1 | 51437306648 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 03 | Cover column B right | SATELLITE GREY | 1 | 51437367702 | Shop at ECS Tuning | |||||
| 03 | Cover column B left | SATELLITE GREY | 1 | 51437367707 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 04 | Cover column C left | SCHWARZ | 1 | 51437306649 | Shop at ECS Tuning | |||||
| 04 | Cover column C right | SCHWARZ | 1 | 51437306650 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 04 | Cover column C left | SATELLITE GREY | 1 | 51437347697 | Shop at ECS Tuning | |||||
| 04 | Cover column C right | SATELLITE GREY | 1 | 51437347698 | Shop at ECS Tuning | |||||
| 05 | Clip Natur | 6 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 06 | Clamp | 4 | 51437321215 | Shop at ECS Tuning | ||||||
| 07 | Clamp | 2 | 07149172157 | $0.57 | Shop at ECS Tuning | |||||
