Floor mats for BMW MINI Clubman F54 One (2019)

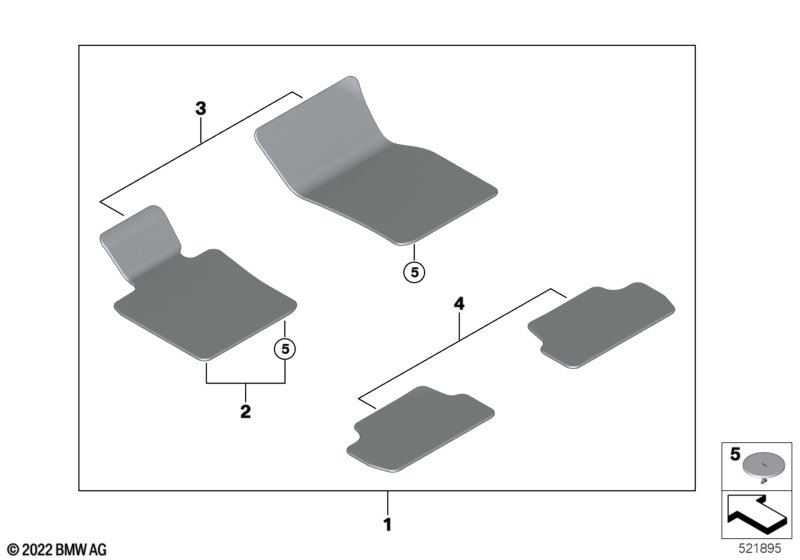

This Floor mats technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of floor mats | ANTHRAZIT | 1 | 51477413034 | Shop at ECS Tuning | |||||
| 02 | Floor mat, driver side | ANTHRAZIT | 1 | 51477413036 | Shop at ECS Tuning | |||||
| 05 | Hook&loop element with bayonet fastener | D62MM/L16MM | 4 | 07149166608 | $2.17 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 One Floor mats?
- This technical diagram illustrates the Floor mats within the Vehicle trim group for the MINI Clubman F54 One produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Set of floor mats (Part #51477413034).
- Which models use the hardware listed in this Floor mats?
- The hardware and components featured in the Floor mats are specific to the MINI Clubman F54 One produced during 2019. These technical specifications ensure that parts like the Set of floor mats (51477413034) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor mats assembly?
- Each item in the Floor mats corresponds to the numbered list below the illustration. For the MINI Clubman F54 One, you can identify the Set of floor mats by locating its position on the schematic, which then links to the official BMW part number 51477413034 for the Vehicle trim section.
