Trunk lid trim panel for BMW MINI F55 One (2021)

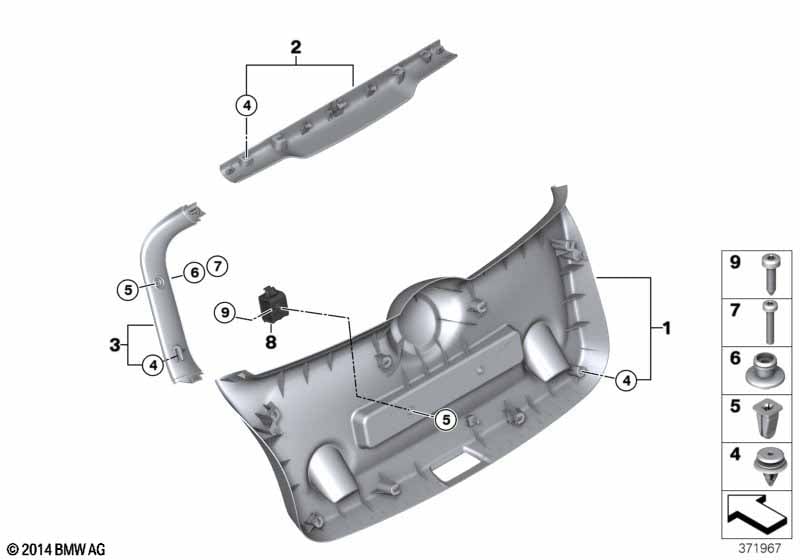

This Trunk lid trim panel technical drawing provides a detailed breakdown of the assembly for the MINI F55 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lower tail lid trim panel | 1 | 51497318942 | Shop at ECS Tuning | ||||||
| 02 | Upper trunk lid trim panel | 1 | 51497318935 | Shop at ECS Tuning | ||||||
| 03 | Left trunk lid panel trim | 1 | 51497318939 | Shop at ECS Tuning | ||||||
| 03 | Right panel tail lid | 1 | 51497318940 | Shop at ECS Tuning | ||||||
| 04 | Clip Natur | X | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 05 | Expanding nut | 4 | 51138253546 | $0.32 | Shop at ECS Tuning | |||||
| 06 | Button | 2 | 51498225348 | $1.11 | Shop at ECS Tuning | |||||
| 07 | Screw | 4,2X32MM | 2 | 07119907453 | Shop at ECS Tuning | |||||
| For vehicles with Warning triangle and first aid kit |
S428A=Yes |
|||||||||
| 08 | Bracket for hazard warn. triangle | 2 | 51497375203 | Shop at ECS Tuning | ||||||
| 09 | Sheet-metal screw, black | ST4,8X19MM | 2 | 07119907854 | Shop at ECS Tuning | |||||
