Door window lifting mechanism rear for BMW MINI F55 One (2021)

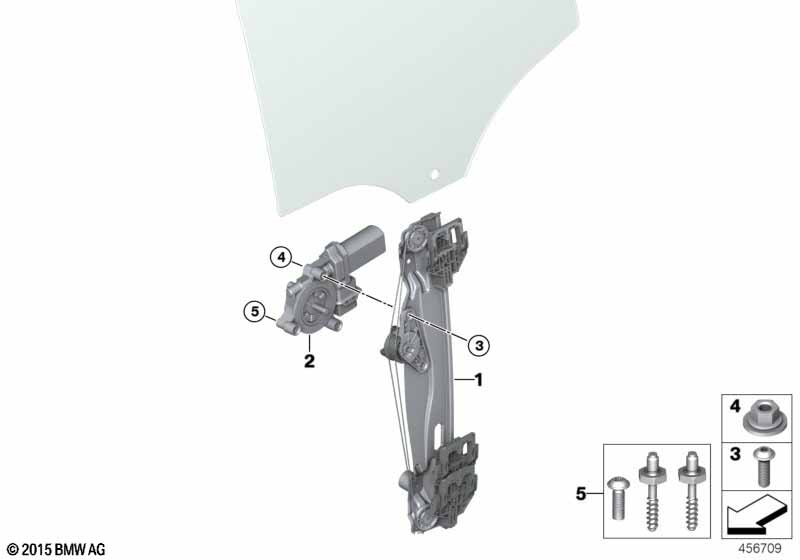

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the MINI F55 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter without motor, rear left | 1 | 51357490207 | Shop at ECS Tuning | ||||||
| 01 | Window lifter without motor, rear right | 1 | 51357490208 | Shop at ECS Tuning | ||||||
| Rear right door | ||||||||||
| 02 | Drive for window lifter | 1 | 67627354889 | Shop at ECS Tuning | ||||||
| Left rear door | ||||||||||
| 02 | Drive for window lifter | 1 | 67627354890 | Shop at ECS Tuning | ||||||
| ENGINE Mount Window lift, rear |
||||||||||
| 03 | Fillister head screw | 4 | 07146982677 | $0.47 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M6 | 12 | 07146951627 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Mounting parts | 1 | 51337388688 | Shop at ECS Tuning | ||||||
