Outside mirror for BMW 4 Series F82 M4 LCI M4 (2020)

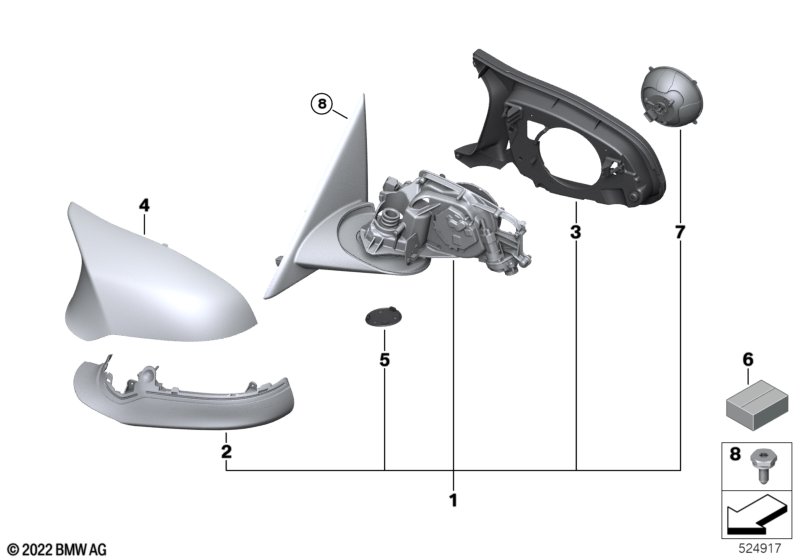

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 4 Series F82 M4 LCI M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Exterior parts, satin-gloss aluminum or High gloss shadow line |
S3L8A=Yes S760A=Yes |
||||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory |
S430A=No S459A=No |
|||||||||
| 01 | Outside mirror without lens, left | SHADOW-LINE M | 1 | 51168059525 | Shop at ECS Tuning | |||||
| 01 | Outside mirror, without lens, right | SHADOW-LINE M | 1 | 51168059526 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Lane-change warning and Surround View |
S430A=Yes S459A=Yes S5AGA=Yes S5DLA=No |
|||||||||
| 01 | Outside mirror w/out glass heated right | 1 | 07/2018 | 51168080448 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror, no lens, heated, left | SHADOW-LINE M | 1 | 51168059533 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Lane-change warning and Surround View |
S430A=Yes S459A=Yes S5AGA=No S5DLA=No |
|||||||||
| 01 | Outside mirror w/out glass heated right | 1 | 07/2018 | 51168080446 | Shop at ECS Tuning | |||||
| 01 | Exterior mirror, no lens, heated, left | SHADOW-LINE M | 1 | 51168059529 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Lane-change warning and Driving Assistant and Surround View |
S430A=Yes S459A=Yes S5AGA=Yes S5ASA=Yes S5DLA=Yes |
|||||||||
| 01 | Outside mirror w/out glass heated right | SHADOW-LINE M | 1 | 07/2018 | 51168080452 | Shop at ECS Tuning | ||||
| 01 | Exterior mirror, no lens, heated, left | SHADOW-LINE M | 1 | 51168059541 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Lane-change warning and Driving Assistant and Surround View |
S430A=Yes S459A=Yes S5AGA=No S5ASA=No S5DLA=Yes |
|||||||||
| 01 | Exterior mirror, no lens, heated, left | SHADOW-LINE M | 1 | 51168059537 | Shop at ECS Tuning | |||||
| 01 | Outside mirror w/out glass heated right | 1 | 07/2018 | 51168080450 | Shop at ECS Tuning | |||||
| 02 | Housing lower section w/ turn signal lft | SHADOW LINE M | 1 | 63137848777 | Shop at ECS Tuning | |||||
| 02 | Housing lower section w/ turn signal rgt | SHADOW LINE M | 1 | 63137848778 | Shop at ECS Tuning | |||||
| For vehicles with Surround View |
S5DLA=Yes |
|||||||||
| 02 | Housing lower section w/ turn signal lft | SHADOW LINE M | 1 | 63137849049 | Shop at ECS Tuning | |||||
| 02 | Housing lower section w/ turn signal rgt | SHADOW LINE M | 1 | 63137849050 | Shop at ECS Tuning | |||||
| 03 | Supporting ring left | SHADOW LINE M | 1 | 51168059553 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | SHADOW LINE M | 1 | 51168059554 | Shop at ECS Tuning | |||||
| For vehicles with Lane-change warning |
S5AGA=Yes |
|||||||||
| 03 | Supporting ring left | SHADOW LINE M | 1 | 51168059561 | Shop at ECS Tuning | |||||
| 03 | Supporting ring right | SHADOW LINE M | 1 | 51168059562 | Shop at ECS Tuning | |||||
| S3BEA = Paint code U668 S3BGA = Paint code U300 |
||||||||||
| 04 | Outside mirror cover cap, left, primed | 1 | 51168059545 | Shop at ECS Tuning | ||||||
| 04 | Outside mirror cover cap, right, primed | 1 | 51168059546 | Shop at ECS Tuning | ||||||
| 05 | Set of covers mirror baseplate | 2 | 51168059353 | Shop at ECS Tuning | ||||||
| 06 | Set of retaining elements | M | 2 | 51168059333 | Shop at ECS Tuning | |||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Lane-change warning |
S430A=Yes S459A=Yes S5AGA=Yes |
|||||||||
| 07 | Drive, outside Memory mirror | 2 | 67137337847 | Shop at ECS Tuning | ||||||
| For vehicles with Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Lane-change warning |
S430A=No S459A=No S5AGA=No |
|||||||||
| 07 | Drive, outside mirror left | 1 | 67137292347 | +core | Shop at ECS Tuning | |||||
| 07 | Drive, outside mirror right | 1 | 67137292348 | +core | Shop at ECS Tuning | |||||
| 08 | Torx screw, self-threading | M6X17 | 6 | 07149231823 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
