Left trunk trim for BMW 4 Series F36 Gran Coupé 420dX (2015)

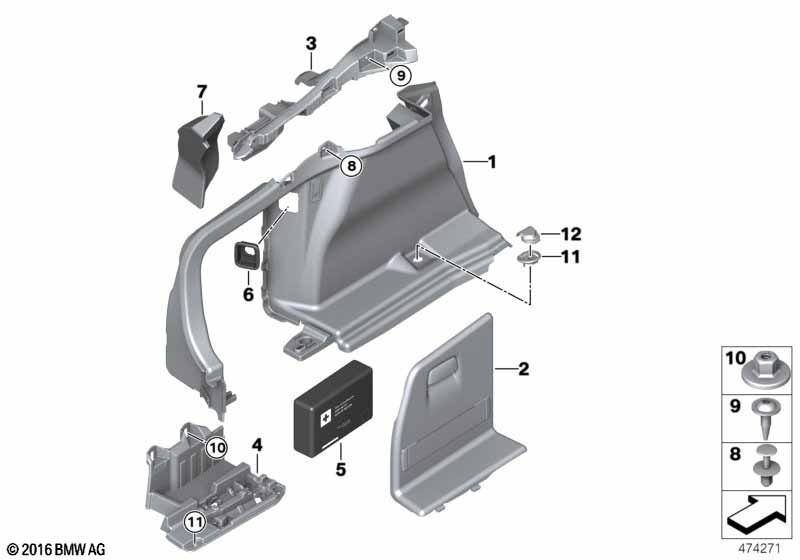

This Left trunk trim technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé 420dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 01 | Trim panel, trunk, front left | ANTHRAZIT | 1 | 51477337223 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=No |
|||||||||
| 01 | Trim panel, trunk, front left | ANTHRAZIT | 1 | 51477337213 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
|||||||||
| 01 | Trim panel, trunk, front left | OYSTER | 1 | 51477337221 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S493A=No CBDH=Yes LCL9=Yes |
|||||||||
| 01 | Trim panel, trunk, front left | OYSTER | 1 | 51477337211 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S493A=Yes CBDH=Yes LCL9=Yes |
|||||||||
| 01 | Trim panel, trunk, front left | OYSTER | 1 | 51477337221 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
S493A=No KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 01 | Trim panel, trunk, front left | BEIGE | 1 | 51477337209 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
S493A=Yes KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 01 | Trim panel, trunk, front left | BEIGE | 1 | 51477337219 | Shop at ECS Tuning | |||||
| 02 | Rear left trunk trim | ANTHRAZIT | 1 | 51477337233 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 02 | Rear left trunk trim | ANTHRAZIT | 1 | 51477337233 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
|||||||||
| 02 | Rear left trunk trim | OYSTER | 1 | 51477337231 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S493A=Yes CBDH=Yes LCL9=Yes |
|||||||||
| 02 | Rear left trunk trim | OYSTER | 1 | 51477337231 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 02 | Rear left trunk trim | BEIGE | 1 | 51477337217 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package and Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
S493A=Yes KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 02 | Rear left trunk trim | BEIGE | 1 | 51477337217 | NoS | Shop at ECS Tuning | ||||
| 03 | Support, shoulder, rear left | 1 | 51477326237 | Shop at ECS Tuning | ||||||
| 04 | Support | 1 | 51477309514 | Shop at ECS Tuning | ||||||
| 05 | First-aid kit, case, black | DIN 13164 | 1 | 71107263439 | Shop at ECS Tuning | |||||
| 06 | Socket mount | SCHWARZ | 1 | 51476964057 | $4.30 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes LCL9=Yes |
|||||||||
| 06 | Socket mount | OYSTER | 1 | 51477249926 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 06 | Socket mount | VENETOBEIGE | 1 | 51477249925 | Shop at ECS Tuning | |||||
| 07 | Seal for outer skin, left | 1 | 51487370306 | Shop at ECS Tuning | ||||||
| 08 | Expanding rivet | D = 8MM | 8 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw with collar | ISA M5X19MM | 10 | 07146964282 | Shop at ECS Tuning | |||||
| 10 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Tie-down ring | 1 | 51477271174 | Shop at ECS Tuning | ||||||
| 12 | Cover, fastening loop | 1 | 51477274764 | Shop at ECS Tuning | ||||||
