Air ducts for BMW 2 Series F46 Gran Tourer 216d (2018)

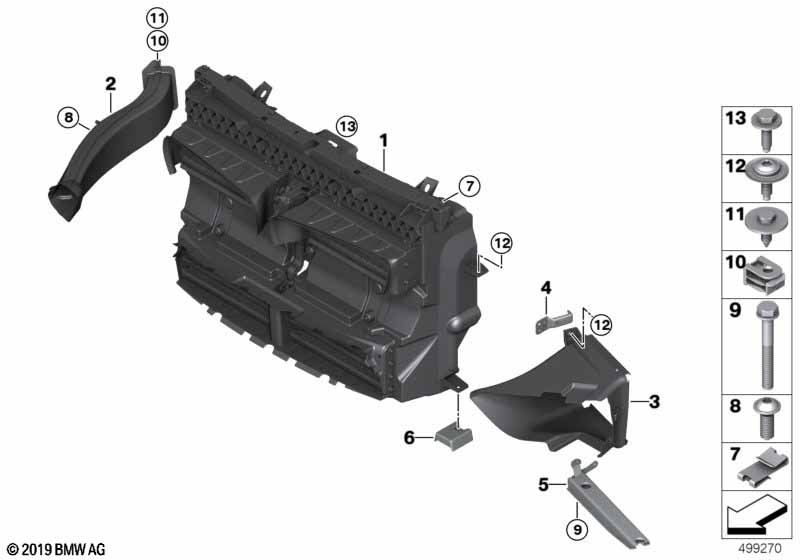

This Air ducts technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Skid plate national versions |
S8SDA=Yes |
|||||||||
| 01 | Air duct | UFS | 1 | 03/2015 | 51747410907 | Shop at ECS Tuning | ||||
| For vehicles with CO2 package and M Aerodynamics package and Skid plate national versions |
S1CBA=No S715A=No S8SDA=Yes |
|||||||||
| 01 | Air duct | UFS | 1 | 03/2015 | 51747410907 | Shop at ECS Tuning | ||||
| For vehicles with Preparations, official vehicle and M Aerodynamics package and Skid plate national versions |
S138A=Yes S715A=No S8SDA=No |
|||||||||
| 01 | Air duct | 1 | 51747301606 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and M Aerodynamics package and Skid plate national versions |
S138A=Yes S715A=Yes S8SDA=Yes |
|||||||||
| 01 | Air duct | M/UFS | 1 | 51748066634 | Shop at ECS Tuning | |||||
| For vehicles with Preparations, official vehicle and CO2 package and M Aerodynamics package and Skid plate national versions |
S138A=No S1CBA=No S715A=Yes S8SDA=Yes |
|||||||||
| 01 | Air duct | M/UFS | 1 | 51748066634 | Shop at ECS Tuning | |||||
| For vehicles with Preparations, official vehicle and CO2 package and M Aerodynamics package and Skid plate national versions |
S138A=No S1CBA=Yes S715A=No S8SDA=No |
|||||||||
| 01 | Air duct with flap control | 1 | 51747338207 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and M Aerodynamics package and Skid plate national versions |
S138A=No S1CBA=No S715A=No S8SDA=No |
|||||||||
| 01 | Air duct | 1 | 51747301606 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and M Aerodynamics package and Skid plate national versions |
S138A=No S1CBA=Yes S715A=Yes S8SDA=Yes |
|||||||||
| 01 | Air duct with flap control | M/UFS | 1 | 51748066659 | Shop at ECS Tuning | |||||
| For vehicles with Preparations, official vehicle and CO2 package and M Aerodynamics package and Skid plate national versions |
S138A=No S1CBA=Yes S715A=Yes S8SDA=No |
|||||||||
| 01 | Air duct with flap control | M | 1 | 51748058553 | Shop at ECS Tuning | |||||
| For vehicles with Preparations, official vehicle and CO2 package and M Aerodynamics package and Skid plate national versions |
S138A=No S1CBA=Yes S715A=No S8SDA=Yes |
|||||||||
| 01 | Air duct with flap control | UFS | 1 | 51747410908 | Shop at ECS Tuning | |||||
| For vehicles with Preparations, official vehicle and CO2 package and Automatic transmission and M Aerodynamics package and Skid plate national versions |
S138A=No S1CBA=Yes S205A=No S715A=No S8SDA=No |
|||||||||
| 01 | Air duct with flap control | 1 | 51747338207 | Shop at ECS Tuning | ||||||
| For vehicles with Preparations, official vehicle and CO2 package and Automatic transmission and M Aerodynamics package and Skid plate national versions |
S138A=No S1CBA=Yes S205A=No S715A=Yes S8SDA=No |
|||||||||
| 01 | Air duct with flap control | M | 1 | 51748058553 | Shop at ECS Tuning | |||||
| 07 | S-clamp | 4 | 07147305866 | Shop at ECS Tuning | ||||||
| 08 | Fillister head screw | M6X16-ZNNIV-SI | 2 | 07149227852 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X55-Z1 | 2 | 07119904526 | $0.56 | Shop at ECS Tuning | ||||
| 10 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 10 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | TS5X17 SW8 D=22 | 5 | 07149126886 | Shop at ECS Tuning | |||||
| 12 | Oval-head screw with washer | M6X20 | 5 | 04/2018 | 07147406384 | ENDED | Shop at ECS Tuning | |||
| 12 | Oval-head screw with spring washer | M6X20 | 5 | 07145A48F73 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M6X20 | 1 | 07119908004 | Shop at ECS Tuning | |||||
