Mounting parts, door trim, rear for BMW 4 Series F36 Gran Coupé LCI 435dX (2020)

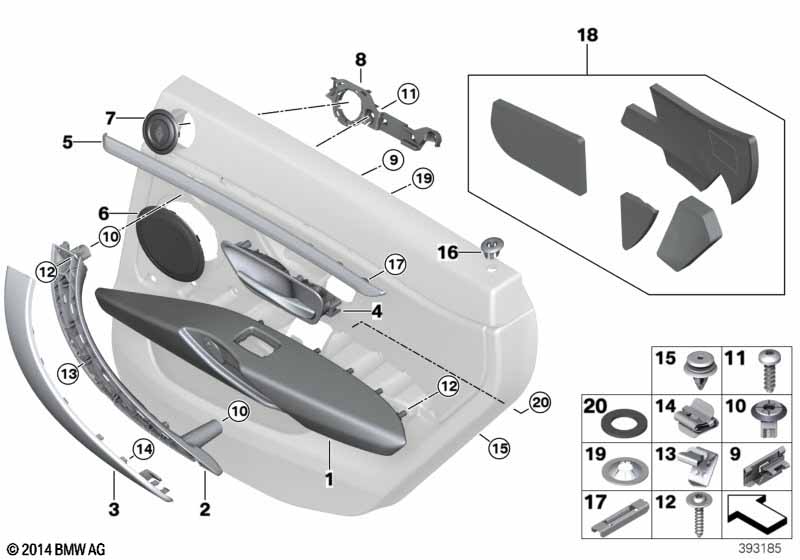

This Mounting parts, door trim, rear technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé LCI 435dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Armrest in leather, rear left | EVERESTGRAU | 1 | 51427368385 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest in leather, rear right | EVERESTGRAU | 1 | 51427368386 | Shop at ECS Tuning | |||||
| For vehicles with Leath.Dakota/elfenbein-white/acc.oyster |
LCFH=Yes |
|||||||||
| 01 | Armrest in leather, rear left | ELFENBEINWEISS | 1 | 51427383457 | Shop at ECS Tuning | |||||
| 01 | Armrest in leather, rear right | ELFENBEINWEISS | 1 | 51427383458 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota / mocca |
LCMY=Yes |
|||||||||
| 01 | Armrest in leather, rear left | MOKKA | 1 | 51429482585 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest in leather, rear right | MOKKA | 1 | 51429482586 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/nacht-blue/accent oyster |
LCTX=Yes |
|||||||||
| 01 | Armrest, rear left | BLAU/OYSTER | 1 | 51427463943 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, rear right | BLAU/OYSTER | 1 | 51427463944 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/sattel-braun/excl. seam |
LCLX=Yes |
|||||||||
| 01 | Armrest in leather, rear left | SATTELBRAUN | 1 | 51427368383 | Shop at ECS Tuning | |||||
| 01 | Armrest in leather, rear right | SATTELBRAUN | 1 | 51427368384 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/korall-rot/akzent-schwarz |
LCL5=Yes |
|||||||||
| 01 | Armrest, rear left | KORALLROT | 1 | 51427368377 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest in leather, rear right | KORALLROT | 1 | 51427368378 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/veneto-beige |
KCDF=Yes |
|||||||||
| 01 | Armrest, rear left | VENETOBEIGE | 1 | 51427346415 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, rear right | VENETOBEIGE | 1 | 51427346416 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Fabric/leather Breeze/oyster/black |
CBDH=Yes CBOP=Yes |
|||||||||
| 01 | Armrest, rear left | OYSTER | 1 | 51427346417 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, rear right | OYSTER | 1 | 51427346418 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/cognac/accent brown or Leather Dakota/cognac/accent brown |
LCRY=Yes LCRZ=Yes |
|||||||||
| 01 | Armrest in leather, rear left | COGNAC | 1 | 51427463945 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest in leather, rear right | COGNAC | 1 | 51427463946 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
LCDF=Yes LCLY=Yes |
|||||||||
| 01 | Armrest in leather, rear left | VENETOBEIGE | 1 | 51427368381 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest in leather, rear right | VENETOBEIGE | 1 | 51427368382 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/oyster/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark |
LCL9=Yes LCOM=Yes |
|||||||||
| 01 | Armrest in leather, rear left | OYSTER | 1 | 51427368379 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest in leather, rear right | OYSTER | 1 | 51427368380 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Cloth Hexagon/Alcantara/anthracite or Leather Dakota/black/akzent-rot or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
HAAT=Yes LCL3=Yes LCLZ=Yes LCSW=Yes |
|||||||||
| 01 | Armrest in leather, rear left | SCHWARZ | 1 | 51427368375 | Shop at ECS Tuning | |||||
| 01 | Armrest in leather, rear right | SCHWARZ | 1 | 51427368376 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/Leather Breeze/anthracite or Stofff corner/anthrazit/Akzent grau or Stofff corner/anthrazit/Akzent rot or Sensatec/black/Accent red or Sensatec/black or Sensatec/black |
BDAT=Yes BEL1=Yes BEL2=Yes CBAT=Yes CCL1=Yes CCL2=Yes KCL3=Yes KCSM=Yes KCSW=Yes |
|||||||||
| 01 | Armrest, rear left | SCHWARZ | 1 | 51427346413 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, rear right | SCHWARZ | 1 | 51427346414 | NoS | Shop at ECS Tuning | ||||
| 02 | Support, pull strap, left | SCHWARZ | 1 | 51417279311 | Shop at ECS Tuning | |||||
| 02 | Support, pull strap, right | SCHWARZ | 1 | 51417279312 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 02 | Support, pull strap, left | VENETOBEIGE | 1 | 51417279315 | Shop at ECS Tuning | |||||
| 02 | Support, pull strap, right | VENETOBEIGE | 1 | 51417279316 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Fabric/leather Breeze/oyster/black or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes CBOP=Yes LCL9=Yes LCOM=Yes |
|||||||||
| 02 | Support, pull strap, left | OYSTER | 1 | 51417279313 | Shop at ECS Tuning | |||||
| 02 | Support, pull strap, right | OYSTER | 1 | 51417279314 | Shop at ECS Tuning | |||||
| 03 | Trim cover, pull strap, left | SATINSILBER | 1 | 51417260085 | Shop at ECS Tuning | |||||
| 03 | Trim cover, pull strap, right | SATINSILBER | 1 | 51417260086 | Shop at ECS Tuning | |||||
| For vehicles with Fine woodgrain version Fineline Pure |
S4DDA=Yes |
|||||||||
| 03 | Cover, pull-handle, wood, Fineline, left | BEIGE | 1 | 51417271603 | Shop at ECS Tuning | |||||
| 03 | Cover, pull-handle, wood Fineline, right | BEIGE | 1 | 51417271604 | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, Pearl |
S4DTA=Yes |
|||||||||
| 03 | Trim cover, pull strap, left | PEARL | 1 | 51417260083 | Shop at ECS Tuning | |||||
| 03 | Trim cover, pull strap, right | PEARL | 1 | 51417260084 | Shop at ECS Tuning | |||||
| For vehicles with Al carbon dark acc.pearl luster chrome |
S4MNA=Yes |
|||||||||
| 03 | Trim cover, pull strap, left | CARBONSCHLIFF | 1 | 51417460301 | Shop at ECS Tuning | |||||
| 03 | Trim cover, pull strap, right | CARBONSCHLIFF | 1 | 51417460302 | Shop at ECS Tuning | |||||
| For vehicles with Interieurleisten Pearl dunkel |
S4DZA=Yes |
|||||||||
| 03 | Trim cover, pull strap, left | PEARL DKL. | 1 | 51417345081 | Shop at ECS Tuning | |||||
| 03 | Trim cover, pull strap, right | PEARL DKL. | 1 | 51417345082 | Shop at ECS Tuning | |||||
| For vehicles with Fine woodgrain vers., Fineline anthrac. or Fine wood 'Fineline' anthracite/accent |
S4CEA=Yes S4FUA=Yes |
|||||||||
| 03 | Cover, pull-handle, wood, Fineline, left | ANTHRAZIT | 1 | 51417275491 | Shop at ECS Tuning | |||||
| 03 | Cover, pull-handle, wood Fineline, right | ANTHRAZIT | 1 | 51417275492 | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings Carbon Fibre and Interior trims Al carbon structure |
S4MCA=Yes S4WNA=Yes |
|||||||||
| 03 | Trim cover, pull strap, left | PIANOLACK SW | 1 | 07/2019 | 51417985007 | NoS | Shop at ECS Tuning | |||
| 03 | Trim cover, pull strap, right | PIANOLACK SW | 1 | 07/2019 | 51417985008 | NoS | Shop at ECS Tuning | |||
| For vehicles with Fine woodgrain version, ash grain or Ashgrain Perlglanz chrome accent |
S4EZA=Yes S4GAA=Yes |
|||||||||
| 03 | Trim cover, pull strap, left | HOLZ | 1 | 51417348941 | Shop at ECS Tuning | |||||
| 03 | Trim cover, pull strap, right | HOLZ | 1 | 51417348942 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim strips, alu, brushed, fine or Alu, brushed, high-gloss black accent or Alu, brushed, korallrot accent |
S4ADA=Yes S4FTA=Yes S4LTA=Yes |
|||||||||
| 03 | Cover, pull-handle, aluminum, left | LÄNGSSCHLIFF | 1 | 51417260081 | +core | Shop at ECS Tuning | ||||
| 03 | Cover, pull-handle, aluminum, right | LÄNGSSCHLIFF | 1 | 51417260082 | +core | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, aluminum hexagon and Alu, hexagon, matt blue accent and Alu, hexagon, high-gloss black accent |
S4MRA=Yes S4WFA=Yes S4WGA=Yes |
|||||||||
| 03 | Cover, pull-handle, aluminum, left | ALU HEXAGON | 1 | 51418064249 | Shop at ECS Tuning | |||||
| 03 | Cover, pull-handle, aluminum, right | ALU HEXAGON | 1 | 51418064250 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss and Black, highgloss Perlglanz chrome accent and Black high-gloss, korall-rot accent |
S4ATA=Yes S4LUA=Yes S4LVA=Yes |
|||||||||
| 03 | Trim cover, pull strap, left | PIANO BLACK | 1 | 51417275487 | Shop at ECS Tuning | |||||
| 03 | Trim cover, pull strap, right | PIANO BLACK | 1 | 51417275488 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim burr walnut or Fine woodgrain, nutwood/inlays or Fine wood 'Fineline' walnut/acc. strip or Walnut root Perlglanz chrome accent |
S4ABA=Yes S4B8A=Yes S4FWA=Yes S4GBA=Yes |
|||||||||
| 03 | Cover, pull-handle, wood, walnut, left | BRAUN | 1 | 51417260079 | Shop at ECS Tuning | |||||
| 03 | Cover, pull-handle, wood, walnut, right | BRAUN | 1 | 51417260080 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather 'Dakota' venetobeige/oyster acc. or Leather Dakota/veneto-beige/excl. seam |
KCDF=Yes LCDF=Yes LCFJ=Yes LCLY=Yes |
|||||||||
| 04 | Door handle, inside left | VENETOBEIGE | 1 | 51417279345 | Shop at ECS Tuning | |||||
| 04 | Door handle inner right | VENETOBEIGE | 1 | 51417279346 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/Leather Breeze/oyster/oyster or Fabric/leather Breeze/oyster/black or Leather Dakota/oyster/Accent oyster dark or Leather Dakota/oyster/Accent oyster dark |
CBDH=Yes CBOP=Yes LCL9=Yes LCOM=Yes |
|||||||||
| 04 | Door handle, inside left | OYSTER | 1 | 51417279343 | Shop at ECS Tuning | |||||
| 04 | Door handle inner right | OYSTER | 1 | 51417279344 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/Leather Breeze/anthracite or Cloth Hexagon/Alcantara/anthracite or Sensatec/black/Accent red or Sensatec/black or Sensatec/black or Leather "Dakota/elfenbein-weiss" or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
BDAT=Yes BEL1=Yes BEL2=Yes CBAT=Yes HAAT=Yes KCL3=Yes KCSM=Yes KCSW=Yes LCEW=Yes LCL3=Yes LCL5=Yes LCLX=Yes LCLZ=Yes LCSW=Yes |
|||||||||
| 04 | Door handle, inside left | SCHWARZ | 1 | 51417279341 | Shop at ECS Tuning | |||||
| 04 | Door handle inner right | SCHWARZ | 1 | 51417279342 | Shop at ECS Tuning | |||||
| For vehicles with Accent moldings, blue metallic matt and Alu, hexagon, matt blue accent |
S4DXA=Yes S4WFA=Yes |
|||||||||
| 05 | Accent molding, rear left | ESTORILBLAU | 1 | 51428059285 | Shop at ECS Tuning | |||||
| 05 | Accent molding, rear left | ESTORILBLAU | 1 | 51428059286 | Shop at ECS Tuning | |||||
| For vehicles with Accent strips, korall-rot, matt or Alu, brushed, korallrot accent or Black high-gloss, korall-rot accent |
S4DNA=Yes S4LTA=Yes S4LVA=Yes |
|||||||||
| 05 | Accent molding, rear left | KORALLROT | 1 | 51427346991 | Shop at ECS Tuning | |||||
| 05 | Accent modling, rear right | KORALLROT | 1 | 51427346992 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Accent strips, black, high-gloss and Alu, brushed, high-gloss black accent and Alu, hexagon, high-gloss black accent and M Aerodynamics package |
P337A=Yes P7ACA=Yes P7S1A=Yes P7S2A=Yes S4DLA=Yes S4FTA=Yes S4WGA=Yes S715A=Yes |
|||||||||
| 05 | Accent molding, rear left | SCHWARZ HOCHGL. | 1 | 51427346987 | Shop at ECS Tuning | |||||
| 05 | Accent modling, rear right | SCHWARZ HOCHGL. | 1 | 51427346988 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Light package and M Aerodynamics package and Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
P337A=No P7ACA=No P7S1A=No P7S2A=No S563A=Yes S715A=No KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 05 | Accent molding, rear left | VENETOBEIGE | 1 | 51427349527 | Shop at ECS Tuning | |||||
| 05 | Accent modling, rear right | VENETOBEIGE | 1 | 51427349528 | NoS | Shop at ECS Tuning | ||||
| 05 | Accent molding, rear left | PERLGLANZ CHROM | 1 | 51427346989 | Shop at ECS Tuning | |||||
| 05 | Accent modling, rear right | PERLGLANZ CHROM | 1 | 51427346990 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Modern Line and Luxury Line and Light package and M Aerodynamics package and Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/Leather Breeze/anthracite or Fabric/leather Breeze/oyster/black or Sensatec/black/Accent red or Sensatec/black or Sensatec/black or Leather "Dakota/elfenbein-weiss" or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Accent oyster dark or Leather "Dakota"/schwarz |
P337A=No P7ACA=No P7S1A=No P7S2A=No S563A=Yes S715A=No BDAT=Yes BEL1=Yes BEL2=Yes CBAT=Yes CBOP=Yes KCL3=Yes KCSM=Yes KCSW=Yes LCEW=Yes LCL3=Yes LCL5=Yes LCLX=Yes LCLZ=Yes LCOM=Yes LCSW=Yes |
|||||||||
| 05 | Accent molding, rear left | SCHWARZ | 1 | 51427349525 | Shop at ECS Tuning | |||||
| 05 | Accent modling, rear right | SCHWARZ | 1 | 51427349526 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S688A=No CBDH=Yes LCL9=Yes |
|||||||||
| 06 | Loudspeaker cover | OYSTER | 2 | 51417279317 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S688A=Yes CBDH=Yes LCL9=Yes |
|||||||||
| 06 | Loudspeaker cover | OYSTER | 2 | 51417279320 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
S688A=Yes KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 06 | Loudspeaker cover | VENETOBEIGE | 2 | 51417279321 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
S688A=No KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 06 | Loudspeaker cover | VENETOBEIGE | 2 | 51417279318 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/Leather Breeze/anthracite or Fabric/leather Breeze/oyster/black or Cloth Hexagon/Alcantara/anthracite or Sensatec/black/Accent red or Sensatec/black or Sensatec/black or Leather "Dakota/elfenbein-weiss" or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Accent oyster dark or Leather "Dakota"/schwarz |
S688A=No BDAT=Yes BEL1=Yes BEL2=Yes CBAT=Yes CBOP=Yes HAAT=Yes KCL3=Yes KCSM=Yes KCSW=Yes LCEW=Yes LCL3=Yes LCL5=Yes LCLX=Yes LCLZ=Yes LCOM=Yes LCSW=Yes |
|||||||||
| 06 | Loudspeaker cover | SCHWARZ | 2 | 51417279294 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/Leather Breeze/anthracite or Fabric/leather Breeze/oyster/black or Cloth Hexagon/Alcantara/anthracite or Sensatec/black/Accent red or Sensatec/black or Sensatec/black or Leather "Dakota/elfenbein-weiss" or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Accent oyster dark or Leather "Dakota"/schwarz |
S688A=Yes BDAT=Yes BEL1=Yes BEL2=Yes CBAT=Yes CBOP=Yes HAAT=Yes KCL3=Yes KCSM=Yes KCSW=Yes LCEW=Yes LCL3=Yes LCL5=Yes LCLX=Yes LCLZ=Yes LCOM=Yes LCSW=Yes |
|||||||||
| 06 | Loudspeaker cover | SCHWARZ | 2 | 51417279319 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Fabric/Leather Breeze/oyster/oyster or Leather Dakota/oyster/Accent oyster dark |
S688A=Yes CBDH=Yes LCL9=Yes |
|||||||||
| 07 | Cover, speaker, tweeter, rear | OYSTER | 2 | 51427380007 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Sensatec/veneto-beige or Leather "Dakota/veneto-beige" or Leather Dakota/veneto-beige/excl. seam |
S688A=Yes KCDF=Yes LCDF=Yes LCLY=Yes |
|||||||||
| 07 | Cover, speaker, tweeter, rear | VENETOBEIGE | 2 | 51427380008 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Fabric Move/anthracite or Fabric Track/anthracite/akzent-grau or Fabric Track/anthracite/akzent-rot or Fabric/Leather Breeze/anthracite or Fabric/leather Breeze/oyster/black or Cloth Hexagon/Alcantara/anthracite or Sensatec/black/Accent red or Sensatec/black or Sensatec/black or Leather "Dakota/elfenbein-weiss" or Leather Dakota/black/akzent-rot or Leather Dakota/korall-rot/akzent-schwarz or Leather Dakota/sattel-braun/excl. seam or Leather Dakota/black/excl. seam or Leather Dakota/oyster/Accent oyster dark or Leather "Dakota"/schwarz |
S688A=Yes BDAT=Yes BEL1=Yes BEL2=Yes CBAT=Yes CBOP=Yes HAAT=Yes KCL3=Yes KCSM=Yes KCSW=Yes LCEW=Yes LCL3=Yes LCL5=Yes LCLX=Yes LCLZ=Yes LCOM=Yes LCSW=Yes |
|||||||||
| 07 | Cover, speaker, tweeter, rear | SCHWARZ | 2 | 51427380000 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 08 | Adaptor left | 1 | 51447342189 | Shop at ECS Tuning | ||||||
| 08 | Adaptor right | 1 | 51447342190 | Shop at ECS Tuning | ||||||
| 09 | Clamp | 0,8MM | 10 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 09 | Clamp | 0,8MM | 10 | 51429146595 | $1.23 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | 4 | 07147265039 | Shop at ECS Tuning | ||||||
| 11 | Torx-bolt for plastic material | ISA TS5X12 | 26 | 07147157955 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Torx-bolt for plastic material | 5.2X20 ISA | 4 | 07147277470 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | TS4X10 ISA | 18 | 07147270744 | Shop at ECS Tuning | |||||
| 13 | Clamp | 4 | 51417367721 | Shop at ECS Tuning | ||||||
| 14 | Crash clamp | 4 | 07147381506 | Shop at ECS Tuning | ||||||
| 15 | Clip Natur | 8 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 16 | Trim cover for lock button, rear | 2 | 51427388498 | Shop at ECS Tuning | ||||||
| 17 | Clamp | 14 | 07147332700 | Shop at ECS Tuning | ||||||
| 18 | Acoustic mat, left rear door trim panel | 1 | 51427402555 | Shop at ECS Tuning | ||||||
| 18 | Acoustic mat, right rear door trim panel | 1 | 51427402556 | Shop at ECS Tuning | ||||||
| 19 | Circlip | 8 | 51427421319 | Shop at ECS Tuning | ||||||
| 20 | Gasket ring | 2 | 51417421317 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F36 Gran Coupé LCI 435dX Mounting parts, door trim, rear?
- This technical diagram illustrates the Mounting parts, door trim, rear within the Vehicle trim group for the 4 Series F36 Gran Coupé LCI 435dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Armrest in leather, rear left (Part #51427368385).
- Which models use the hardware listed in this Mounting parts, door trim, rear?
- The hardware and components featured in the Mounting parts, door trim, rear are specific to the 4 Series F36 Gran Coupé LCI 435dX produced during 2020. These technical specifications ensure that parts like the Armrest in leather, rear left (51427368385) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mounting parts, door trim, rear assembly?
- Each item in the Mounting parts, door trim, rear corresponds to the numbered list below the illustration. For the 4 Series F36 Gran Coupé LCI 435dX, you can identify the Armrest in leather, rear left by locating its position on the schematic, which then links to the official BMW part number 51427368385 for the Vehicle trim section.
