Mounting parts, I-panel, top for BMW 2 Series G87 M2 M2 (2025)

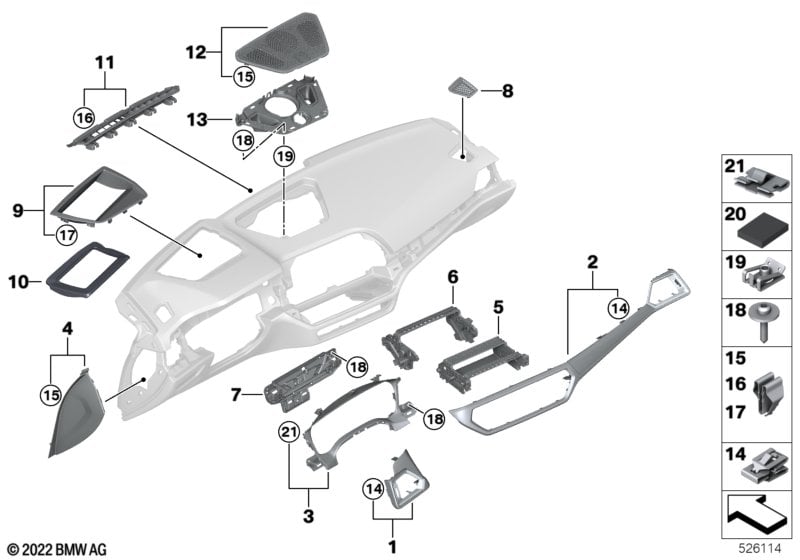

This Mounting parts, I-panel, top technical drawing provides a detailed breakdown of the assembly for the 2 Series G87 M2 M2. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim for I-panel, driver side | PERLGLANZ CHROM | 1 | 51459623075 | NoS | Shop at ECS Tuning | ||||
| 02 | Trim instr.panel glossy black passenger | 1 | 51459623079 | NoS | Shop at ECS Tuning | |||||
| For vehicles with INT. TRIM AL. RHOMBICLE ANTHR. |
S4LNA=Yes |
|||||||||
| 02 | Cov.pan.inst.pan.Al.Rhombicle fr.pass. | 1 | 51459625716 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings Carbon Fibre and Ambient interior lighting |
S4MCA=Yes S4URA=Yes |
|||||||||
| 02 | Instrument panel trim, Carbon, passenger | 1 | 51459503704 | NoS | Shop at ECS Tuning | |||||
| 04 | Trim panel, I-panel, outer left | 1 | 51456805559 | NoS | Shop at ECS Tuning | |||||
| 04 | Trim panel, I-panel, outer left | 1 | 51459875502 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Passenger airbag deactivation |
S5DAA=Yes |
|||||||||
| 04 | Trim dashboard "Airbag off" right | 1 | 51456805562 | NoS | Shop at ECS Tuning | |||||
| 04 | Trim dashboard "Airbag off" right | 1 | 51459875505 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Passenger airbag deactivation |
S5DAA=No |
|||||||||
| 04 | Trim panel, I-panel, outer right | 1 | 51456805560 | Shop at ECS Tuning | ||||||
| 04 | Trim panel, I-panel, outer right | 1 | 51459875503 | NoS | Shop at ECS Tuning | |||||
| 05 | Adapter frame | 1 | 51456821238 | NoS | Shop at ECS Tuning | |||||
| 06 | Module carrier, center console | 1 | 51456811443 | NoS | Shop at ECS Tuning | |||||
| For vehicles with BMW Live dashboard Professional |
S6U3A=No |
|||||||||
| 06 | Adapter frame | 1 | 51457941018 | NoS | Shop at ECS Tuning | |||||
| 07 | Control unit bracket | 1 | 51459622337 | NoS | Shop at ECS Tuning | |||||
| 08 | Trim side window defroster kit | 1 | 51459621911 | NoS | Shop at ECS Tuning | |||||
| For vehicles with BMW Live dashboard Professional |
S6U3A=Yes |
|||||||||
| 09 | Trim piece for head-up display | 1 | 51459621898 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Head-up display |
S610A=Yes |
|||||||||
| 10 | Sound insulation, head-up display | 1 | 51489621868 | NoS | Shop at ECS Tuning | |||||
| 12 | Cover, center speaker | 1 | 07/2022 | 51459621896 | NoS | Shop at ECS Tuning | ||||
| 13 | Support center speaker | 1 | 07/2022 | 51459621890 | NoS | Shop at ECS Tuning | ||||
| 14 | Mounting clip | 9 | 07149365277 | Shop at ECS Tuning | ||||||
| 15 | Clamp | 14 | 07147468646 | Shop at ECS Tuning | ||||||
| 16 | Clamp | 5 | 07147321144 | Shop at ECS Tuning | ||||||
| 17 | Clamp | 3 | 07147321144 | Shop at ECS Tuning | ||||||
| 18 | Combi. fillister head self-tapping screw | 6 | 07149323312 | NoS | Shop at ECS Tuning | |||||
| 19 | C-clip sheet metal nut | 6 | 07149496755 | NoS | Shop at ECS Tuning | |||||
| 20 | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning | ||||||
| 21 | U-clamp | 8 | 51459496283 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
